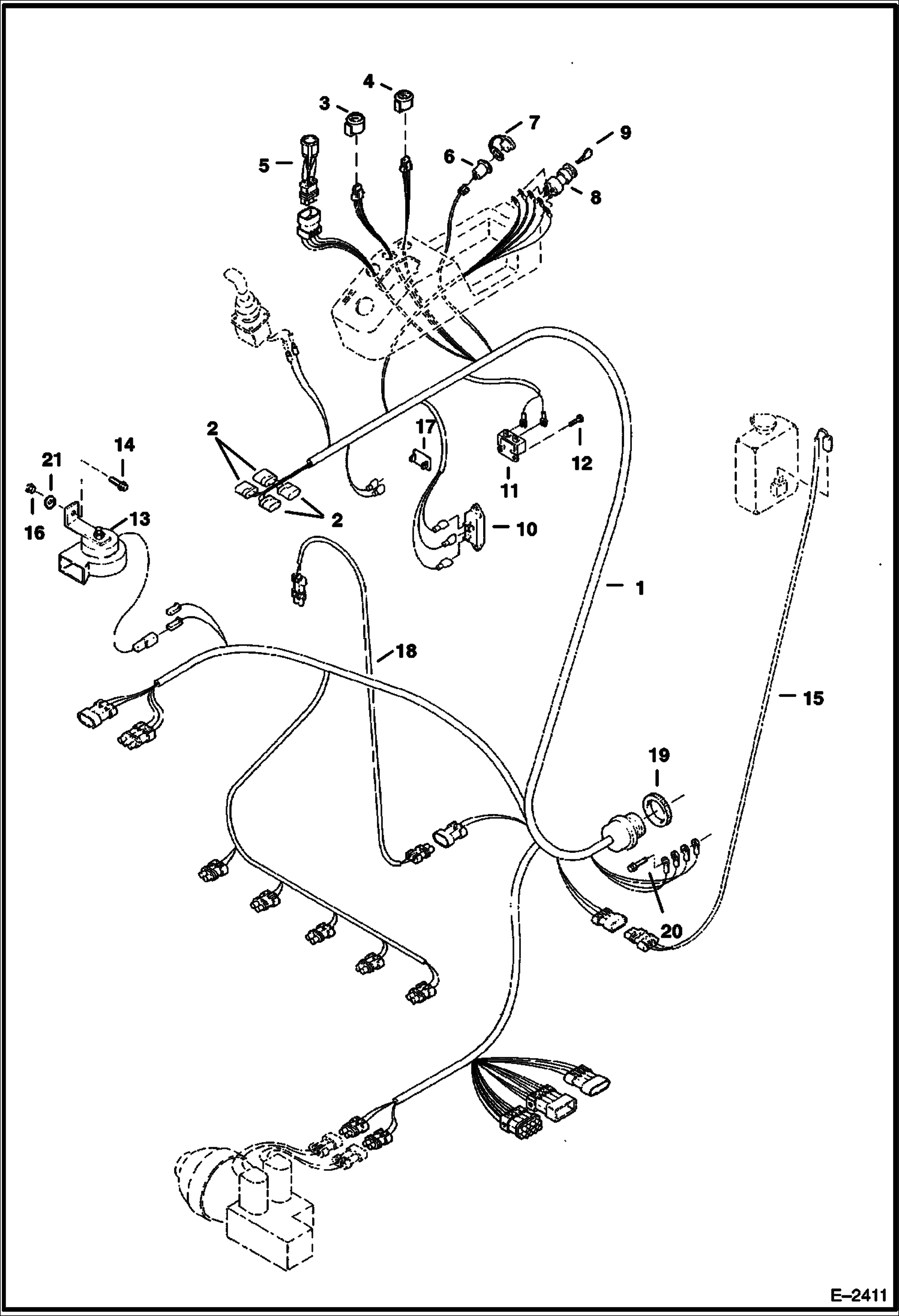

Запчасти Bobcat 328 ELECTRICAL SYSTEM (Right Hand Console) (S/N 514014900 & Above and 516611001 & Above) ELECTRICAL SYSTEM

1

6715161

HARNESS R.H. Console - W/Ref. 2

2

6567537

DIODE

3

6671525

GAUGE See BTI399 Fuel

4

6671524

GAUGE See BTI399 Water Temperature

5

6671526

GAUGE See BTI399 Warning Lights

6

6664223

OUTLET Electrical Accessory

7

6664224

CAP Electrical Outlet

8

6666548

SWITCH Key Start

9

6587458

KEY

10

6673122

TIMER Start-up check, fuel level, oil pressure & water temperature - Was 6668736 - A

11

6644960

BUZZER Warning - activates with water temperature & oil pressure lights

12

6589675

SCREW

13

6665105

ALARM

14

26GM8016

SCREW

15

6715162

HARNESS Washer tank

16

1DM8

NUT

17

6665314

PLUG switch hole - if equipped - Was 6719038 - A

18

6588351

HARNESS Fuel Level

19

6664972

NUT Harness

20

26GM10020

BOLT

21

10EM80

WASHER
