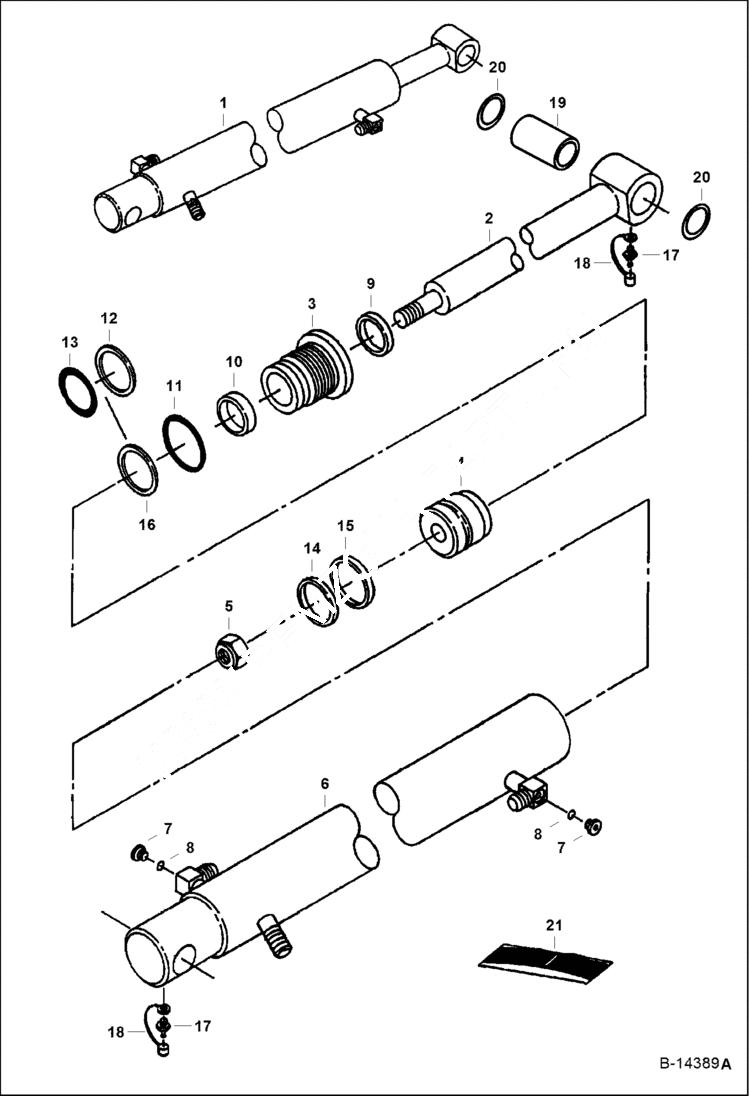

Запчасти Bobcat 328 BUCKET CYLINDER (W/ X-Change Standard) (S/N 514017052 & Above and 516611767 & Above) HYDRAULIC SYSTEM

1

6806371

CYLINDER W/Ref. 2 -15 - Also Order Ref. 19 & (2) Ref. 20

2

6806025

ROD Also Order Ref. 19 & (2) Ref. 20

3

6806040

HEAD

4

6806375

PISTON

5

92D16

NUT

6

6806026

HOUSING W/Ref. 7 & 8

7

90KV5

PLUG W/Ref. 8

8

95K6

O'RING

9

6666543

WIPER, ROD CYL

10

6667325

SEAL

11

82K230

O-RING Was 58K000230B - A

12

73K228

BACK-UP RING Back-up

13

25K40208

O RING 10 Was 54K40208 - B

14

25K30202

O RING 10 Was 54K30202 - B

15

1522534

SEAL

16

7008778

SEAL, QUAD

17

10H25

FITTING, GREASE 5

18

6652943

COVER grease fitting

19

6804139

BUSHING

20

6652915

SEAL, OIL Dust

21

7137868

SEAL KIT W/Ref. 5, 9, 10, 11, & 14-16 - Was 6806862 - A
