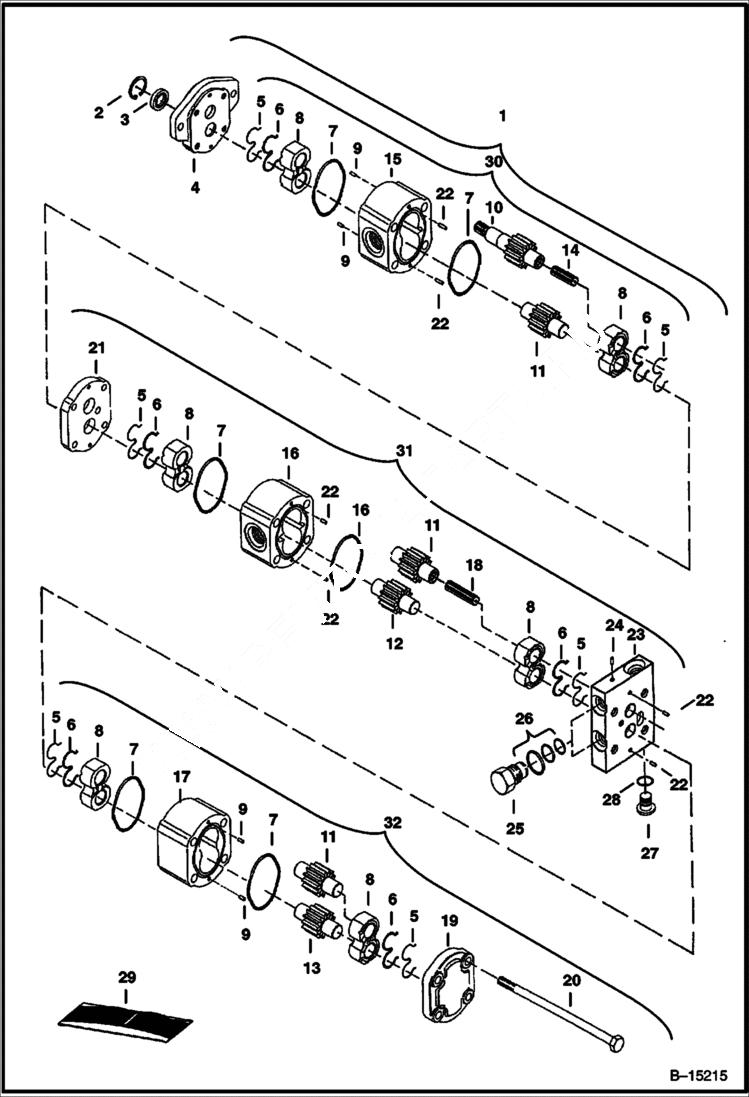

Запчасти Bobcat 328 TRIPLE GEAR PUMP (With Check Valve) (S/N 514014900-16895 and 516611001-11657) HYDRAULIC SYSTEM

1

PUMP NLA - assy. - threaded - W/Refs. 2-28 - Order 6676971 - Also Order 6807346 tee (3), 58K000210B o-ring (3), 73G000520B bolt (12), 4E000005B washer (12), 19J000008B clamp (6) - Was 6674941 - A

2

6662925

SNAP RING

3

6662926

SEAL Incl. W/Ref. 29

4

6663978

COVER front

5

BACK-UP RING NSS - Incl. W/Ref. 29

6

SEAL NSS - Incl. W/Ref. 29

7

O-RING NSS - Incl. W/Ref. 29

8

6663979

BEARING

9

6662929

DOWEL PIN .403 inch (10,25mm) long

10

GEAR NLA - Drive - incl. W/Ref. 30

11

GEAR NLA - Idler - incl. W/Ref. 30-32

12

GEAR NLA - Center pump - incl. W/Ref. 31

13

GEAR NLA - End pump - incl. W/Ref. 32

14

6663984

SHAFT Drive

15

HOUSING NLA - Front - Order Ref. 30

16

HOUSING NLA - Center - Order Ref. 31

17

HOUSING NLA - End - Order Ref. 32

18

6673142

PLATE Drive - Was 6663142 - A

19

6662932

COVER End

20

BOLT NLA - (10mm X 250mm) - Was 6673134 - A

21

6663989

PLATE

22

6665621

DOWEL PIN .716 inch (18,20mm) long

23

6673135

BLOCK Check valve

24

6673137

PLUG

25

6673136

CHECK VALVE Assy. - W/Ref. 26

26

6672515

KIT, SEAL Was 6673140 - A

27

6673138

PLUG W/Ref. 28

28

6673141

O-RING

29

6673139

SEAL KIT Includes Refs. 3 (1), 5 (6), 6 (6), 7 (6), 26 (2) & 28 (1)

30

SECTION KIT NLA - Front - incl. Refs. 5 (2), 6 (2) - Was 6673129 - A

31

SECTION KIT NLA - Center - incl. Refs. 5 (2), 6 (2), 7 (2), 8 (2), 9 (2), 11 (1), 12 (1), 14 (1), 16 (1), 18 (1) & 22 (2) - Order 6676971 - Was 6673133 - A

32

SECTION KIT NLA - End - incl. Refs. 5 (2), 6 (2), 7 (2), 8 (2), 9 (2), 11 (1) & 13 (1), 17 (1) & 18 (1) - Order 6676971 pump - Was 6673132 - A
