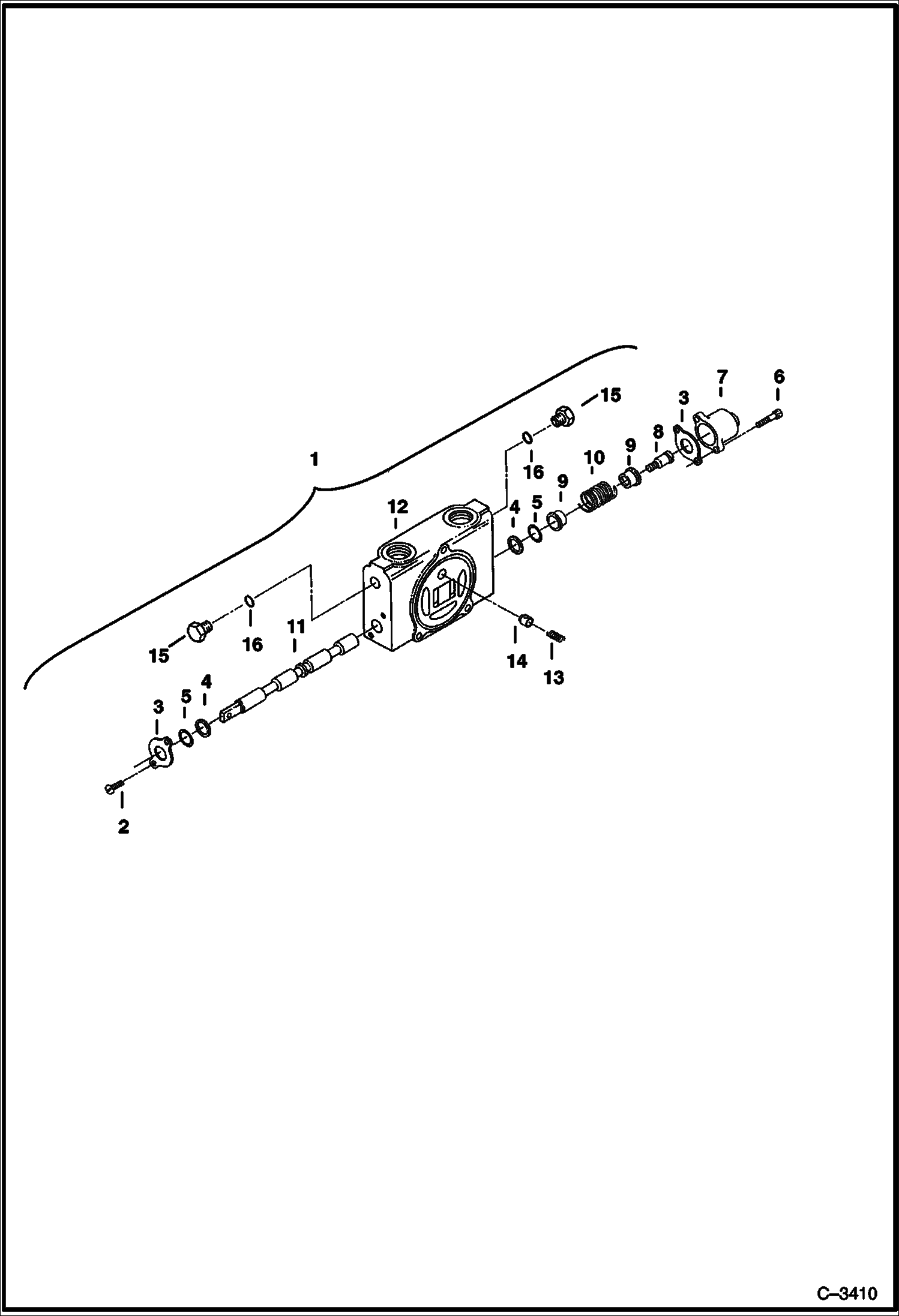

Запчасти Bobcat 328 VALVE SECTION (Auxiliary) HYDRAULIC SYSTEM

1

VALVE NLA - Section - Auxiliary - Order 6670568 - W/Ref. 2-16

1

6670568

VALVE Section - Auxiliary - W/Refs. 2 - 16

2

93G406

SCREW

3

948016

PLATE

4

6668972

O-RING

5

948021

SEAL wiper

6

73G424

SCREW

7

948192

CAP

8

6665434

BOLT

9

948017

SEAT Spring

10

948018

SPRING

11

SPOOL NSS - Order Ref. 1

12

HOUSING NSS - Order Ref. 1

13

6630966

SPRING

14

6630965

POPPET

15

6631050

PLUG

16

79K10

O RING 10
