Запчасти Bobcat 328 VALVE SECTION (Bucket) HYDRAULIC SYSTEM

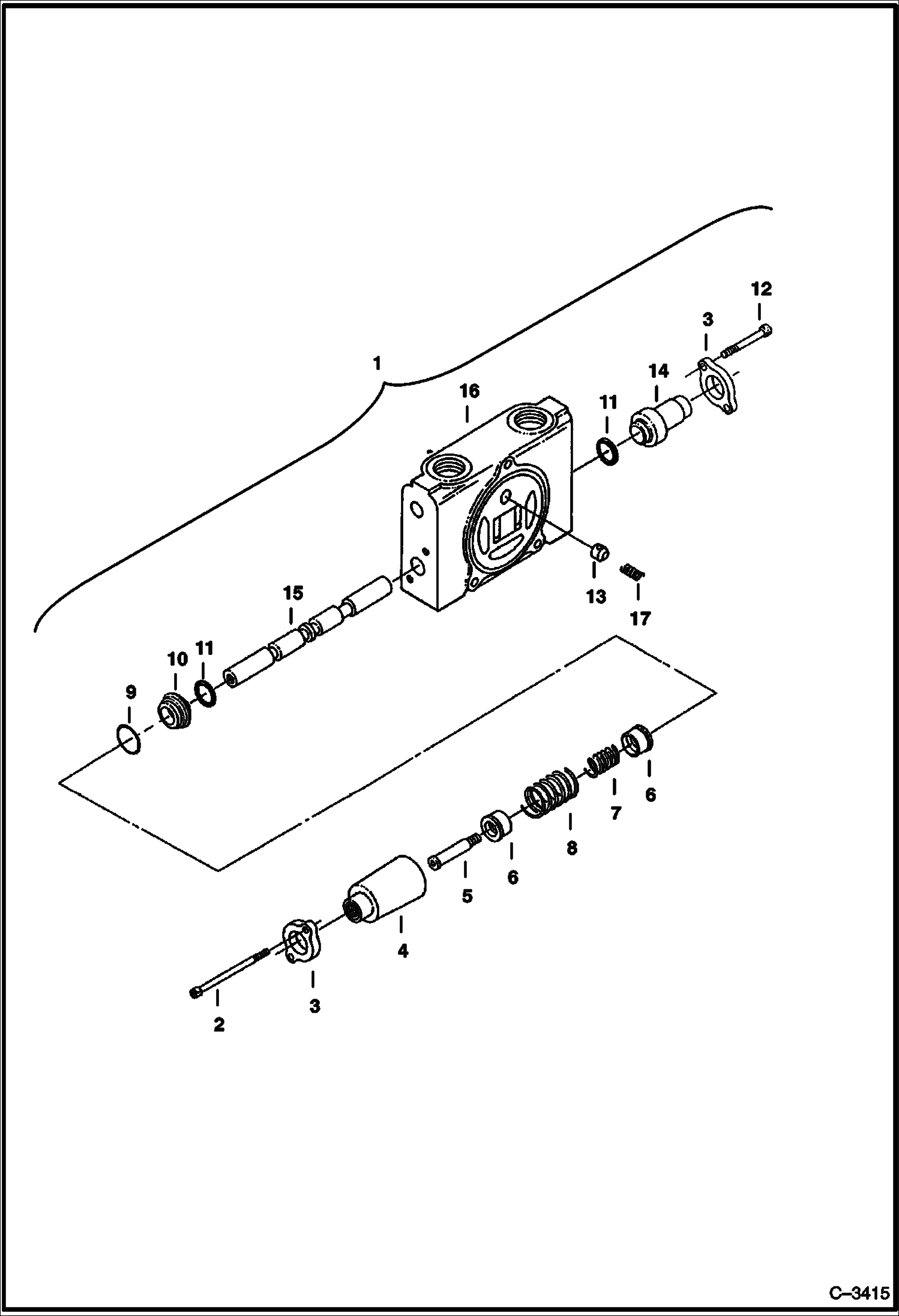

Схема запчастей Bobcat 328 - VALVE SECTION (Bucket) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6668982

VALVE Section - Bucket - W/Refs. 2-17

2

6665439

SCREW

3

6665442

PLATE

4

6668964

END COVER

5

6668967

BOLT

6

6668970

SEAT Spring

7

6668968

SPRING Inner

8

6668969

SPRING Outer

9

6665435

O-RING

10

6665443

RETAINER

11

25K20026

O RING 10 Was 6665432 - A

12

73G424

SCREW

13

6630965

POPPET

14

6668965

END COVER

15

SPOOL NSS - Order Ref. 1

16

HOUSING NSS - Order Ref. 1

17

6630966

SPRING

Выбрано товаров: 17
