Запчасти Bobcat 328 L.H. JOYSTICK CONTROLS HYDRAULIC SYSTEM

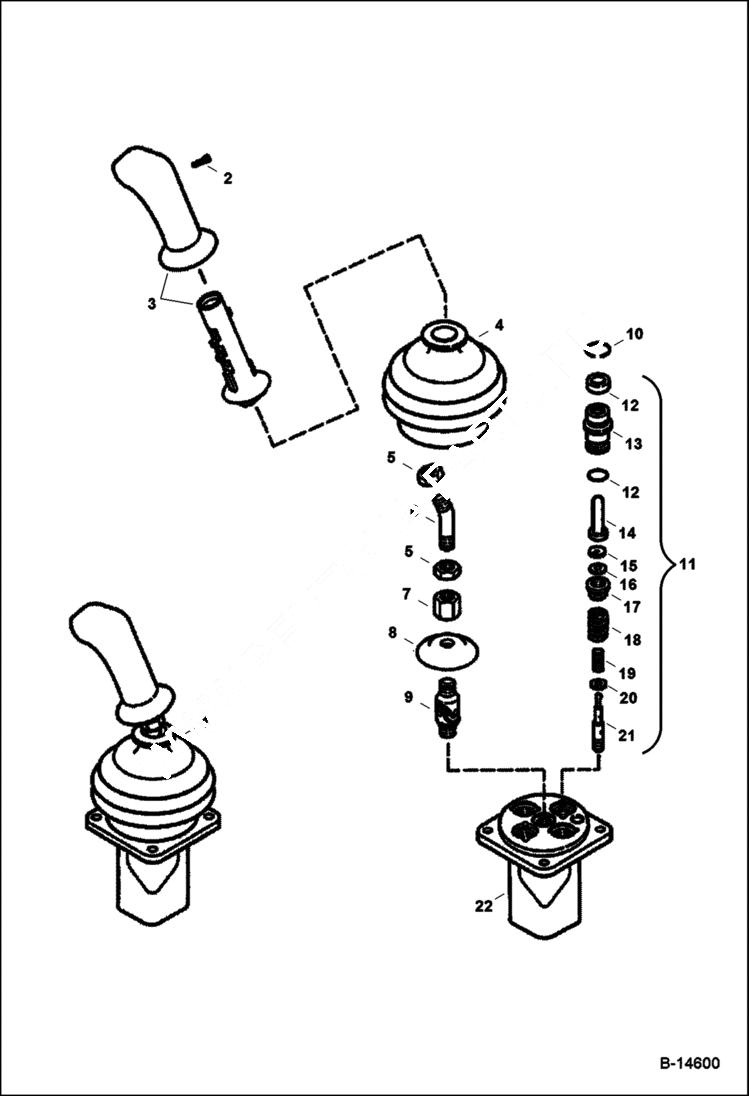

Схема запчастей Bobcat 328 - L.H. JOYSTICK CONTROLS HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6667721

JOYSTICK Assy. W/Ref. 2 - 22

2

6668792

SCREW

3

6668793

HANDLE Assy. - W/Ref. 2

4

6668794

BELLOWS

5

6668795

NUT

6

6668796

LEVER

7

6668797

NUT

8

6668798

ACTUATOR

9

6684711

COUPLER Was 6668799 - A

10

6668800

SNAP RING

11

6668801

SPOOL Assy. W/Refs. 12 - 21

12

6668826

SEAL KIT Includes (4) O-rings and (4) seals - for all 4 spools

13

6668827

BUSHING

14

6668828

ROD Push

15

6668856

SNAP RING

16

6668857

WASHER

17

6668858

SEAT

18

6668859

SPRING

19

6668860

SPRING

20

6668861

WASHER

21

6668862

SPOOL

22

6668802

HOUSING

Выбрано товаров: 22
