Запчасти Bobcat 328 HYDRAULIC CIRCUITRY (Valve to Swivel Joint to Drain Block) (S/N 514014900 & Above and 516611001 & Above) HYDRAULIC SYSTEM

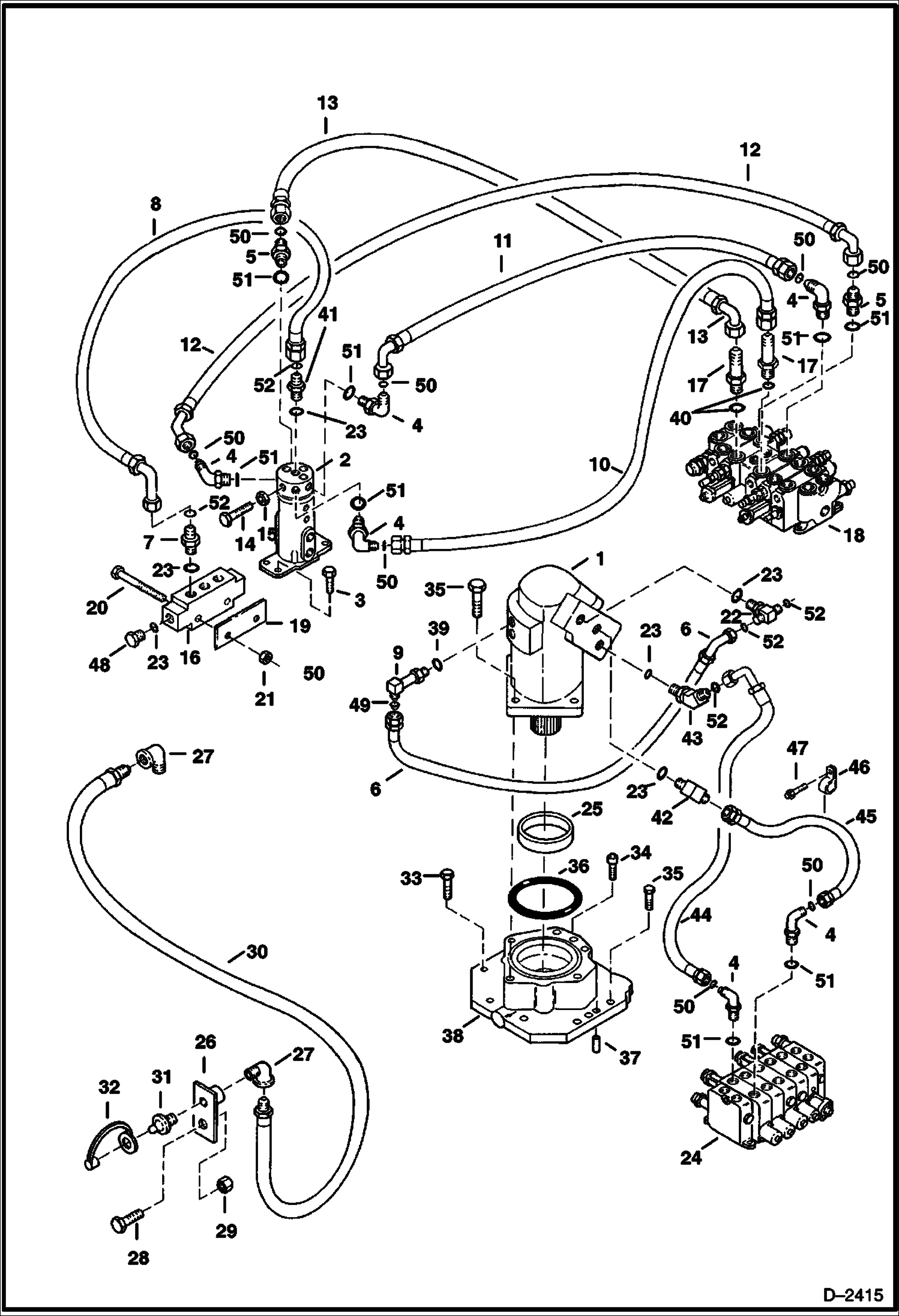

Схема запчастей Bobcat 328 - HYDRAULIC CIRCUITRY (Valve to Swivel Joint to Drain Block) (S/N 514014900 & Above and 516611001 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6666911

MOTOR See Illustration SWING MOTOR/ C3392 - Swing

2

7123864

SWIVEL ASSY See Illustration SWIVEL JOINT/ PE3057 - Was 6800524 - A

3

1CM1240

BOLT Was 1CM01230B - B

4

17KB0808

FITTING, HYD ELBOW W/Ref. 50 & 51 - Was 17KN00006B - A

5

15KB0808

FITTING, HYD CONNECTOR W/Ref. 50 & 51 - Was 15KN00006B - A

6

6535445

HOSE

7

15KB0606

FITTING, HYD CONNECTOR W/Ref. 23 & 52

8

6628590

HOSE

9

6812815

FITTING W/Ref. 39 - Flat Boss Face

10

6628801

HOSE

11

6628800

HOSE

12

6628782

HOSE

13

6628583

HOSE

14

BOLT See Illustration SWIVEL JOINT/ PE3057 - NLA - Use W/NLA 6536478 nut - Order 6810029 swivel stop - Was 6536147 - A

15

NUT Use W/NLA 6536147 screw - Was 6536748 - B

16

6675142

BLOCK Was 6667830 - A

17

16K6

FITTING W/Ref. 40

18

6670322

VALVE See Illustration CONTROL VALVE/ D2338 - Control

19

6628721

PLATE

20

1CM870

BOLT

21

4DM8

NUT

22

19KB0606

TEE W/Ref. 23 & 52 - Was 19KN00005B - A

23

99K6

O RING tapered boss face

23

79K6

O RING 10 flat boss face

24

6670321

VALVE See Illustration CONTROL VALVE/ D2339 - Control

25

6513681

BEARING

26

6586104

PLATE

27

26F1

PIPE FITG

28

29CM1025

BOLT

29

4DM10

NUT

30

6628633

HOSE

31

10H25

FITTING, GREASE 5 Grease

32

6652943

COVER grease fitting

33

7CM1250

BOLT

34

3GM12100

BOLT

35

7CM1240

SCREW

36

25K30508

O-RING, 10

37

20JM1025

DOWEL PIN Incl. W/Ref. 38

38

6628417

MOUNT See Illustration MOUNT ASSY/ C3393

39

79K6

O RING 10

40

79K8

O RING 10

41

16KB0606

FTG HYD L CONNECTOR W/Ref. 23 & 52 - Was 16KN00005B - A

42

ELBOW NLA - W/Ref. 23 & 52 - tapered boss face - Order 17KB606 - Was 17KN5 - A

42

17KB0606

FITTING W/Ref. 23 - flat boss face

43

18KB0606

FITTING, HYD ELBOW W/Ref. 23 & 52 - Was 18KN00005B - A

44

6800323

HOSE

45

6800324

HOSE

46

30H42

CLAMP

47

26GM8016

SCREW

48

24K5

PLUG W/Ref. 23 - Was 24KN00005B - A

49

6593801

ORIFICE .065'' (1,65 mm) - Was 6618286 - A

50

97K8

O-RING

51

99K8

O-RING

52

97K6

O RING flared end
