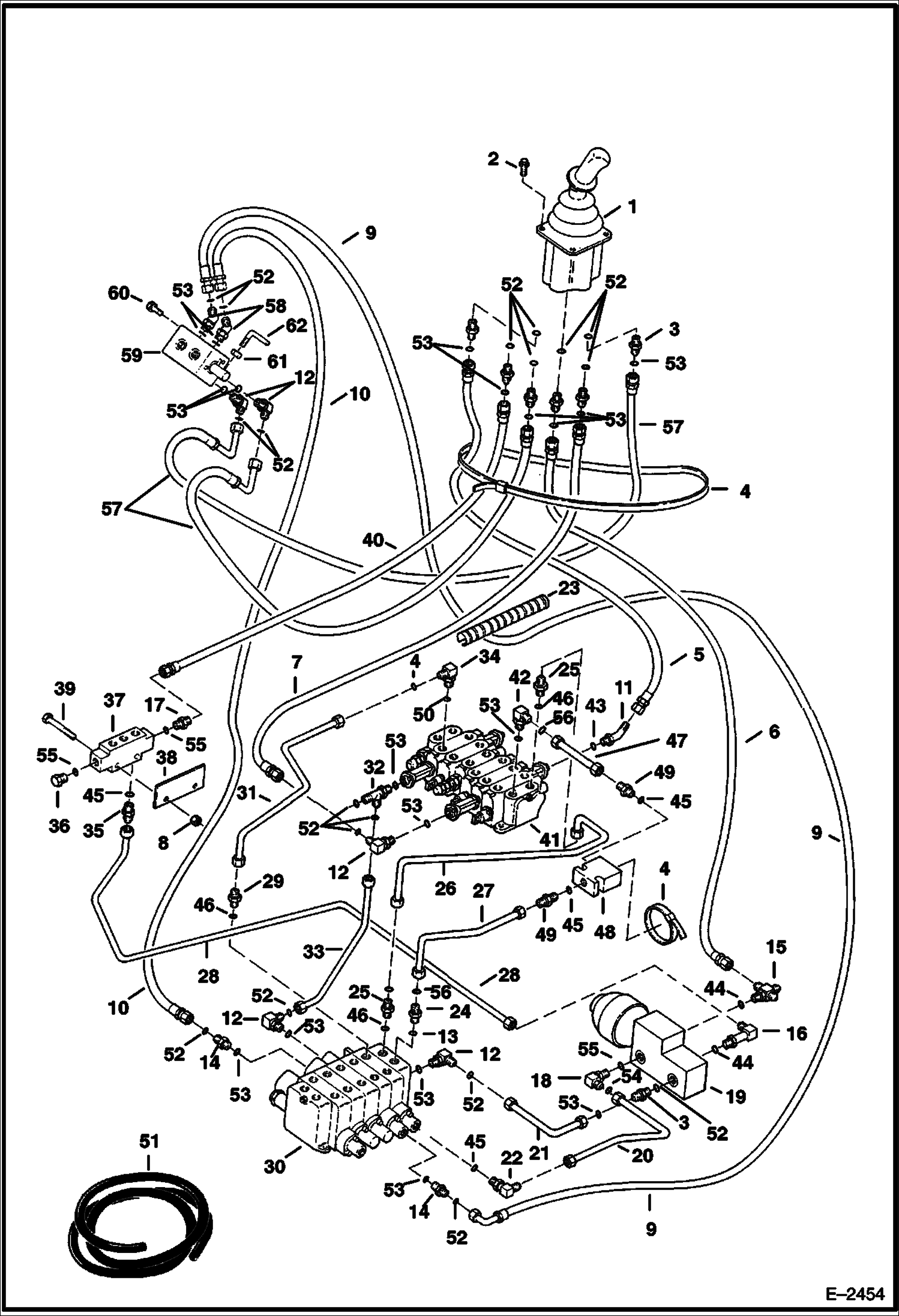

Запчасти Bobcat 328 HYDRAULIC CIRCUITRY (R.H. Joystick Controls) (W/ISO/Standard Selector Valve) (S/N 514016283 & Above and 516611316 & Above) HYDRAULIC SYSTEM

1

6667722

JOYSTICK, RH See Illustration R.H. JOYSTICK CONTROLS/ B14601 - RH

2

26GM8020

SCREW

3

ADAPTER NLA - W/Ref. 52 & 53 - tapered boss face - Was 6804359 - A

3

15KB0406

FTG HYD S CONNECTOR W/Ref. 52 & 53 - flat boss face

4

6624289

STRAP, TIE

5

6597588

HOSE

6

6539284

HOSE

7

6597584

HOSE

8

4DM8

NUT

9

6800666

HOSE

10

6597818

HOSE

11

18K3

ELBOW W/Ref. 43

12

17KB0404

FTG HYD ELBOW 90 W/Ref. 52 & 53 - Was 17KN00003B - A

13

99K10

O'RING

14

15KB0404

FTG HYD S Connector W/Ref. 52 & 53

15

6578209

TEE W/Ref. 44

16

6812815

FITTING W/Ref. 44 - Was -6715188 - A

17

15K5

FITTING W/Ref. 44

17

15KB0606

FITTING, HYD CONNECTOR W/Ref. 54 & 55

18

17K5

ELBOW W/Ref. 55 - flat boss face

18

ELBOW NLA - W/Ref. 54 & 55 - tapered boss face - Order 17KB606 - Was 17KN5 - A

18

17KB0606

FITTING W/Ref. 55 - flat boss face

19

VALVE See Illustration ACCUMULATOR VALVE/ C3418 - NLA - Accumulator - Order 6675141 - Was 6667819 - A

19

6675141

VALVE See Illustration ACCUMULATOR VALVE/ B17155 - Accumulator

20

6628671

TUBE

21

6800090

TUBE

22

17KB0604

ELBOW UNION W/Ref. 45 - Was 6579647 - A

23

CONDUIT NLA - 16'' (406 mm) long - Order Ref. 51

24

15KB1010

FITTING, HYD CONNECTOR W/Ref. 13 & 56 - Was 15KN00007B - A

25

6800567

ADAPTER W/Ref. 46

26

6628464

TUBE

27

6801029

TUBE

28

6628706

TUBE

29

6656391

CHECK VALVE W/Ref. 46

30

6670321

VALVE See Illustration CONTROL VALVE/ D2339 - Control

31

6628464

TUBE

32

21K3

CONNECTOR W/Ref. 43

32

21KB0404

FITTING, HYD TEE W/Ref. 52 & 53 - Was 21KN00003B - A

33

6628672

TUBE

34

21K6

FITTING W/Ref. 45

34

21KB0808

FTG HYD STRAIGHT TEE W/Ref. 43 & 50 - Was 21KN00006B - A

35

ADAPTER NLA - W/Ref. 45 - tapered boss face - Was 6715649

35

15KB0608

FITTING, HYD CONNECTOR W/Ref. 45 - flat boss face

36

24K5

PLUG W/Ref. 44

36

24K5

PLUG W/Ref. 55 - Was 24KN00005B - A

37

6675142

BLOCK Was 6667830 - A

38

6628721

PLATE

39

1CM870

BOLT

40

6628670

HOSE

41

6670322

VALVE See Illustration CONTROL VALVE/ D2338 CONTROL

42

17K7

ELBOW W/Ref. 46

42

17KN7

FITTING W/Ref. 13 & 56

43

97K8

O-RING

44

79K6

O RING 10

45

79K8

O RING 10

45

79K4

O RING 10

46

79K10

O RING 10

47

6628551

TUBE

48

6676658

VALVE assy - Was 6669593 - A

48

6672514

VALVE check

48

6672515

KIT, SEAL

49

731793

CONNECTR W/Ref. 45

50

99K8

O-RING

51

6643249

CONDUIT bulk - sold per foot

52

97K4

O'RING

53

99K4

O'RING

54

97K6

O RING flared end

55

99K6

O RING tapered boss face

55

79K6

O RING 10 flat boss face

56

97K10

O-RING 10

57

6804252

HOSE

58

18KB0404

FTG HYD ELBOW 45 W/Refs. 52 & 53 - Was 18KN00003B - A

59

6805768

VALVE See Illustration SELECTOR VALVE ASSY/ TS1353 ISO/Standard - Was 6805257 - A

60

29CM812

BOLT

61

62D4

NUT

62

6804251

HANDLE
