Запчасти Bobcat 328 HYDRAULIC CIRCUITRY (Arm Boom, Bucket & Auxiliary) HYDRAULIC SYSTEM

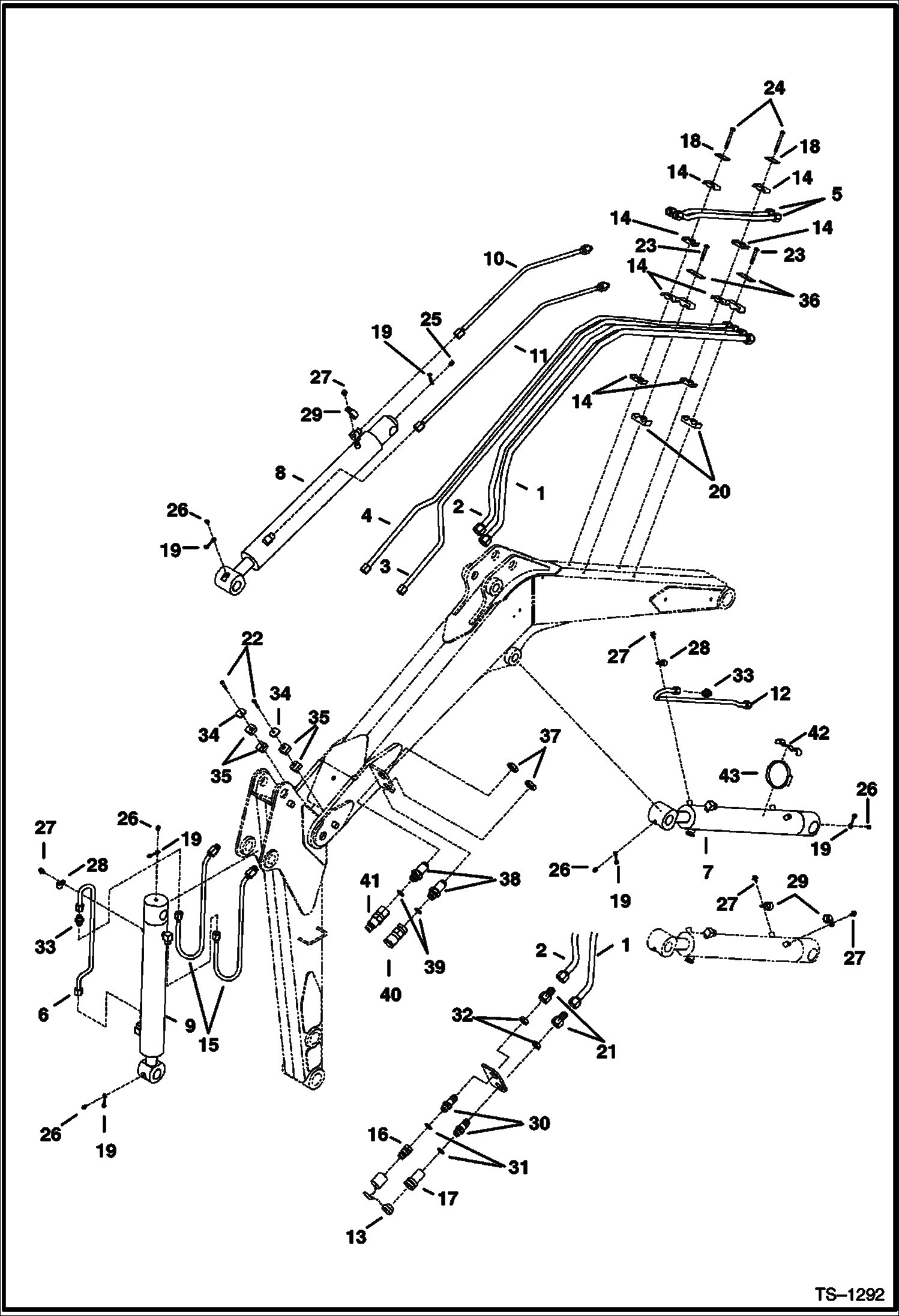

Схема запчастей Bobcat 328 - HYDRAULIC CIRCUITRY (Arm Boom, Bucket & Auxiliary) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6595938

TUBE See Illustration BOOM/ PE3032 - Use W/poppet couplers & Use W/aux bracket 6628560 2.95'' (74.9 mm) x 4.72'' (119.9 mm)

1

6628644

TUBE See Illustration BOOM/ PE3032 - Use W/flush face couplers & Use W/aux bracket 6628560 2.95'' (74.9 mm) x 4.72'' (119.9 mm)

1

7139953

TUBE See Illustration BOOM/ PE3032 - Use W/aux bracket 6597688 3.86'' (98 mm) x 4.95'' (125.8 mm)

2

6595939

TUBE See Illustration BOOM/ PE3032 - Use W/poppet couplers - Use W/aux bracket 6628560 2.95'' (74.9 mm) x 4.72'' (119.9 mm)

2

6628645

TUBE See Illustration BOOM/ PE3032 - Use W/ flush face couplers & Use W/aux bracket 6628560 2.95'' (74.9 mm) x 4.72'' (119.9 mm)

2

7139954

TUBE See Illustration BOOM/ PE3032 - Use W/aux bracket 6597688 3.86'' (98 mm) x 4.95'' (125.8 mm)

3

6596691

TUBE

4

6596693

TUBE

5

6595942

TUBE

6

6595943

TUBE

7

CYLINDER See Illustration BOOM CYLINDER/ NA2866 - boom

8

CYLINDER See Illustration ARM CYLINDER/ B14386 - arm

9

CYLINDER See Illustration BUCKET CYLINDER/ B14389 - bucket

10

6800131

HOSE

11

6800132

HOSE

12

6596710

TUBE

13

6513709

CAP PLUG Coupler

14

6577697

CLAMP Was 6701893 - B

15

6800133

HOSE For Standard Arm

15

6803910

HOSE For Long Arm

16

6598757

COUPLER, POPPET MALE straight

17

6598758

COUPLER, POPPET FEMALE straight

17

48K16

O RING 10

18

6652521

PLATE

19

6652943

COVER grease fitting

20

6592506

CLAMP Was 6659498 - A

21

6660224

ADAPTER

22

1CM640

SCREW

23

1CM860

BOLT

24

1CM870

BOLT

25

12H15

FITTING, GREASE 5 90 degree

26

10H25

FITTING, GREASE 5

27

29CM812

BOLT

28

30H30

CLAMP

29

30H45

CLIP

30

45K7

CONNECTR Use W/poppet couplers

31

79K10

O RING 10 Use W/poppet couplers

32

86F7

LOCK NUT Use W/poppet couplers

33

87F6

FITTING

34

6665102

COVER

35

6666920

CLAMP, HALF

36

6592507

PLATE

37

86F8

NUT 5 Use W/flush face couplers

38

45K8

ADAPTOR Bulkhead - Use W/flush face Couplers - Was 45KN00008B - A

38

CONNECTOR NLA - Bulkhead - Use W/flush face couplers - includes Ref. 39 - tapered boss face - Was 6716090 - A

38

97K12

O'RING 37 degree - Flared End

38

97K12

O'RING flared end

38

6812823

ADAPTER flat boss face - includes W/Ref. 39

39

79K12

O RING 10 Use W/flush face couplers - flat boss face

39

99K12

O RING Tapered boss face

40

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

41

6674688

COUPLER, FF MALE straight - Was 6667808 - A

41

6679841

SEAL Was 6672026 - A

42

6806461

CLAMP

43

42H56

CLAMP
