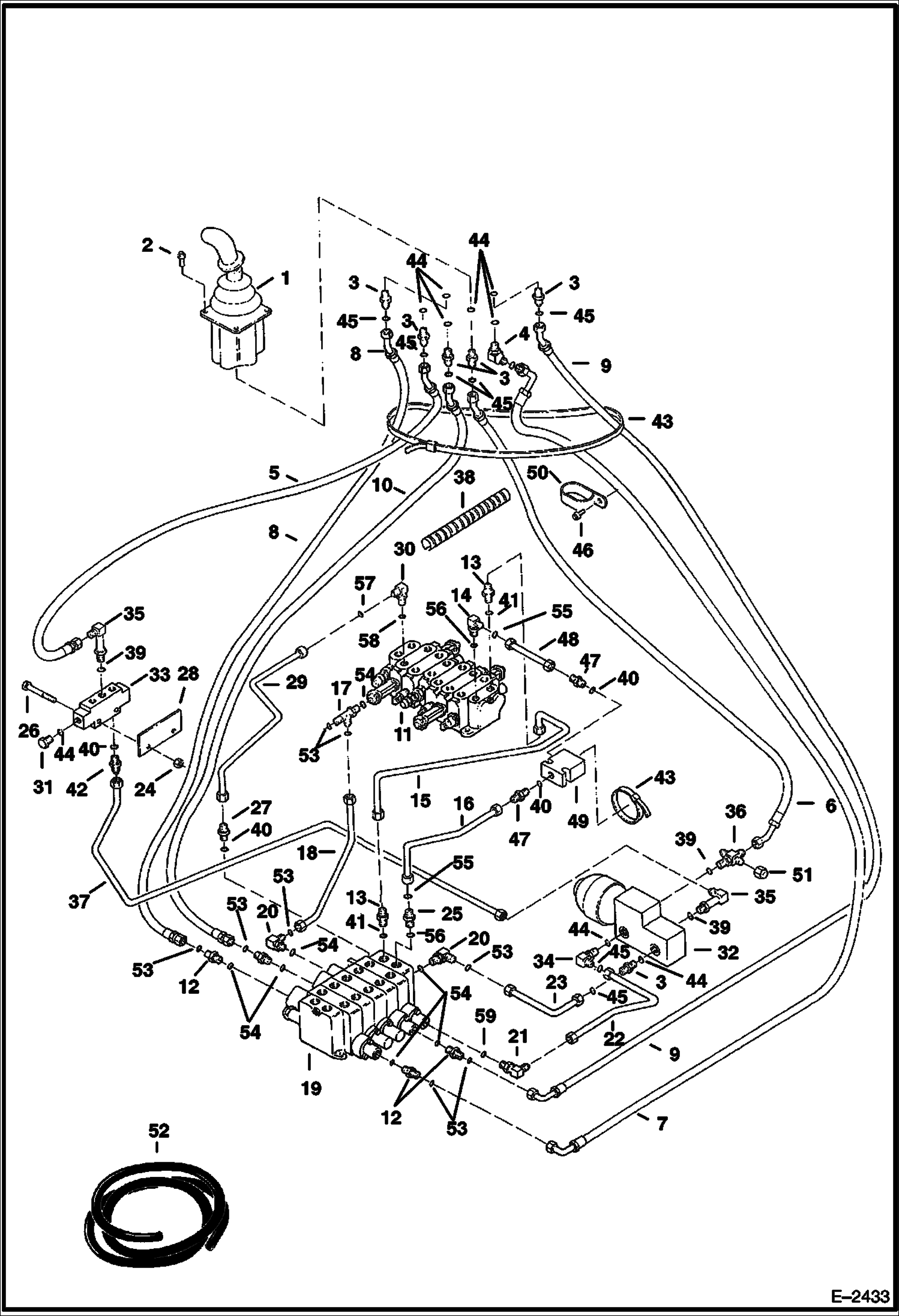

Запчасти Bobcat 328 HYDRAULIC CIRCUITRY (L. H. Joystick Controls) (Swing Motor & Arm) (ISO Control Pattern) (S/N 514014900-16282 and 516611001-11315) HYDRAULIC SYSTEM

1

6667721

JOYSTICK See Illustration L.H. JOYSTICK CONTROLS/ B14600 - LH

2

26GM8020

SCREW

3

CONNECTOR NLA - W/Ref. 44 & 45 - tapered boss face - Was 6804359 - A

3

15KB0406

FTG HYD S CONNECTOR flat boss face

4

6707895

ELBOW W/Ref. 44 & 45

5

6804000

HOSE

6

6804001

HOSE

7

6804106

HOSE

8

6804002

HOSE

9

6804105

HOSE

10

6803074

HOSE

11

6670322

VALVE See Illustration CONTROL VALVE/ D2338 - Control

12

15KB0404

FTG HYD S Connector W/Ref. 53 & 54

13

6800567

ADAPTER W/Ref. 41

14

17K7

ELBOW W/Ref. 41

14

17KN7

FITTING W/Ref. 55 & 56

15

6628471

TUBE

16

6801029

TUBE

17

21KB0404

FITTING, HYD TEE W/Ref. 53 & 54 - Was 21KN00003B - A

18

6628672

TUBE

19

6670321

VALVE See Illustration CONTROL VALVE/ D2338 - Control

20

17K3

ELBOW W/Ref. 38

20

17KB0404

FTG HYD ELBOW 90 W/Ref. 53 & 54 - Was 17KN00003B - A

21

17KB0604

ELBOW UNION W/Ref. 59 - Was 6579647 - A

22

6628671

TUBE

23

6800090

TUBE

24

4DM8

NUT

25

15K7

FITTING W/Ref. 41

25

15KB1010

FITTING, HYD CONNECTOR W/Ref. 55 & 56 - Was 15KN00007B - A

26

1CM870

BOLT

27

6656391

CHECK VALVE W/Ref. 40

28

6628721

PLATE

29

6628464

TUBE

30

21K6

FITTING W/Ref. 40

30

21KB0808

FTG HYD STRAIGHT TEE W/Ref. 57 & 58 - Was 21KN00006B - A

31

24K5

PLUG W/Ref. 39

31

24K5

PLUG W/Ref. 44 - Was 24KN00005B - A

32

VALVE See Illustration ACCUMULATOR VALVE/ C3418 - NLA - Accumulator - Order 6675141 - Was 6667819 - A

32

6675141

VALVE See Illustration ACCUMULATOR VALVE/ B17155 - Accumulator

33

6675142

BLOCK Was 6667830 - A

34

17K5

ELBOW W/Ref. 39 - flat boss face

34

ELBOW NLA - W/Ref. 44 & 45 - tapered boss face - Order 17KB606 - Was 17KN5 - A

34

17KB0606

FITTING W/Ref. 39 - flat boss face

35

6812815

FITTING W/Ref. 39 - Was 6715188 - A

36

6578209

TEE W/Ref. 39

37

6628706

TUBE

38

CONDUIT NLA - 16'' (406 mm) long - Order Ref. 52

39

79K6

O RING 10

40

79K8

O RING 10

41

79K10

O RING 10

42

CONNECTOR NLA - W/Ref. 40 - tapered boss face - Was 6715649 - A

42

15KB0608

FITTING, HYD CONNECTOR W/Ref. 40 - flat boss face

43

6624289

STRAP, TIE

44

99K6

O RING tapered boss face

44

79K6

O RING 10 flat boss face

45

97K6

O RING flared end

45

79K6

O RING 10 Was 77K000006B - D

46

26GM10020

BOLT

47

731793

CONNECTR W/Ref. 40

48

6628551

TUBE

49

6676658

VALVE assy - Was 6669593 - A

49

6672514

VALVE check

49

6672515

KIT, SEAL

50

31H46

CLAMP

51

36K5

CAP

52

6643249

CONDUIT bulk - sold per foot

53

97K4

O'RING

54

99K4

O'RING

55

97K10

O-RING 10

56

99K10

O'RING

57

97K8

O-RING

58

99K8

O-RING

59

79K4

O RING 10
