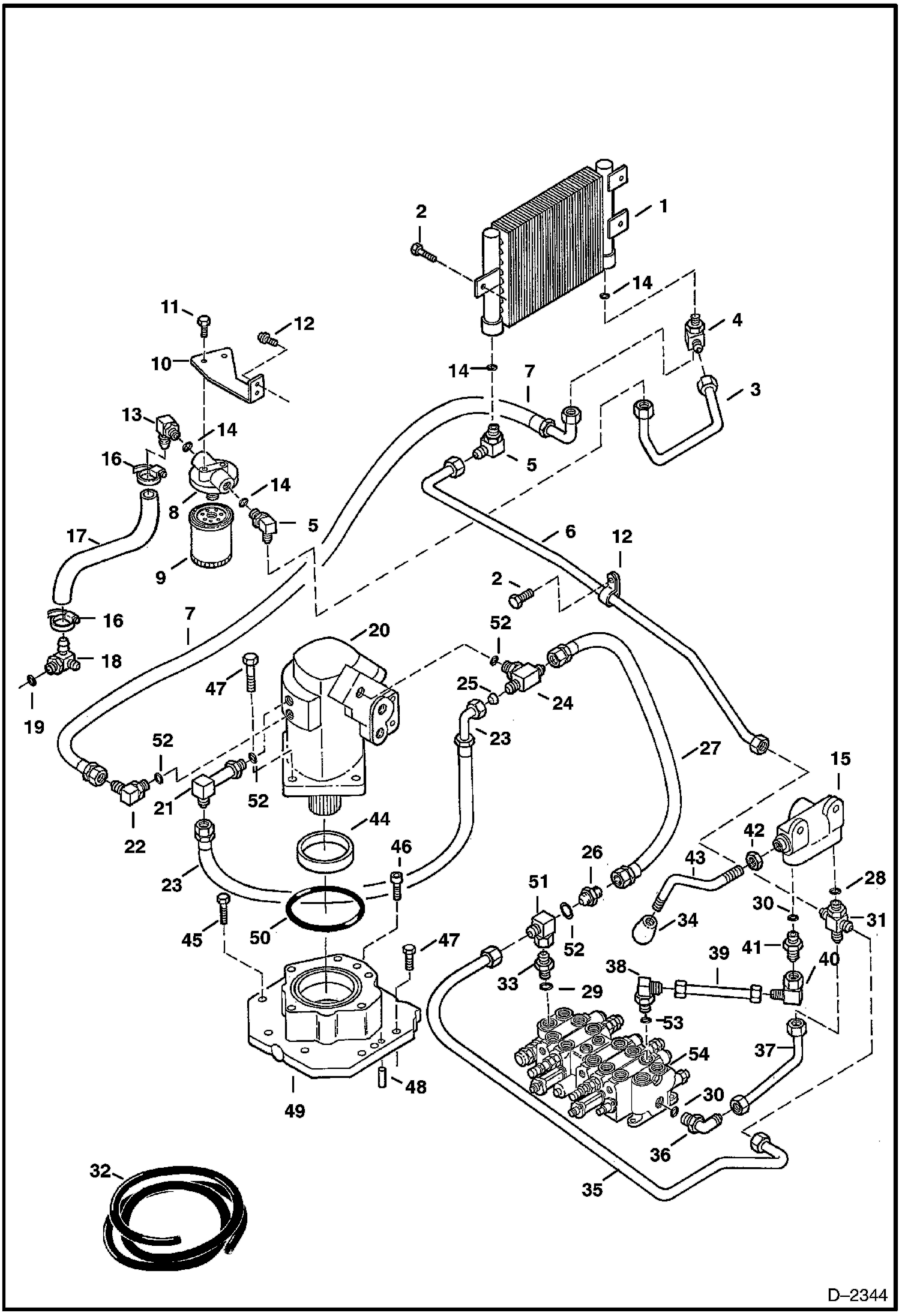

Запчасти Bobcat 328 HYDRAULIC CIRCUITRY (Valve to Swing Motor to Selector Valve to Cooler to Filter) (S/N 514013001-514014899) HYDRAULIC SYSTEM

1

6666610

OIL COOLER

2

26GM8016

SCREW

3

6596789

TUBE

4

6628791

ELBOW W/Ref. 14

5

17K10

FITTING W/Ref. 14

6

6628701

TUBE

7

6805309

HOSE Was 6596806 - A

8

6654897

FILTER ASSY Assy - W/Ref. 9

9

6653336

ELEMENT

10

6596792

BRACKET

11

17C612

BOLT 5

12

30H57

CLAMP

13

1312337

ELBOW W/Ref. 14

14

79K16

O RING 10

15

6660267

VALVE See Illustration SELECTOR VALVE/ B21980 - Selector - Was 6668877 - A

16

42H24

CLAMP-5

17

HOSE NLA - 16 inch (400mm) long - Order Ref. 32

18

6596791

TEE W/Ref. 19

19

79K20

O RING 10

20

6666911

MOTOR See Illustration SWING MOTOR/ C3392 - Swing

21

6558510

ELBOW W/Ref. 52

22

17K5

ELBOW W/Ref. 52

23

6535445

HOSE

24

19K5

FITTING W/Ref. 52

25

6593801

ORIFICE .065 inch (1,65mm) - Was 6618286 - A

26

15K5

FITTING W/Ref. 52

27

6587975

HOSE

28

79K14

O RING 10

29

79K10

O RING 10

30

79K12

O RING 10

31

6628387

TEE W/Ref. 52

32

6673825

HOSE bulk - sold per foot - Was 1310909B - A

33

6800567

ADAPTER W/Ref. 29

34

6634534

KNOB

35

6628558

TUBE

36

17K8

FITTING W/Ref. 30

37

6628552

TUBE

38

763818

ELBOW W/Ref. 53

39

6628551

TUBE

40

6669333

ELBOW

41

15KB1012

FITTING, HYD CONNECTOR W/Ref. 30 - Was 755055B - A

42

61D6

NUT 5

43

6628783

ROD

44

6513681

BEARING

45

7CM1250

BOLT

46

3GM12100

BOLT

47

7CM1240

SCREW

48

20JM1025

DOWEL PIN Incl. W/Ref. 49

49

6628417

MOUNT See Illustration MOUNT ASSY/ C3393 - Drive Motor

50

25K30508

O-RING, 10

51

6800254

ELBOW

52

79K6

O RING 10

53

79K8

O RING 10

54

6668685

VALVE See Illustration CONTROL VALVE/ D2338 - Control
