Запчасти Bobcat 328 HYDRAULIC CIRCUITRY (R.H. Joystick Controls (Bucket & Arm) (Standard Control Pattern) (S/N 514013001-514014899) HYDRAULIC SYSTEM

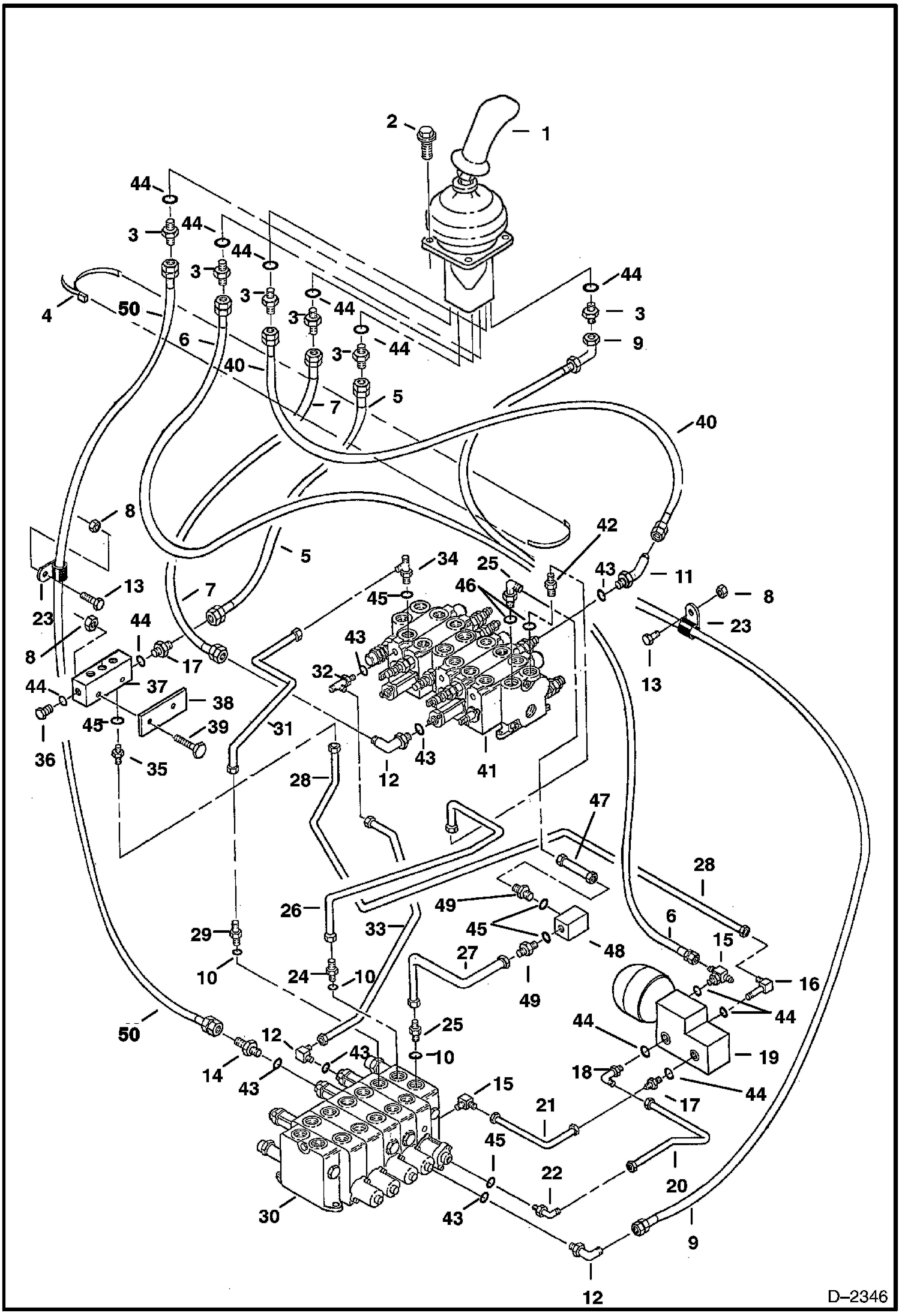

Схема запчастей Bobcat 328 - HYDRAULIC CIRCUITRY (R.H. Joystick Controls (Bucket & Arm) (Standard Control Pattern) (S/N 514013001-514014899) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6667722

JOYSTICK, RH See Illustration R.H. JOYSTICK CONTROLS/ B14601 - L.H.

2

26GM8020

SCREW

3

1308081

ADAPTER W/Ref. 44

4

6624289

STRAP, TIE

5

6628670

HOSE

6

6539284

HOSE

7

6597588

HOSE

8

4DM8

NUT

9

6628665

HOSE

10

6628667

HOSE

11

18K3

ELBOW W/Ref. 43

12

17K3

ELBOW W/Ref. 43

13

29CM820

SCREW

14

15K3

CONNECTOR W/Ref. 43

15

19K5

FITTING W/Ref. 44

16

6558510

ELBOW W/Ref. 44

17

15K5

FITTING W/Ref. 44

18

17K5

ELBOW W/Ref. 44

19

VALVE See Illustration ACCUMULATOR VALVE/ C3418 - NLA - Accumulator - Order 6675141 - Was 6667819 - A

19

6675141

VALVE See Illustration ACCUMULATOR VALVE/ C3418 Accumulator

20

6628671

TUBE

21

6800090

TUBE

22

17K6

ELBOW W/Ref. 45

23

30H45

CLIP

24

731795

CONNECTR W/Ref. 46

25

6800567

ADAPTER W/Ref. 46

26

6628471

TUBE

27

6801029

TUBE

28

6628706

TUBE

29

6656391

CHECK VALVE W/Ref. 46

30

6668196

VALVE See Illustration CONTROL VALVE/ D2338 - Control

31

6628464

TUBE

32

21K3

CONNECTOR W/Ref. 43

33

6628672

TUBE

34

21K6

FITTING W/Ref. 45

35

743108

FITTING W/Ref. 45

36

24K5

PLUG W/Ref. 44

37

6675142

BLOCK Was 6667830 - A

38

6628721

PLATE

39

1CM870

BOLT

40

6597584

HOSE

41

6668685

VALVE See Illustration CONTROL VALVE/ D2338 - Control

42

17K7

ELBOW W/Ref. 46

43

79K4

O RING 10

44

79K6

O RING 10

45

79K8

O RING 10

46

79K10

O RING 10

47

6628551

TUBE

48

6676658

VALVE assy - build up - Was 6669593 - A

48

6672514

VALVE check

48

6672515

KIT, SEAL

49

731793

CONNECTR W/Ref. 45

50

6597818

HOSE
