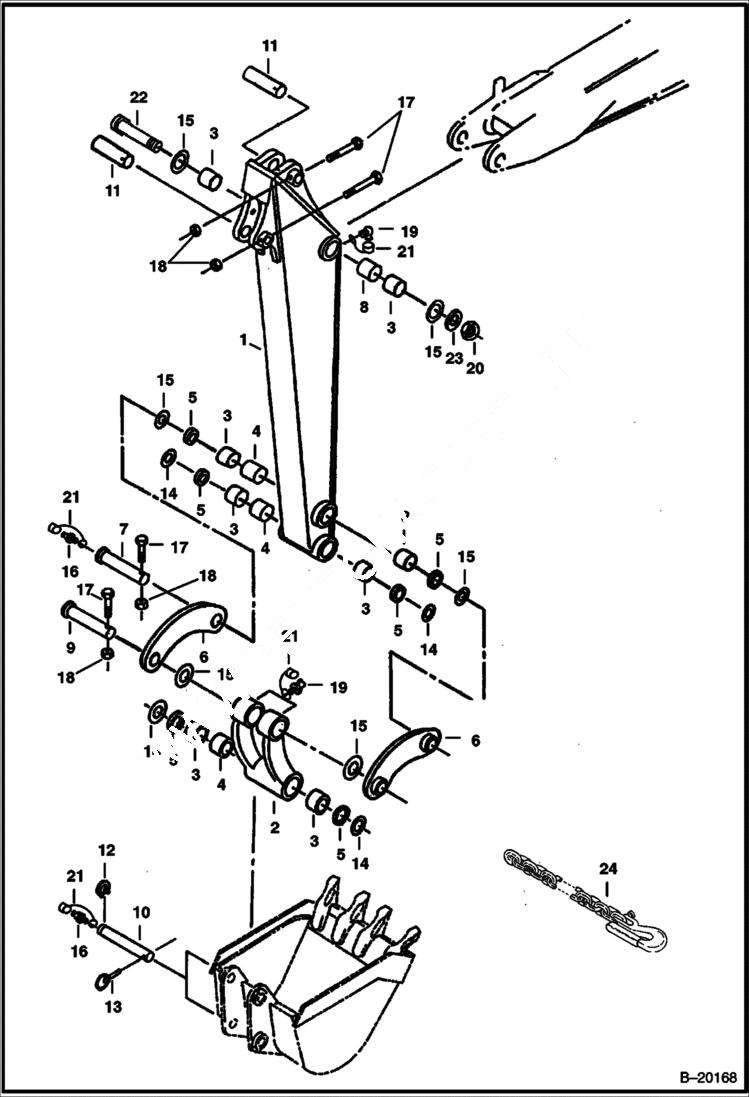

Запчасти Bobcat 325 ARM & BUCKET LINK WORK EQUIPMENT

1

6586406

ARM See BTIE-012 - Also order Refs. 3, 4, 5 & 8

1

LONG ARM Not Available for Model 325

2

6534097

LINK W/Ref. 3-5

3

6539825

BUSHING, PRESS FIT

4

6534094

SPACER

5

6652915

SEAL, OIL Dust

6

6534101

LINK

7

6534174

PIN

8

6534092

SPACER

9

6534175

PIN

10

6534115

PIN, PIVOT

11

6534165

PIN

12

6534154

RING

13

6560382

PIN, LOCK Lock Ring

14

6534111

WASHER

15

6535313

SHIM

16

10H25

FITTING, GREASE 5

17

1CM1065

BOLT

18

49DM10

NUT

19

12H15

FITTING, GREASE 5

20

39DM30

NUT

21

6652943

COVER grease fitting

22

6587225

PIN Arm Mounting

23

1EM300

WASHER

24

6665374

CHAIN Lifting - Available Thru BOBCAT PARTS - Not Factory Installed
