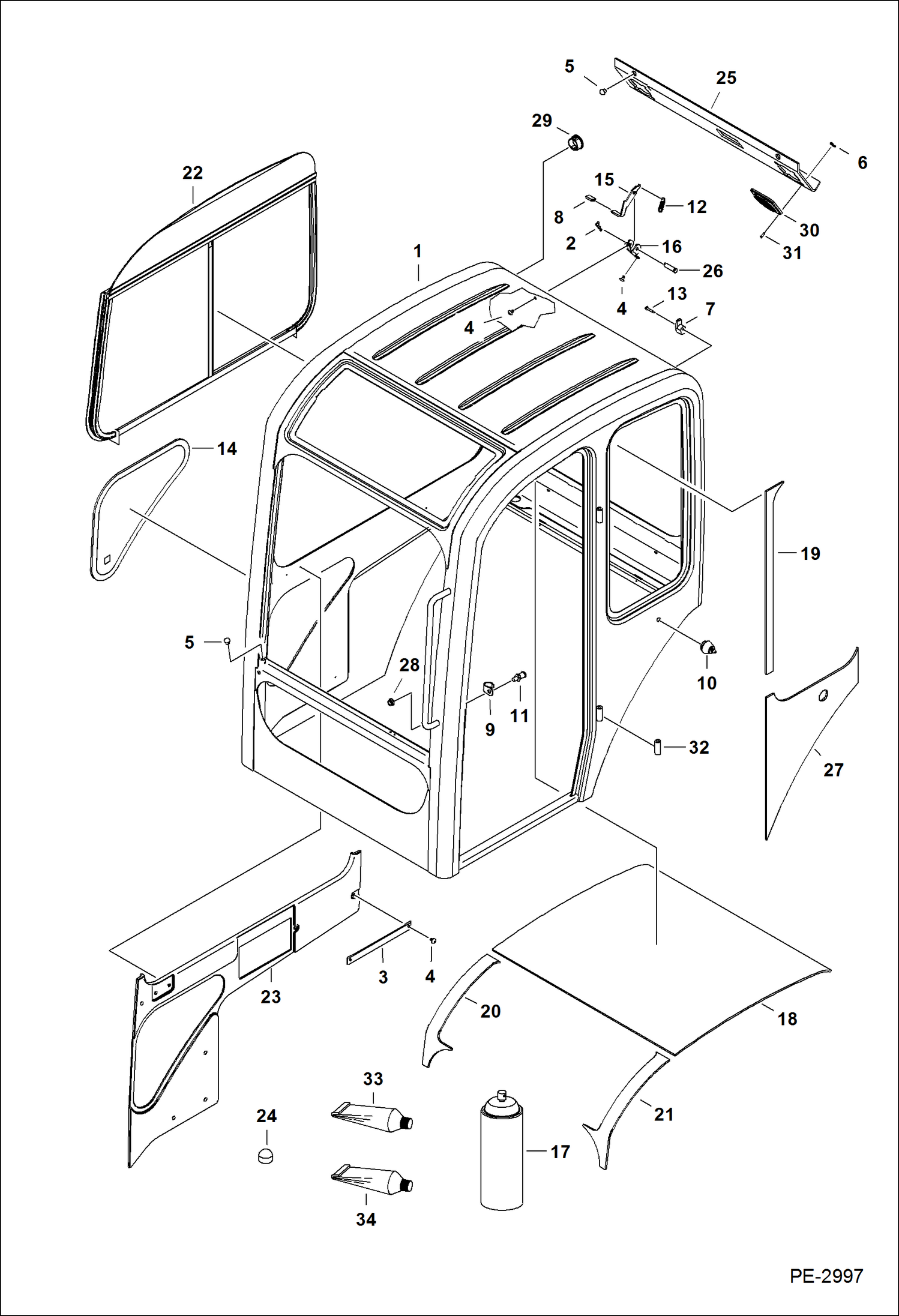

Запчасти Bobcat 325 OPERATOR CAB (RH Window & Insulation) MAIN FRAME

1

CAB, W/A See Illustration CAB KIT/ PE3332 - NLA - Was 7109076 - A

2

1306637

CLIP

3

6589347

STRAP

4

6589675

SCREW

5

6597572

BUMPER

6

6685744

CLIP

7

6658289

HOOK

8

6677500

HANDLE

9

6688999

STRIKER GUARD

10

6689001

STRIKER

11

6689007

STRIKER BOLT

12

6714210

SPRING

13

6808424

SCREW

14

6811792

WINDOW RH - Use 6808882 adhesive, 7102268 primer, & 7110861 cleaner

15

6814721

HANDLE

16

6814724

LATCH

17

7110861

CLEANER

18

6816185

INSULATION

19

6816189

INSULATION

20

6818275

INSULATION

21

6818362

INSULATION

22

7100571

WINDOW See Illustration OPERATOR CAB/ PE2297

23

7101010

INSULATION for machines W/ashtray

23

7163052

INSULATION, CAB RH for machines W/O ashtray

24

7101512

BUMPER

25

7108627

INSULATION

26

1303190

PIN, CLEVIS Was 4F6106 - D

27

7117115

INSULATION SIDE

28

55D7

NUT

29

6657719

PLUG antenna hole

30

6685607

GRILL

31

7163690

SCREW Was 6685743 - B

32

6719341

HINGE

33

6808882

ADHESIVE, URETHANE 10.5 fluid oz.

34

7102268

PRIMER 4.2 fluid oz.
