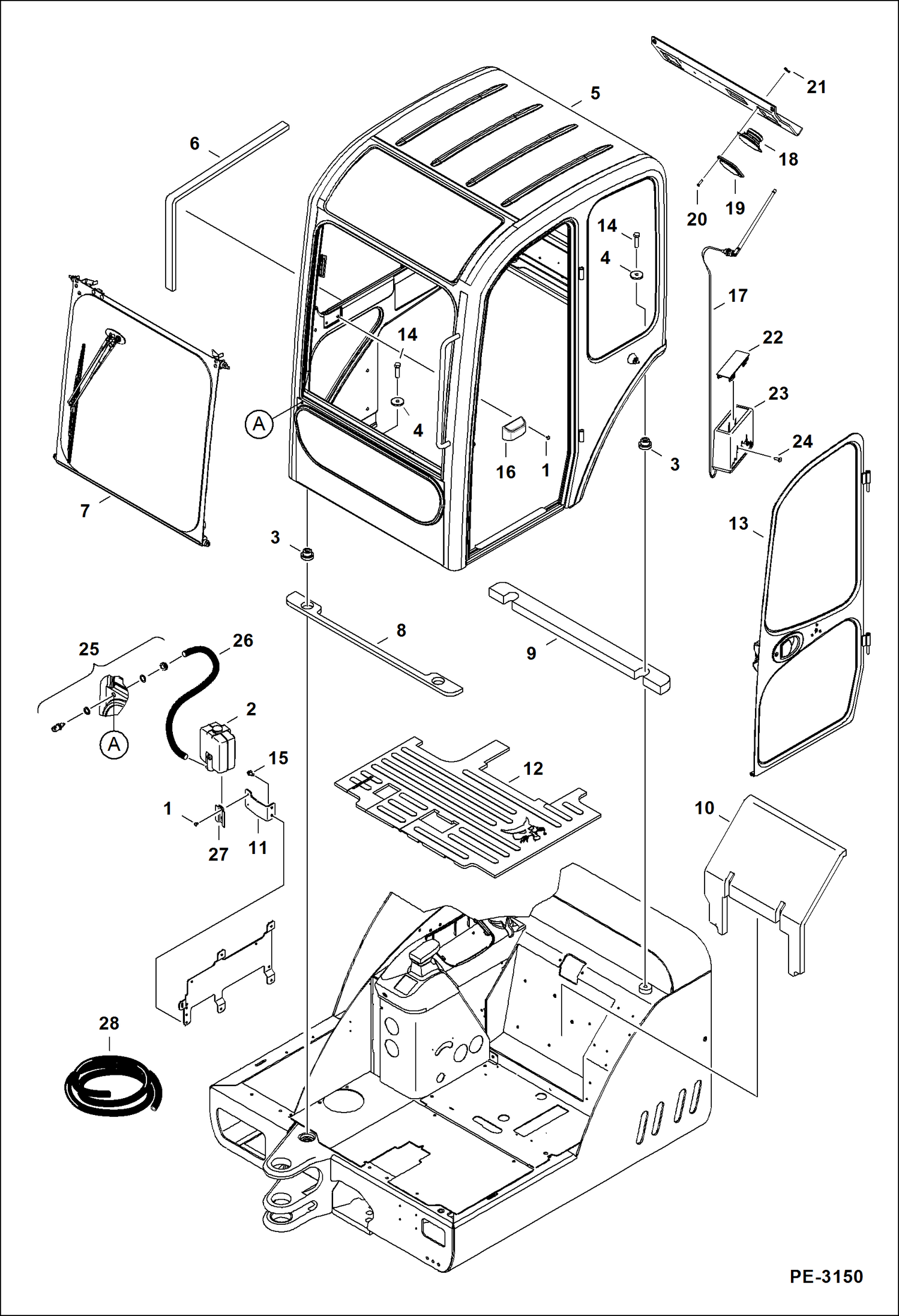

Запчасти Bobcat 325 OPERATOR CAB (Mounting, Front Window, Door) (Radio Ready) MAIN FRAME

1

6589675

SCREW

2

WASHER KIT NLA - kit - Order 6666767 nozzle, 6691499 tank assy, 6664557 bracket, & 5 feet of 6708310 bulk hose - Was 6664438 - A

2

6691499

TANK ASSY includes 6664554 pump

2

6664554

PUMP, WIPER WASHER

3

7001052

MOUNT, ENG Was 6804026 - A

4

6805244

WASHER

5

CAB See Illustration OPERATOR CAB/ PE2997

6

6814908

SEAL

7

6816165

WINDOW See Illustration OPERATOR CAB/ PE2796

8

6816176

SEAL

9

6816177

SEAL

10

6816973

INSULATION

11

7108066

BRACKET

12

7130440

FLOORMAT

13

7117231

DOOR, CAB ASSY See Illustration OPERATOR CAB/ PE2793

14

10CM1455

BOLT

15

26GM10020

BOLT

16

6664075

ASH TRAY

17

6676114

ANTENNA, RADIO

18

6903211

SPEAKER, 4 INCH

19

6685607

GRILL

20

7163690

SCREW Was 6685743 - B

21

6685744

CLIP

22

6685745

COVER

23

6685799

BRACKET

24

26GM10016

SCREW

25

6666767

NOZZLE

26

HOSE NLA - 5' (1524 mm) long - Order Ref. 28 - Was 6664556 - A

27

6664557

BRACKET

28

6708310

HOSE, BULK/FT 100 clear - 0.154'' ID - sold per foot
