X-CHANGE (Pin-On)

Запчасти Bobcat 325 X-CHANGE (Pin-On) ACCESSORIES & OPTIONS

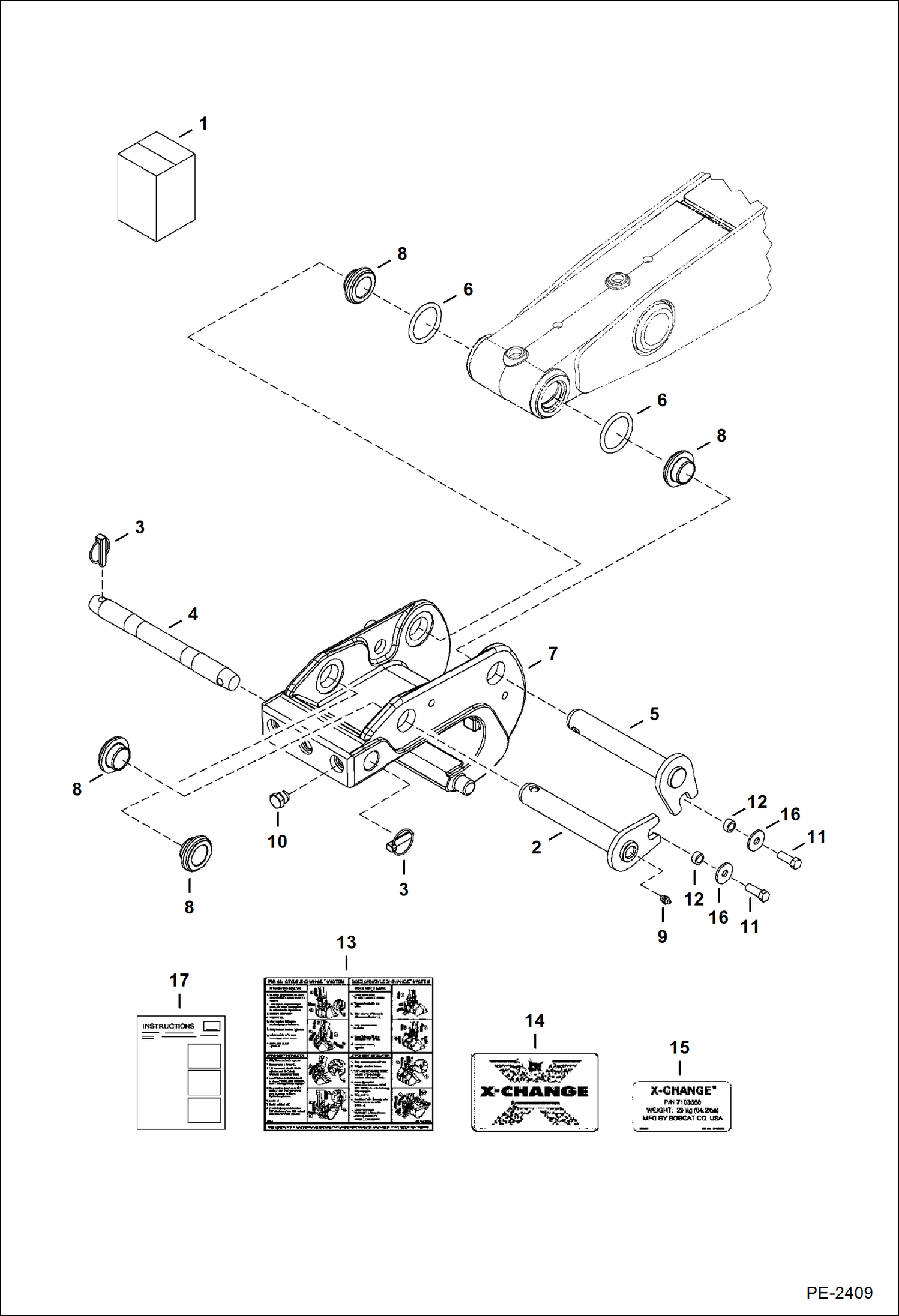

Схема запчастей Bobcat 325 - X-CHANGE (Pin-On) ACCESSORIES & OPTIONS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7105177

KIT See Illustration BUCKET LINK & X-CHANGE/ PE3260 - Was SALES - D

2

7130247

PIN

3

6560382

PIN, LOCK

4

7137214

PIN Was 6734239 - A

5

7130245

PIN

6

6811260

O-RING

7

6815102

X-CHANGE

8

7102891

BUSHING

9

10H25

FITTING, GREASE 5

10

24K6

FITTING

11

1CM1235

BOLT

12

6503451

SPACER

13

7102651

DECAL using pin-on X-Change

14

6803760

DECAL

15

7107953

DECAL pin-on X-Change

16

17EM120

WASHER

17

6903155

INSTRUCTION
