Запчасти Bobcat 325 PISTON & CRANKSHAFT Kubota - D1703-M-E3B - Interim Tier IV Replacement REPLACEMENT ENGINE

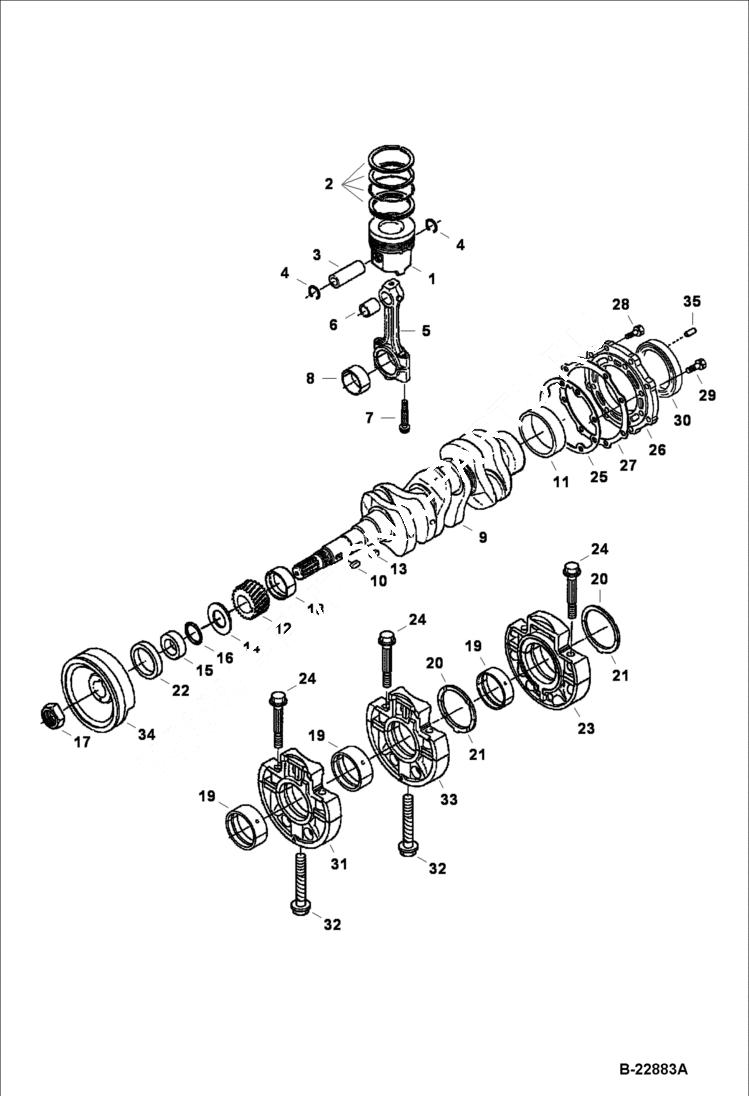

Схема запчастей Bobcat 325 - PISTON & CRANKSHAFT Kubota - D1703-M-E3B - Interim Tier IV Replacement REPLACEMENT ENGINE

Артикул

Название

Примечание

Количество

1

6698625

PISTON, ENG std (1G466-2111)

1

6698626

PISTON, ENG OS +.25 mm (05) (1G466-2111 OS25)

2

6685866

RING piston - std

2

6685867

RING piston - +0,25 mm

3

6655179

PIN, PISTON ENG

4

6686997

CIR-CLIP internal

5

6655181

ROD, CONNECTING W/Ref. 6, 7 & 8

6

6655243

BUSHING

7

BOLT NLA - Order 2 of 7020998 bolt and be advised of different torque specs

8

7015270

BEARING, ENG ROD CONNECTING rod - std. - Was 6655183 - A

8

6655236

BEARING rod (-0,20 mm)

8

6655237

BEARING rod (-0,40 mm)

9

6685868

CRANKSHAFT

10

3974546

KEY

11

6653859

SLEEVE

12

6685481

GEAR

13

6685469

KEY

14

6653861

SLINGER, OIL

15

3975337

COLLAR

16

3974577

O RING

17

3974671

NUT

18

7015264

BEARING, ENG CRANKSHAFT main - Std. - Was 6685486 - A

18

6685490

BEARING main (-0,20 mm)

18

6685491

BEARING main (-0,40 mm

19

7015265

BEARING, ENG CRANKSHAFT main - std. - Was 6685487 - A

19

6685492

BEARING main (-0,20 mm)

19

6685493

BEARING main (-0,40 mm)

20

7015266

WASHER, THRUST side thrust - Std. - Was 6685488 - A

20

6685494

WASHER side thrust - (+0,20 mm)

20

6685495

WASHER side thrust - (+0,40 mm)

21

7015267

WASHER, THRUST std - Was 6685489 - A

21

6685496

WASHER side thrust - (+0,20 mm)

21

6685497

WASHER side thrust - (+0,40 mm)

22

7024826

SEAL, OIL oil frt main - Was 6631664 - A

23

6689503

CASE MAIN BRG W/Ref. 19 & 24

24

6685482

BOLT

25

6684788

GASKET

26

6655166

COVER

27

6666814

GASKET

28

1CM825

BOLT Was 4CM825 - A

29

4CM828

BOLT

30

6684789

SEAL

31

6685483

CASE, MAIN BRG. W/Ref. 19 & 24

32

6653821

BOLT

33

6685484

CASE, MAIN BRG. W/Ref. 19 & 24

34

6974671

PULLEY,FAN DRIVE

35

7008888

PIN, STRAIGHT

Выбрано товаров: 47
