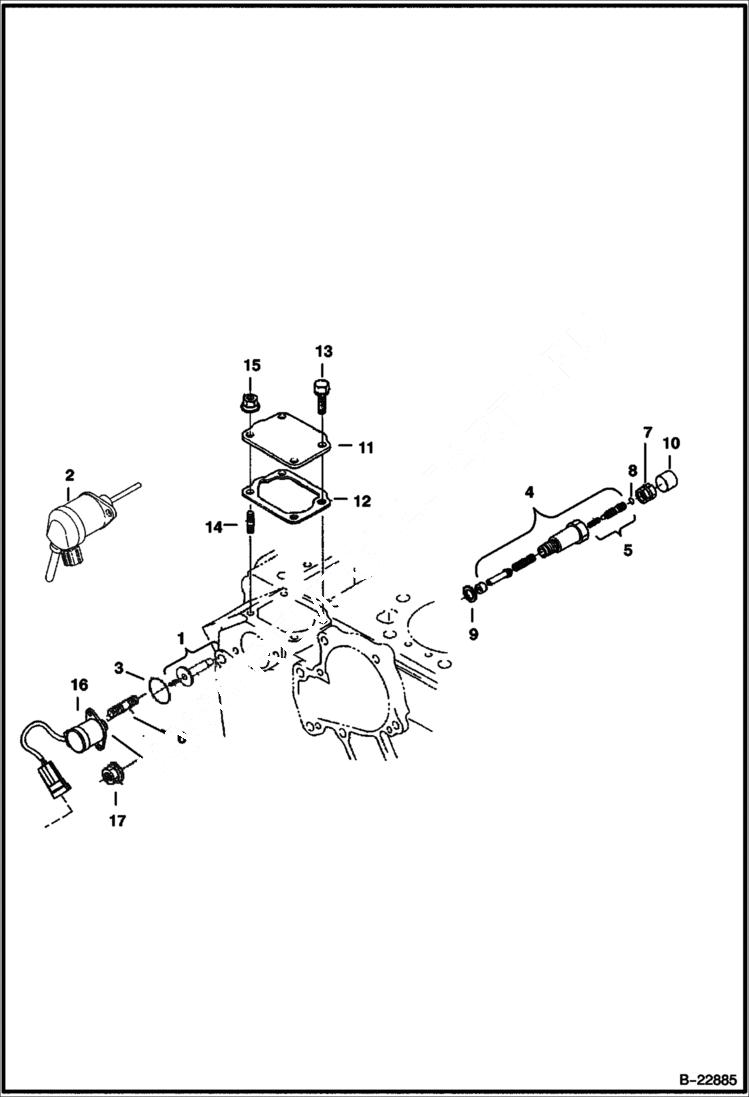

Запчасти Bobcat 325 ENGINE STOP LEVER POWER UNIT

1

6684825

GUIDE, SOLENOID

2

SOLENOID NLA -fuel shutoff - W/molded connector- Order Ref 16 - Was 6684826 - A

3

6685465

O-RING

4

6684815

IDLING ASSY W/Ref. 5 - 10

5

6684816

BOLT, ADJUSTING

6

6652764

STUD Was 3974462B - A

7

6684817

NUT

8

6684891

SEAL

9

6684818

SEAL

10

6684819

CAP

11

6685500

COVER

11

6698116

COVER boost housing - W/guide tabs

12

6684841

GASKET Was 6684824 - A

13

1CM620

BOLT Was 4CM620 - A

14

6652764

STUD Was 3974462B - A

15

6670533

NUT flange - Was 6653561 - A

16

6691498

SOLENOID, SHUTOFF FUEL 240 mm (9.45'') lead

17

6684827

NUT
