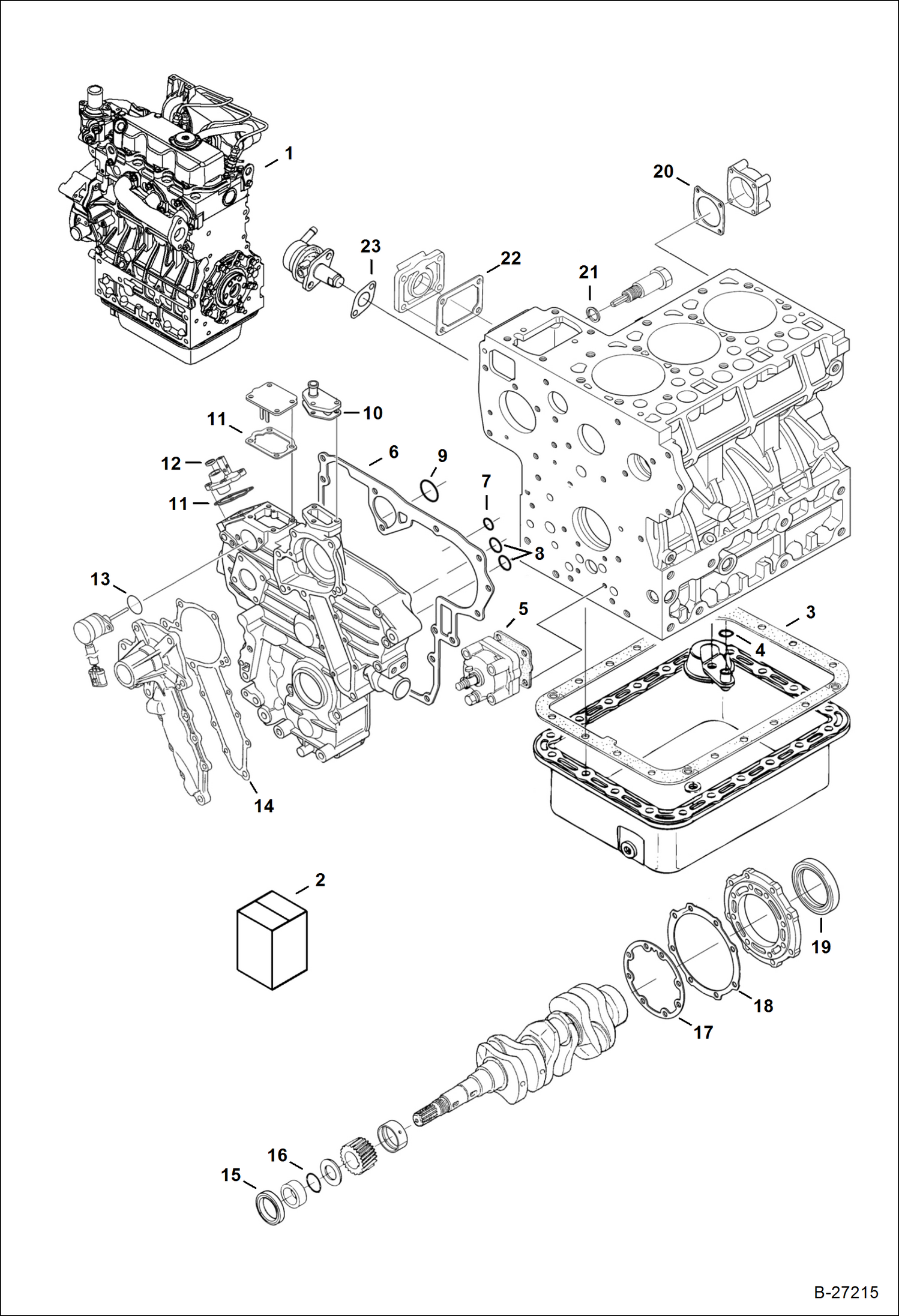

Запчасти Bobcat 325 ENGINE & LOWER GASKET KIT POWER UNIT

1

ENGINE, D1703-M-E2B-BOBCAT-1 See BTIE-087 NLA - Was 6683188 - A

1

6683188REM

ENGINE, KUBOTA V1703 See BTI388ldr

2

6689017

KIT, GASKET ENG LOWER

2

6698638

KIT, GASKET ENG LOWER Ref. 3-23

3

6666786

GASKET See Illustration OIL PAN/ B22878 - oil pan

4

6684754

O-RING See Illustration OIL PAN/ B22878 - oil screen

5

6666782

GASKET See Illustration CRANKCASE/ B22877 - oil pump

6

6684770

GASKET See Illustration GEAR CASE/ B22880 - gear case

7

6685466

O-RING See Illustration GEAR CASE/ B22880 - gear case

8

6685467

O-RING See Illustration GEAR CASE/ B22880 - gear case

9

6685468

O-RING See Illustration GEAR CASE/ B22880 - gear case

10

6666803

GASKET See Illustration GEAR CASE/ B22880 - water return flange

11

6684841

GASKET See Illustration SPEED CONTROL PLATE/ B22888 - plate

12

6685476

SEAL See Illustration SPEED CONTROL PLATE/ B22888 - oil

13

6685465

O-RING See Illustration ENGINE STOP LEVER/ B22885 - stop solenoid

14

6684870

GASKET See Illustration SPEED CONTROL PLATE/ B22888 - water pump

15

7024826

SEAL, OIL See Illustration GEAR CASE/ B22880 - front oil - oil frt main - Was 6631664

16

3974577

O RING See Illustration PISTON & CRANKSHAFT/ B22883 - crankshaft frt

17

6684788

GASKET See Illustration PISTON & CRANKSHAFT/ B22883 - bearing case

18

6666814

GASKET See Illustration PISTON & CRANKSHAFT/ B22883 - case cover

19

6684789

SEAL See Illustration PISTON & CRANKSHAFT/ B22883 - rear oil

20

6692386

GASKET See Illustration FUEL CAMSHAFT/ B22884 - cover

21

6684818

SEAL See Illustration ENGINE STOP LEVER/ B22885

22

6666783

GASKET See Illustration GOVERNOR/ B22887 - oil filler

23

6686037

GASKET See Illustration INJECTION PUMP/ B22886 - fuel pump
