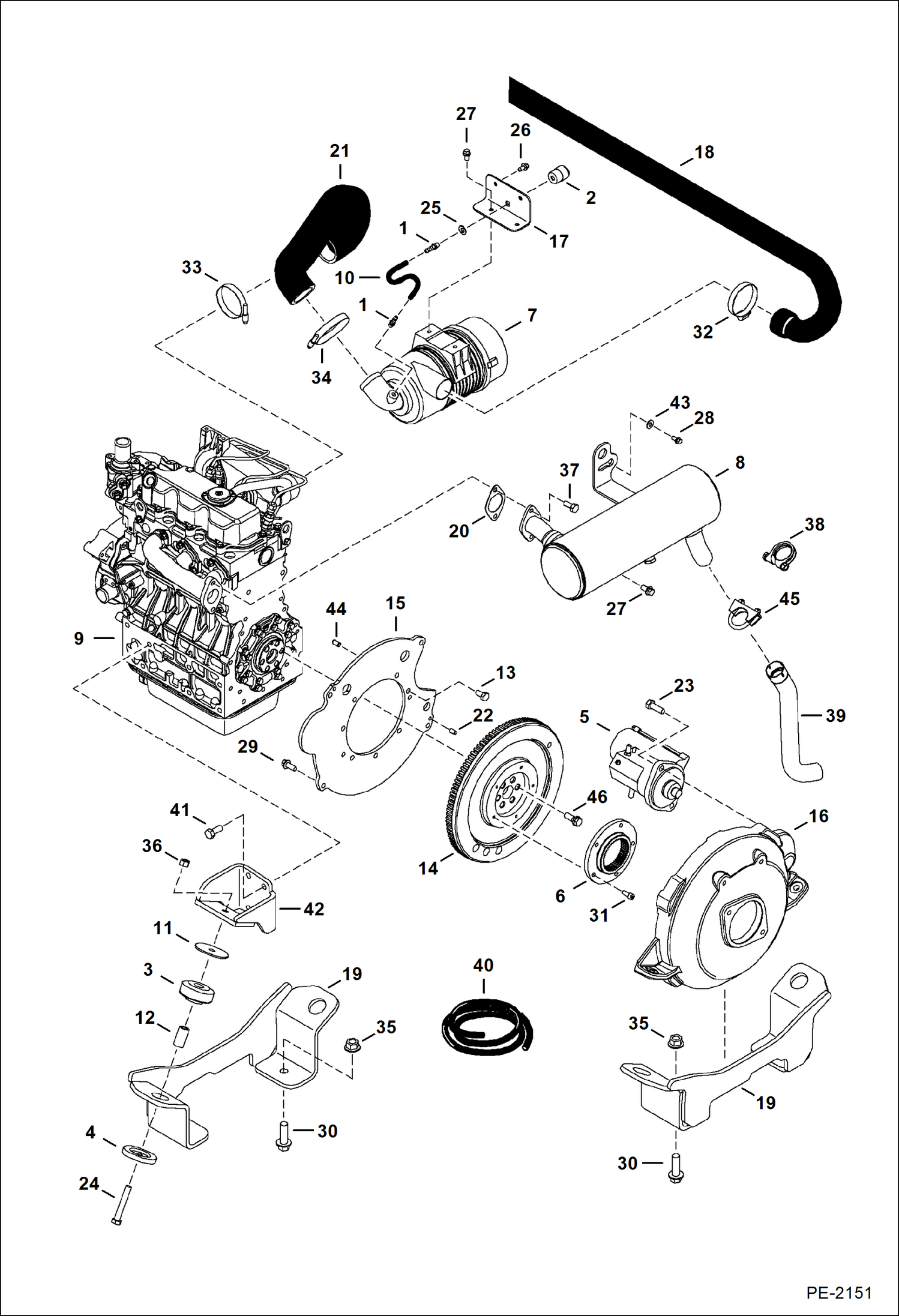

Запчасти Bobcat 325 ENGINE & ATTACHING PARTS (Air Cleaner, Muffler, Engine Mounts) POWER UNIT

1

6505813

CONNECTOR

2

6515007

GAUGE

3

6661785

MOUNT, ENG

4

6661787

WASHER

5

STARTER See Illustration STARTER/ D2437

6

6670757

COUPLER flange

7

6670851

AIR CLEANER

8

MUFFLER NLA - Order 7140377 muffler & 7140373 pipe - Was 6678077

8

7140377

MUFFLER

8

6678725

MUFFLER, PURIFIER

9

ENGINE, D1703-M-E2B-BOBCAT-1 See Illustration ENGINE & UPPER GASKET KIT/ B27214 NLA - Was 6683188 - A

10

HOSE NLA - 11'' (280 mm) long - Order Ref. 40

11

6705106

WASHER

12

6706043

SPACER

13

6733378

SCREW

14

7158134

FLYWHEEL, ENG ASSY *SEE NOTES* See BTI388exc - Was 6801196 - A

14

6510470

RING GEAR

15

6806921

PLATE flywheel

15

PLATE NLA - Order 7126918 plate - Also Order Ref. 44 - Was 7101786 - A

15

7126918

PLATE

16

6808161

HOUSING

16

7121429

HOUSING MACH Was 7101784 - A

17

6808786

BRACKET

18

6809378

HOSE

19

7109895

MOUNT Was 6810642 - A

20

6811602

GASKET

21

6818148

HOSE inlet

22

7101341

PIN

23

1CM1235

BOLT

24

1CM1280

BOLT

25

25E17

WASHER 5 flat

26

26GM8016

SCREW

27

29CM816

SCREW

28

29CM1020

BOLT

29

29CM1025

BOLT

30

29CM1650

BOLT

31

3GM820

SCREW

32

42H40

HOSECLAM5

33

42HC300

CLAMP

34

42HC350

CLAMP

35

51DM16

NUT

36

53DM12

NUT

37

5CM1025

BOLT

38

CLAMP NLA - Order Ref. 45 - Was 6677367 - A

39

7140373

PIPE exhaust - Was 7130436 - A

40

6557720

HOSE bulk - sold per foot

41

6719828

BOLT

42

6814278

MOUNT

43

17EM80

WASHER

44

20JM1025

DOWEL PIN Use W/7126918 plate

45

710706

CLAMP

46

6598275

BOLT supplied W/engine
