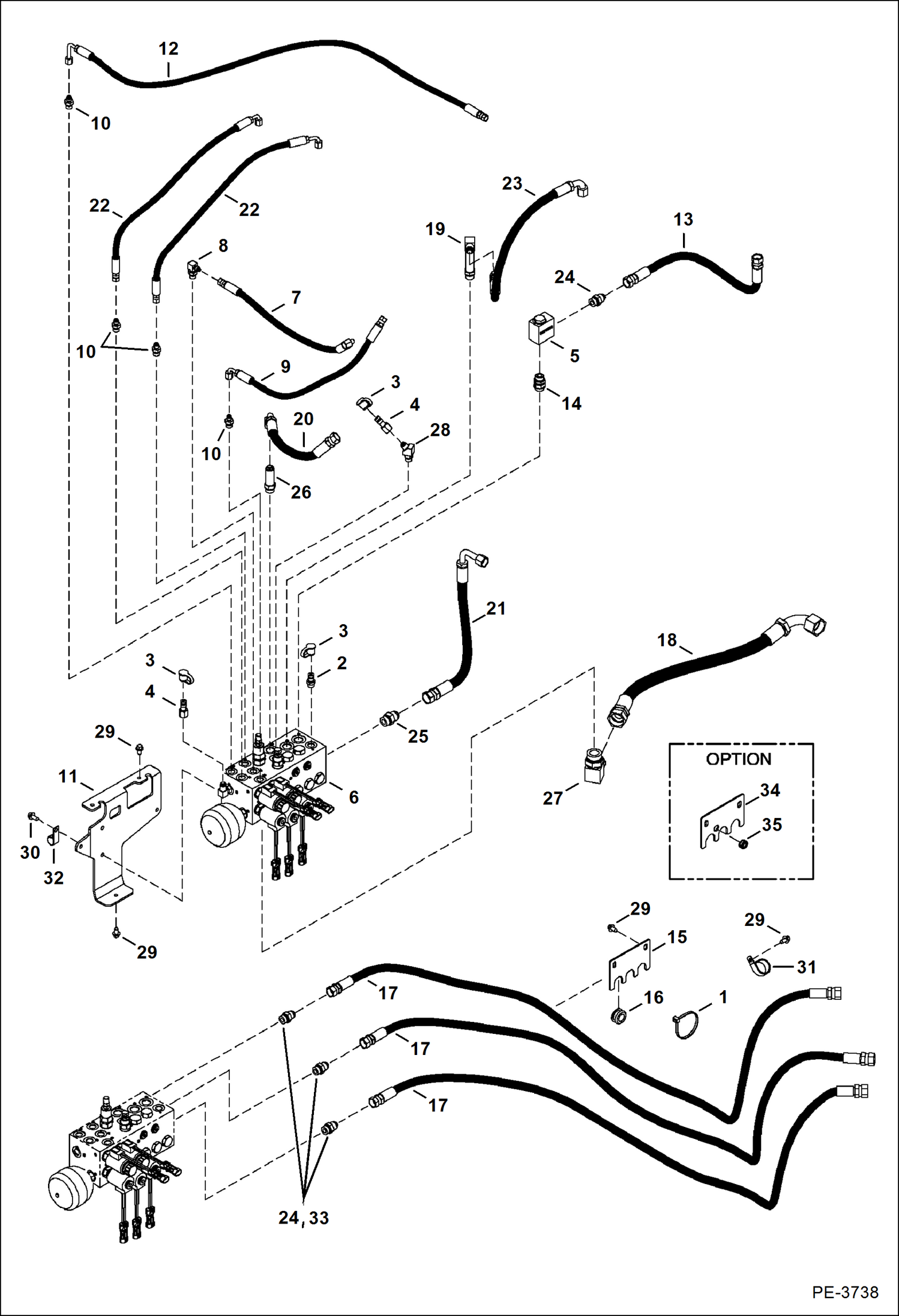

Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (Manifold) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6630168

COUPLER diagnostic

3

6630367

CAP dusts

4

6661753

PLUG diagnostic

5

6676658

VALVE assy - check

6

6685164

MANIFOLD See Illustration MANIFOLD ASSY/ MS1402 assy - Was 6678060 - A

7

6704212

HOSE

8

17KB0406

FITTING, HYD ELBOW

8

79K6

O RING 10

9

7125143

HOSE Was 6800677 - B

10

15KB0406

FTG HYD S CONNECTOR

10

79K6

O RING 10

11

6808593

MOUNT

12

6809332

HOSE

13

6809336

HOSE

14

6812822

CONNECTOR W/Ref. 34

15

6810142

PLATE

16

6810143

GROMMET

17

6810145

HOSE

18

6810219

HOSE

19

6812821

ELBOW

19

79K6

O RING 10

20

6810494

HOSE

21

6811152

HOSE

22

6809329

HOSE Was 6811153 - D

23

6811155

HOSE

24

15KB0808

FITTING, HYD CONNECTOR

24

79K8

O RING 10

25

15KB1010

FITTING, HYD CONNECTOR

25

79K10

O RING 10

26

16KB0808

FITTING, HYD CONNECTOR

26

79K8

O RING 10

27

17KB1616

FITTING, HYD ELBOW

27

79K16

O RING 10

28

18KB0606

FITTING, HYD ELBOW

28

79K6

O RING 10

29

26GM8016

SCREW

30

29CM816

SCREW

31

30H58

CLIP

32

30HJ512

CLAMP

33

15KB1008

FITTING, HYD CONNECTOR

34

7145816

PLATE, GUIDE HOSE for motion alarm option

35

515069

GROMMET for motion alarm option
