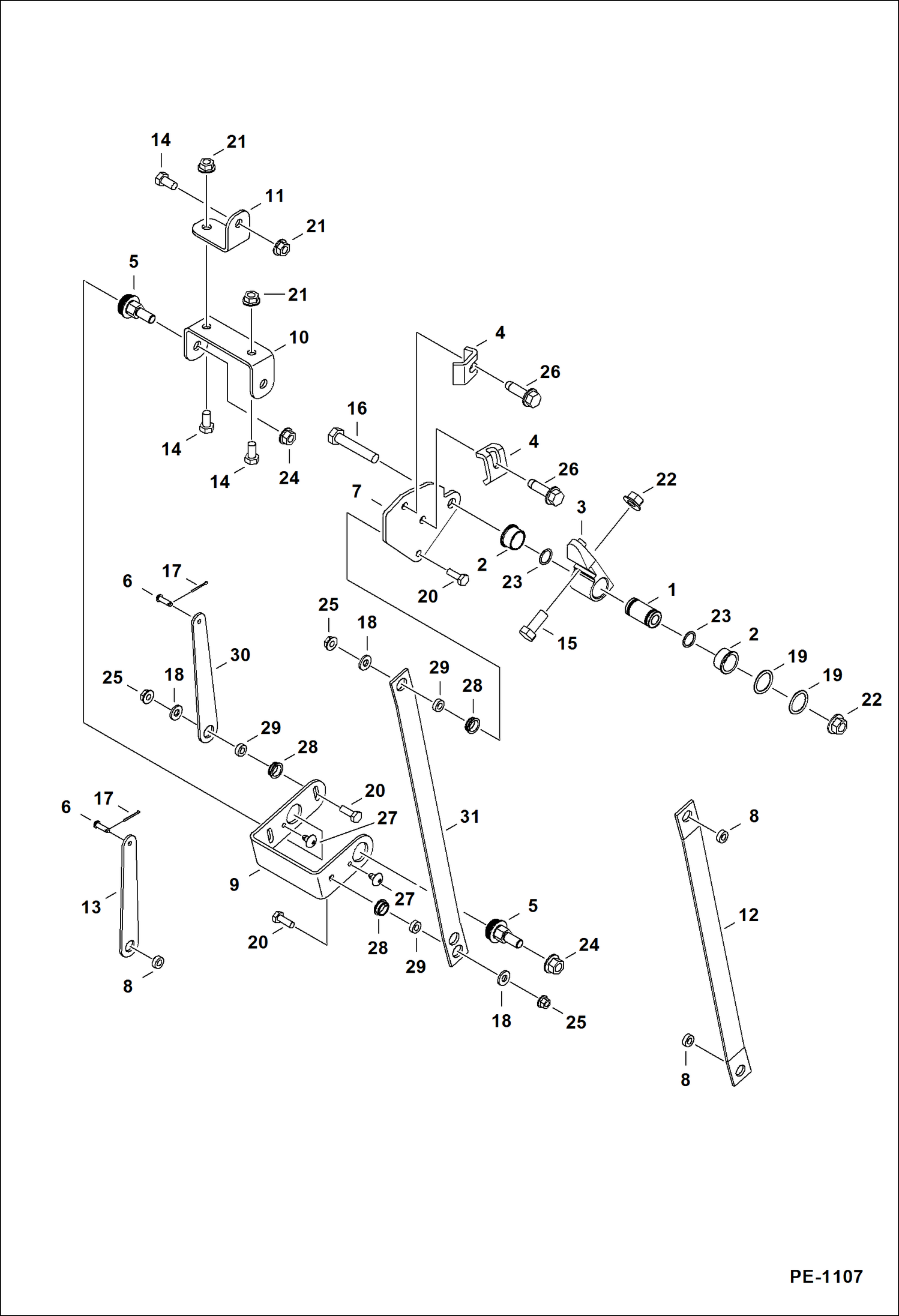

Запчасти Bobcat 325 CONTROLS (Blade) CONTROLS

1

6536545

SLEEVE

2

6536801

BUSHING

3

6537481

MOUNT

4

6562266

CLAMP

5

6675992

BEARING

6

6801068

PIN

7

7137687

PLATE Was 7100534 - A

8

SPACER NLA - original design Use W/O Ref. 28 - Order Ref. 28, 29, & 30 or 31 - Was 6808003 - A

9

7130455

CHANNEL Was 6812939 - A

10

6809120

SUPPORT

11

6809121

ANGLE

12

LINK NLA - original design Use W/O Ref. 28 - Order (2) of Ref. 28 & 29, and (1) of Ref. 31 - Was 6813003 - A

13

LINK NLA - original design Use W/O Ref. 28 - Order Ref. 28-30 - Was 6810427 - A

14

1CM816

BOLT

15

1CM1025

BOLT

16

1CM1055

BOLT

17

1F212

PIN cotter

18

25E13

WASHER 5

19

6536802

WASHER Was 27E6 - A

20

18C412

BOLT

21

51DM8

NUT Was 43DM8 - A

22

51DM10

NUT Was 43DM10 - A

23

58K015

O-RING 10

24

83D6

NUT 5 Was 57D6 - A

25

98D4

NUT Was 62D4 - A

26

84G3720

BOLT Was 84G3724

27

6589675

SCREW

28

6698186

BEARING, CLIP modified design - Use W/Ref. 29-31

29

7155449

SPACER modified design - Use W/Ref. 28, 30, & 31

30

7157674

LINK, SPOOL modified design - Use W/Ref. 28 & 29

31

7157675

LINK, FORMED modified design - Use W/Ref. 28 & 29
