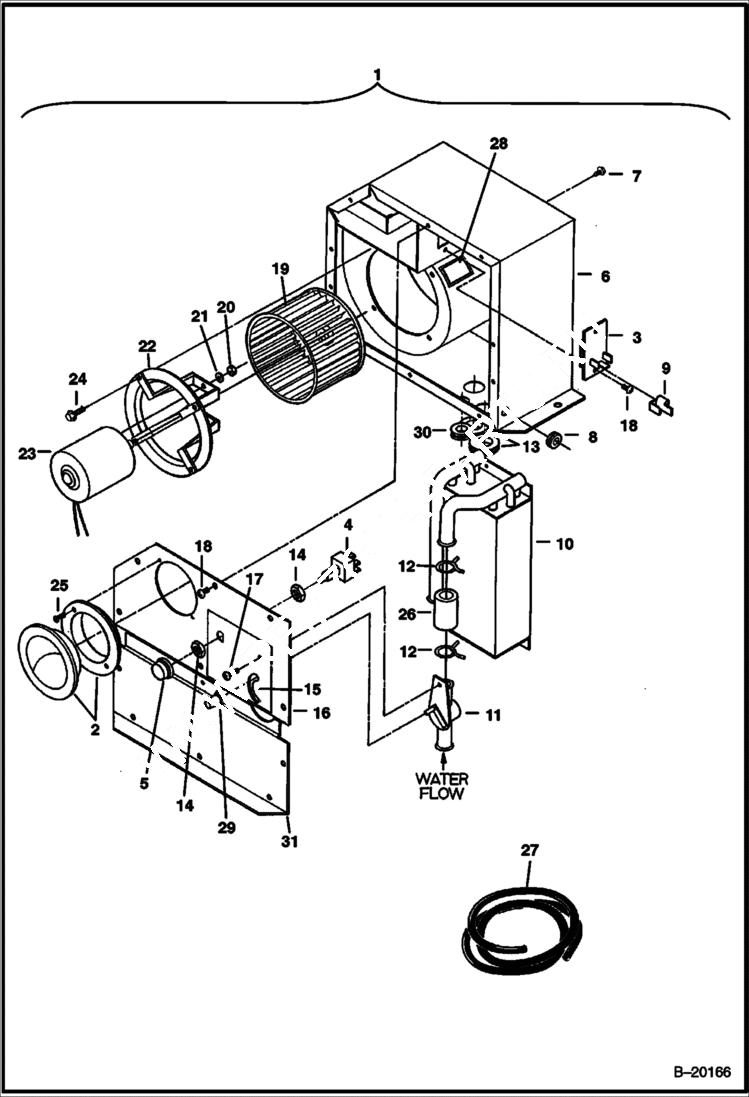

Запчасти Bobcat 325 HEATER (With 3 Speed Fan Motor) (S/N 511820001-511820393) MAIN FRAME

1

6663968

HEATER W/Refs. 2-26 & 28-31

2

6664342

LOUVER

3

6632584

RESISTOR

4

6660659

SWITCH Fan

5

6660822

KNOB Fan Switch

6

6664345

HOUSING Heater

7

6654195

BOLT

8

6654196

GROMMET

9

6660654

CONNECTOR

10

6654790

CORE Heater

11

6654792

VALVE Water Shut Off

12

6654192

CLAMP

13

6641056

GROMMET

14

6624435

NUT

15

6664343

DECAL

16

6664346

COVER Top

17

85G808

SCREW

18

6641066

SCREW

19

6648468

FAN

20

6641073

NUT

21

6641072

WASHER

22

6648467

MOUNT

23

6660658

MOTOR 12 volt-3 Speed

24

6641062

SCREW Was 6640162 - D

25

6662678

SCREW

26

HOSE NLA - 4'' long (102mm) - Order Ref. 27

27

889269

HOSE BULK/FT Bulk - Sold Per Foot

28

6660656

DECAL Wiring

29

6660881

KNOB Water Valve

30

6664344

GROMMET

31

6664347

COVER Bottom
