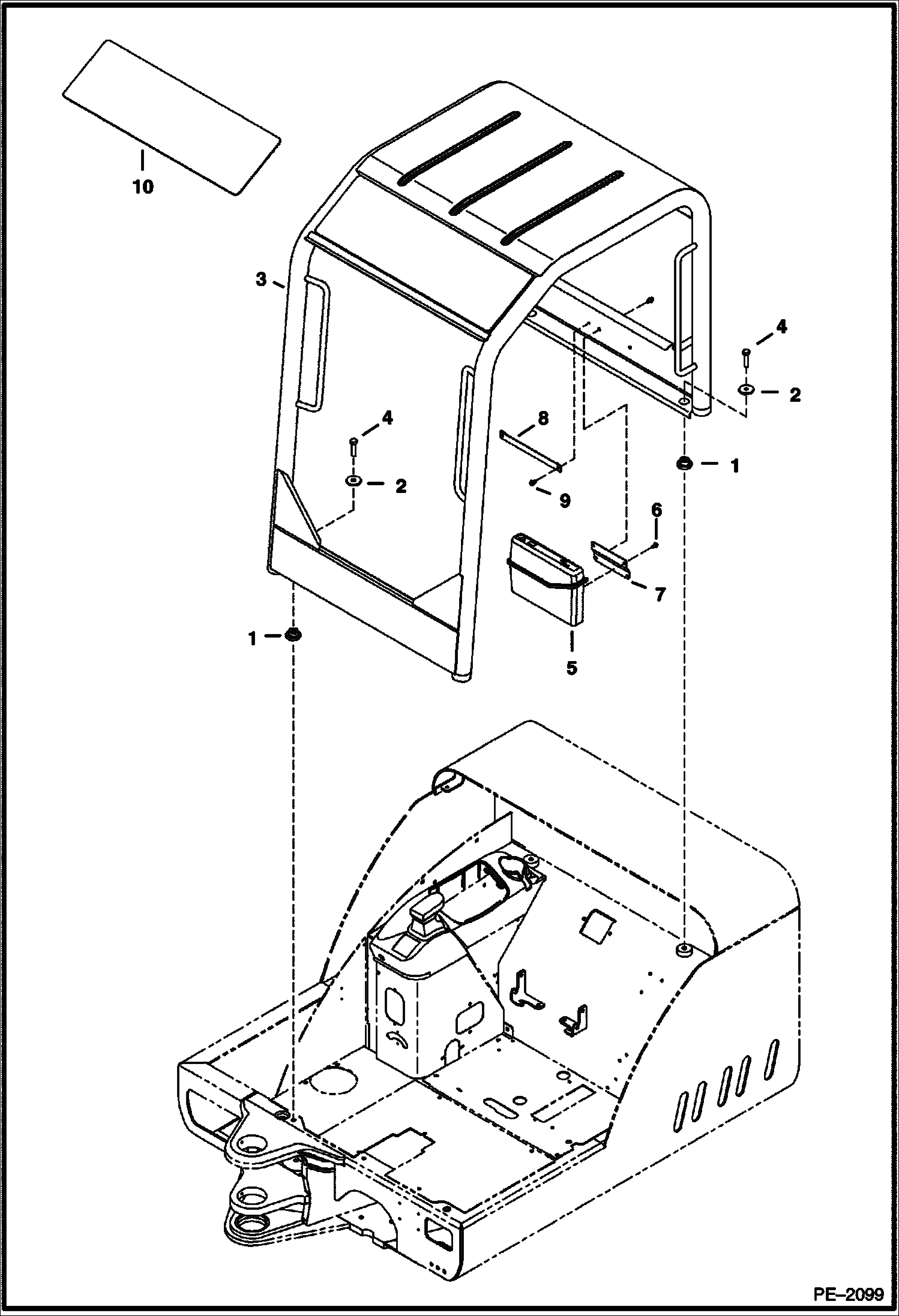

Запчасти Bobcat 325 OPERATOR CANOPY MAIN FRAME

1

7001052

MOUNT, ENG Was 6804026 - A

2

6805244

WASHER

3

CANOPY See Illustration CANOPY KIT/ PE3336 - NLA - Was 6812243 - A

4

10CM1455

BOLT

5

6708827

CONTAINER

6

6702642

SCREW

7

6813083

BRACKET

8

6589347

STRAP

9

26GM8016

SCREW Was 26GM8012 - B,D

10

6811918

WINDOW flat - canopy has flat window - cab has curved - Use 6808882 adhesive, 7102268 primer, & 7110861 cleaner
