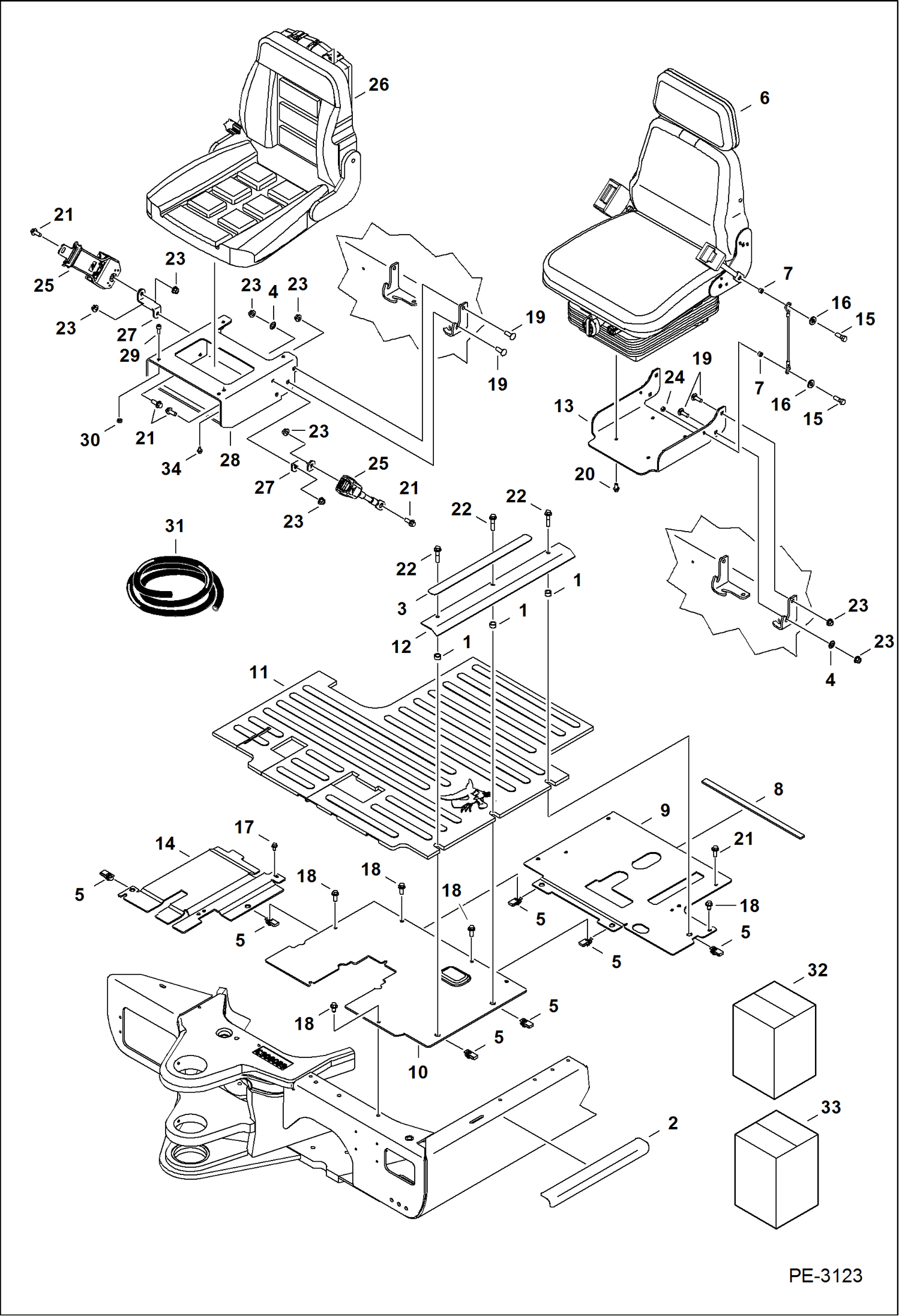

Запчасти Bobcat 325 OPERATOR AREA & SEAT MAIN FRAME

1

6503451

SPACER

2

6588953

TREAD

3

6593245

TREAD

4

6674264

RETAINER NUT

5

6675722

NUT

6

6685657

SEAT, OPERATOR VINYL - EXCAVATOR See Illustration SEAT SUSPENSION/ PE2300 - 328 - Was 6679464

7

6802539

SPACER

8

INSULATION NLA - 17'' (432 mm) long - Order Ref 31

9

6815965

PLATE recessed

9

7135886

FLOORPLATE flat

10

7109688

PLATE Was 6815988

11

7130441

MAT cab floor - Was 7114850 - A

11

7144684

MAT, FLOOR CANOPY

12

6816423

ANGLE

13

6816778

SEATPAN

14

7126871

PLATE floor - Was 7101283 - A

15

1CM825

BOLT

16

25E16

WSHR

17

26GM8016

SCREW

18

29CM1020

BOLT Was 26GM10020B

19

28CM1030

BOLT

20

29CM816

SCREW

21

29CM1025

BOLT

22

29CM1045

BOLT

23

43DM10

NUT

24

53DM8

NUT

25

6670865

SEAT BELT

26

7175003

SEAT, OPERATOR VINYL 325 - vinyl - Was 6685658 - A

26

6686150

BOX

27

6817632

BRACKET

28

MOUNT W/A NLA - W/O hole - Order 7128787 - Was 6817621

28

7128787

MOUNT W/A W/ hole

29

3GM820

SCREW

30

4DM8

NUT

31

7001454

SEAL, BULK/FT bulk - sold per foot - Was 6803188 - A

32

6690059

SEAT RAIL KIT seat rail - slide, handle, knob - for 6685657 seat

33

6690060

SEAT RAIL KIT seat rail - slide, handle, knob - for 6685658 seat

34

26GM8013

BOLT
