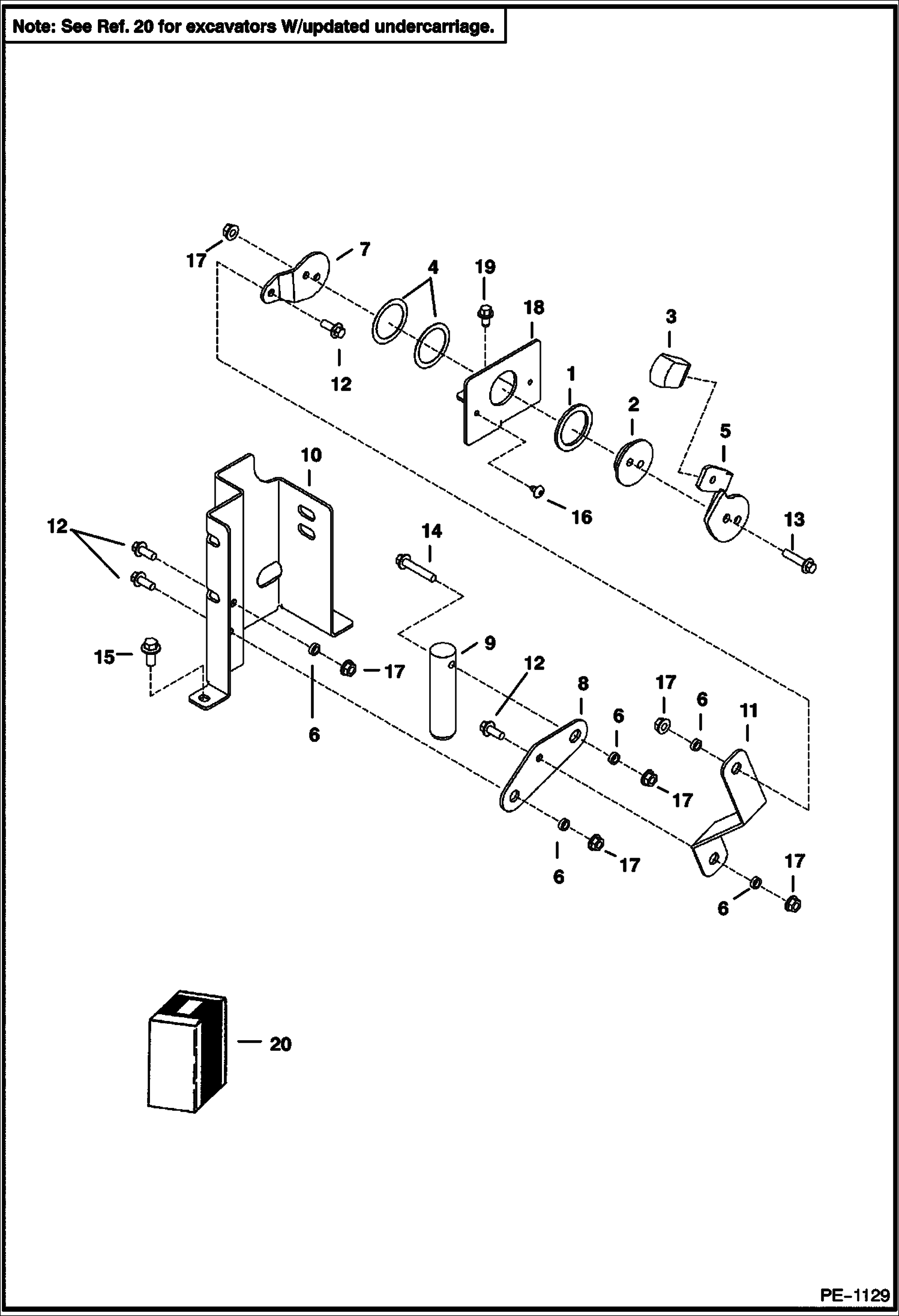

Запчасти Bobcat 325 UPPERSTRUCTURE LOCK (Console Mounted) (S/N (325) 234113833 & Below, (328) 234213828 & Below) MAIN FRAME

1

6567962

WASHER

2

6567963

SPACER

3

6586856

GRIP lever

4

6630945

WASHER

5

6717393

LEVER lock

6

6807220

SPACER

7

6808596

LEVER

8

6808597

LEVER

9

6808598

PIN

10

6808599

BRACKET

11

6809086

LINK

12

29CM820

SCREW

13

29CM835

BOLT

14

29CM845

BOLT

15

29CM1020

BOLT Was 26GM10020B - B

16

6589675

SCREW

17

51DM8

NUT

18

6809675

BRACKET

19

26GM8016

SCREW

20

LOCK ASSY See BTIE-082 - for excavators W/updated undercarriage
