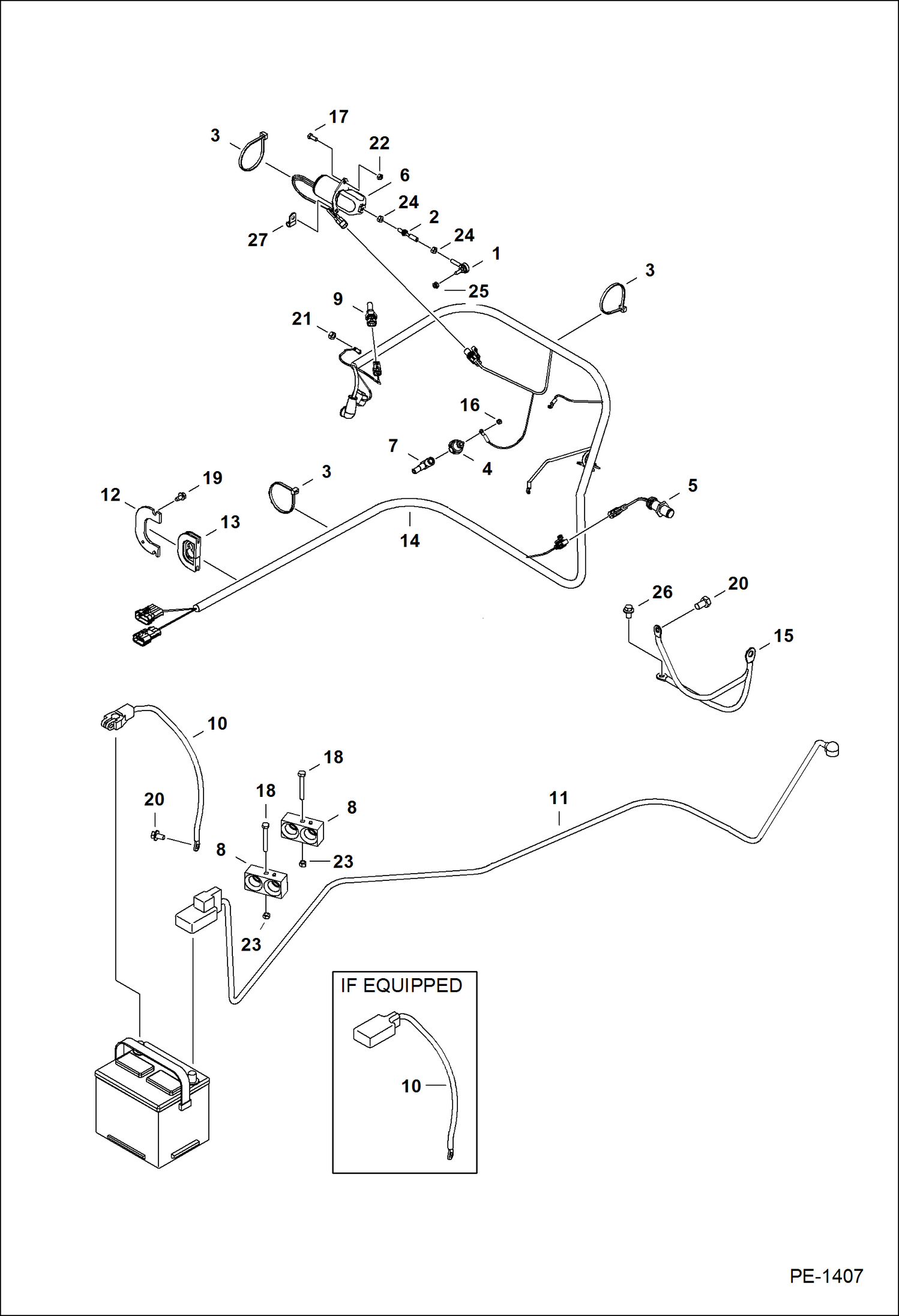

Запчасти Bobcat 325 ELECTRICAL (Engine) ELECTRICAL SYSTEM

1

6578363

ROD END

2

6578366

BALL JOINT

3

6624289

STRAP, TIE

4

6631010

SWITCH, PRESS OIL ENG pressure - engine oil

5

6684037

SENSOR engine speed - Was 6658260 - A

6

6681513

SOLENOID engine shutoff - Was 6667993 - A

7

6707040

ELBOW

8

6715197

CLAMP

9

6718415

SWITCH engine temp

10

6807431

CABLE negative

11

6809043

CABLE positive

12

6810364

GROMMET

13

6810365

GROMMET PLATE

14

HARNESS NLA - engine - order 6810447

14

6810447

HARNESS engine

14

6810447

HARNESS

15

6810763

CABLE negative

16

12D8

NUT

17

1CM616

SCREW

18

1CM860

BOLT

19

26GM8016

SCREW

20

29CM1016

BOLT

21

4DM8

NUT

22

53DM6

NUT

23

53DM8

NUT

24

62D4

NUT

25

66D4

NUT

26

6CM1220

BOLT

27

30H19

CLIP
