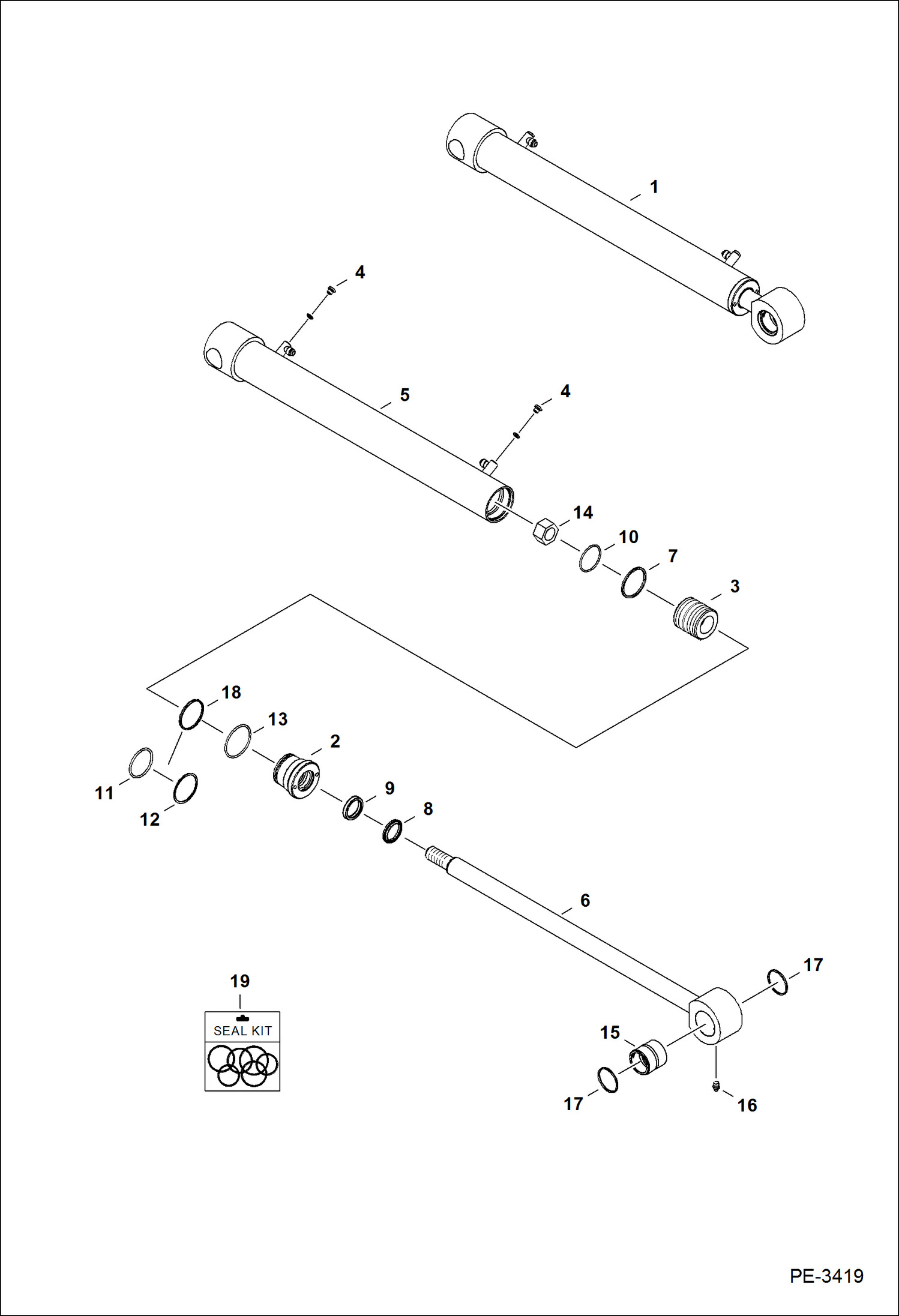

Запчасти Bobcat 325 SWING CYLINDER HYDRAULIC SYSTEM

1

CYLINDER NLA - Order 7169731 - Also Order Ref. 15-17 - Was 6809857 - A

1

7169731

CYLINDER, SWING Ref. 2-14 - Also Order Ref. 15-17

2

6586721

HEAD Was 6538367 - A

3

6809856

PISTON Was 6589759 - A

4

90KV2

PLUG W/ 95K000003B o-ring allen - socket head - tapered boss face

4

6812170

PLUG W/ 75K3 o-ring hex head- flat boss face

4

95K3

O'RING for tapered boss face

4

75K3

O-RING flat boss face Was 73K000003B - D

5

HOUSING NLA - 27.49'' (698 mm) long to bushing center - Order Ref. 1 - Was 6809494 - A

5

7169733

TUBE, CASE CYL 26.93'' (684 mm) long to bushing center - W/Ref. 4 & 13

6

ROD NLA - 29.28'' (744 mm) long to bushing center - Order Ref. 1 - Was 6809497 - A

6

7169735

SHAFT, ROD CYL 29.96'' (761 mm) long to bushing center - Also Order Ref. 15-17

7

6536642

RING Was 947088B - A

8

6666543

WIPER, ROD CYL Was 6665086 - A

9

6667325

SEAL Was 6667326 - A

10

25K30130

O RING 10 Was 54K30130 - B

11

25K40204

O-RING Was 54K40204 - B

12

73K227

RING Was 73K000232B - B

13

82K229

ORING Was 58K229 - B

14

92D16

NUT Was 6804592 - A

15

6808997

BUSHING Was 6807979 - A

16

10H25

FITTING, GREASE 5

17

6660075

SEAL Was 6652915 - A

18

7207224

SEAL, QUAD

19

7138015

KIT, SEAL Ref. 7-10, 13, 14, & 18 - Was 6809571 - A
