VALVE SECTION (Left Travel) (S/N 232312387, 232412118-12127 & 12130 & Above)

Запчасти Bobcat 325 VALVE SECTION (Left Travel) (S/N 232312387, 232412118-12127 & 12130 & Above) HYDRAULIC SYSTEM

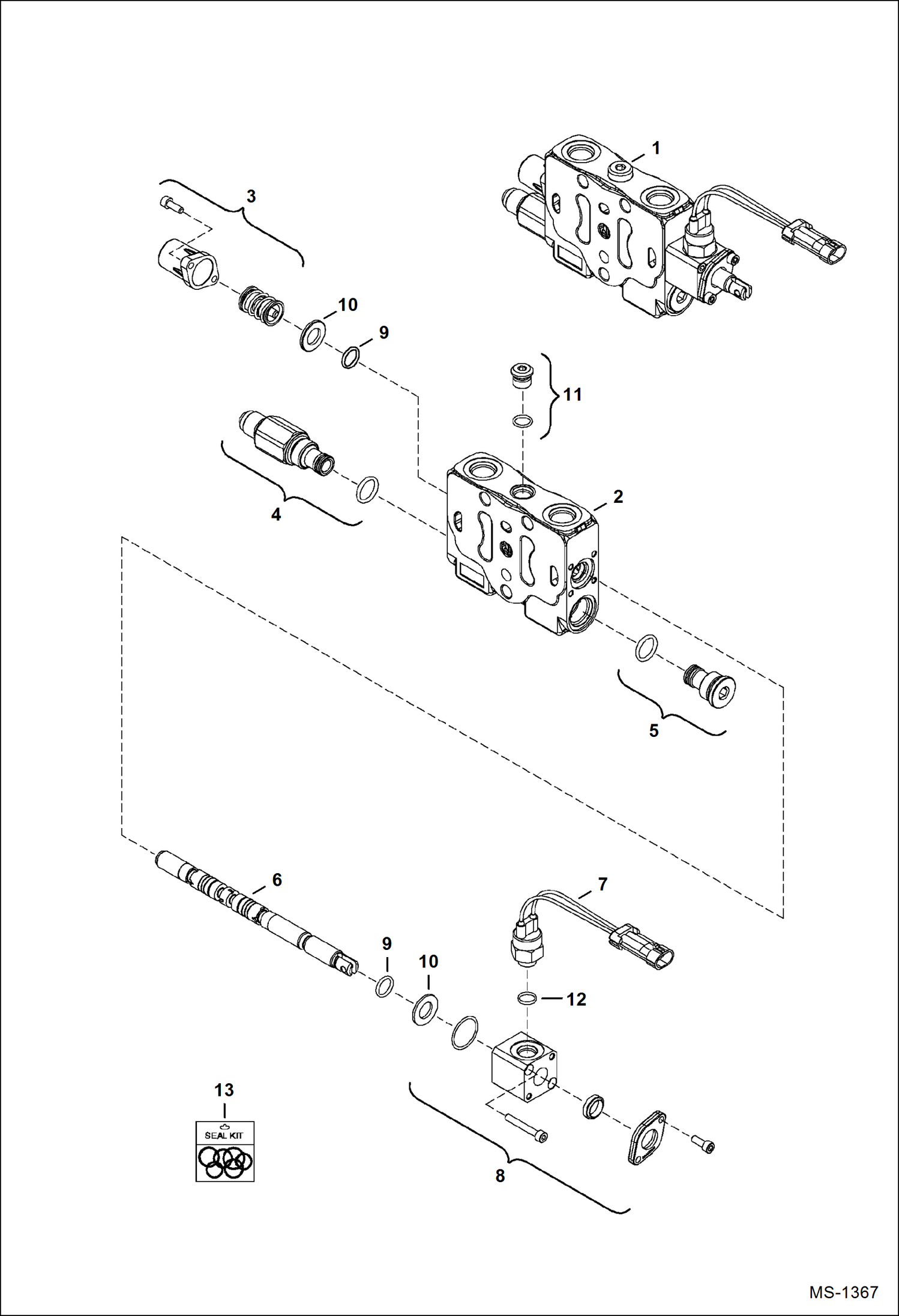

Схема запчастей Bobcat 325 - VALVE SECTION (Left Travel) (S/N 232312387, 232412118-12127 & 12130 & Above) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6680115

VALVE section - W/Ref. 2-12

2

BLOCK NSS - order Ref. 1

3

6680068

KIT control

4

6680059

VALVE assy.

5

6680057

PLUG assy.

6

SPOOL NSS - order Ref. 1

7

6679913

SWITCH assy.

8

6679889

SWITCH Was 6680072 - D

9

6680094

O-RING

10

6680095

WASHER

11

6680093

PLUG assy.

12

6679605

O-RING

13

6680049

SEAL KIT
