VALVE SECTION (Bucket) (S/N 232312387, 2324 12118-12127 & 12130 & Above)

Запчасти Bobcat 325 VALVE SECTION (Bucket) (S/N 232312387, 2324 12118-12127 & 12130 & Above) HYDRAULIC SYSTEM

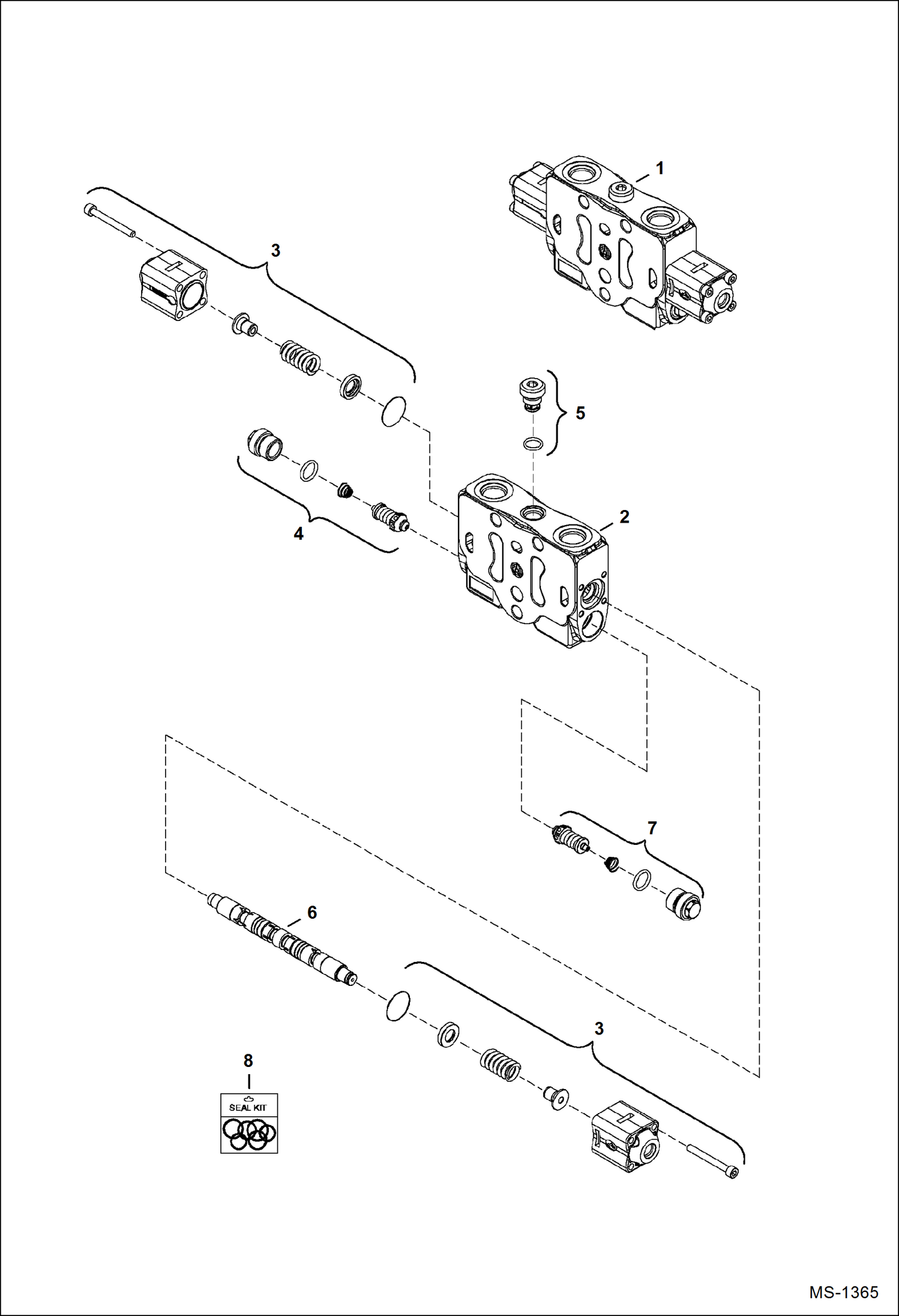

Схема запчастей Bobcat 325 - VALVE SECTION (Bucket) (S/N 232312387, 2324 12118-12127 & 12130 & Above) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6680113

VALVE BUCKET section - W/Refs. 2-7

2

BLOCK NSS - order Ref. 1

3

6680067

KIT control

4

6685304

VALVE assy - 3400 PSI - port relief/anti cav - Was 6680061 - A

5

6680092

VALVE, LOCK LOAD assy.

6

SPOOL NSS - order Ref. 1

7

6680065

VALVE

8

6680047

SEAL KIT
