VALVE SECTION (Auxiliary) (S/N 232312387, 2324 12118-12127 & 12130 & Above)

Запчасти Bobcat 325 VALVE SECTION (Auxiliary) (S/N 232312387, 2324 12118-12127 & 12130 & Above) HYDRAULIC SYSTEM

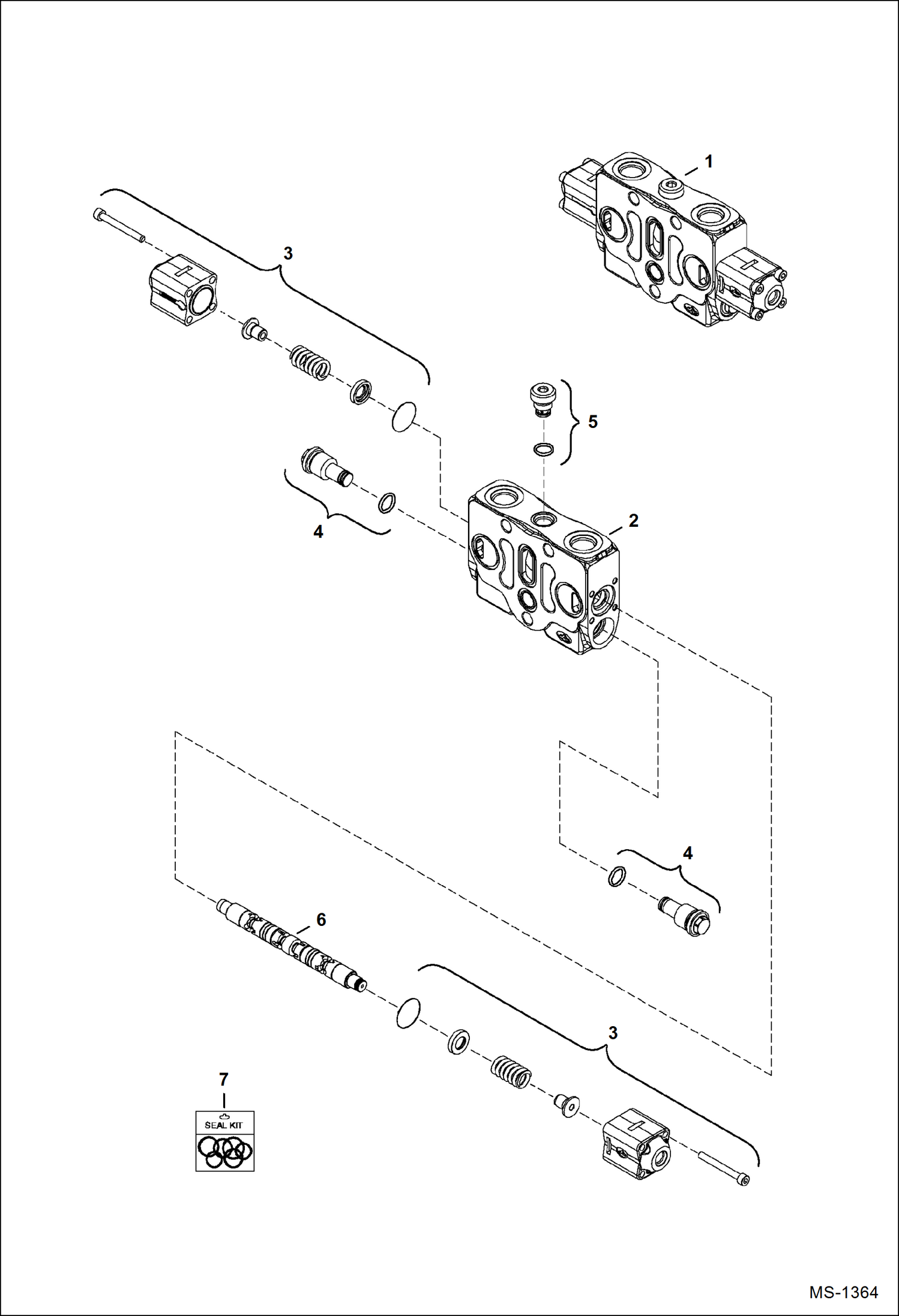

Схема запчастей Bobcat 325 - VALVE SECTION (Auxiliary) (S/N 232312387, 2324 12118-12127 & 12130 & Above) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6680112

VALVE section - W/Refs. 2-6

2

BLOCK NSS - order Ref. 1

3

6680067

KIT control

4

6686233

PLUG assy. - Was 6680060 - A

5

6680092

VALVE, LOCK LOAD assy.

6

SPOOL NSS - order Ref. 1

7

6680046

SEAL KIT
