VALVE SECTION (Blade) (S/N 232312387, 2324 12118-12127 & 12130 & Above)

Запчасти Bobcat 325 VALVE SECTION (Blade) (S/N 232312387, 2324 12118-12127 & 12130 & Above) HYDRAULIC SYSTEM

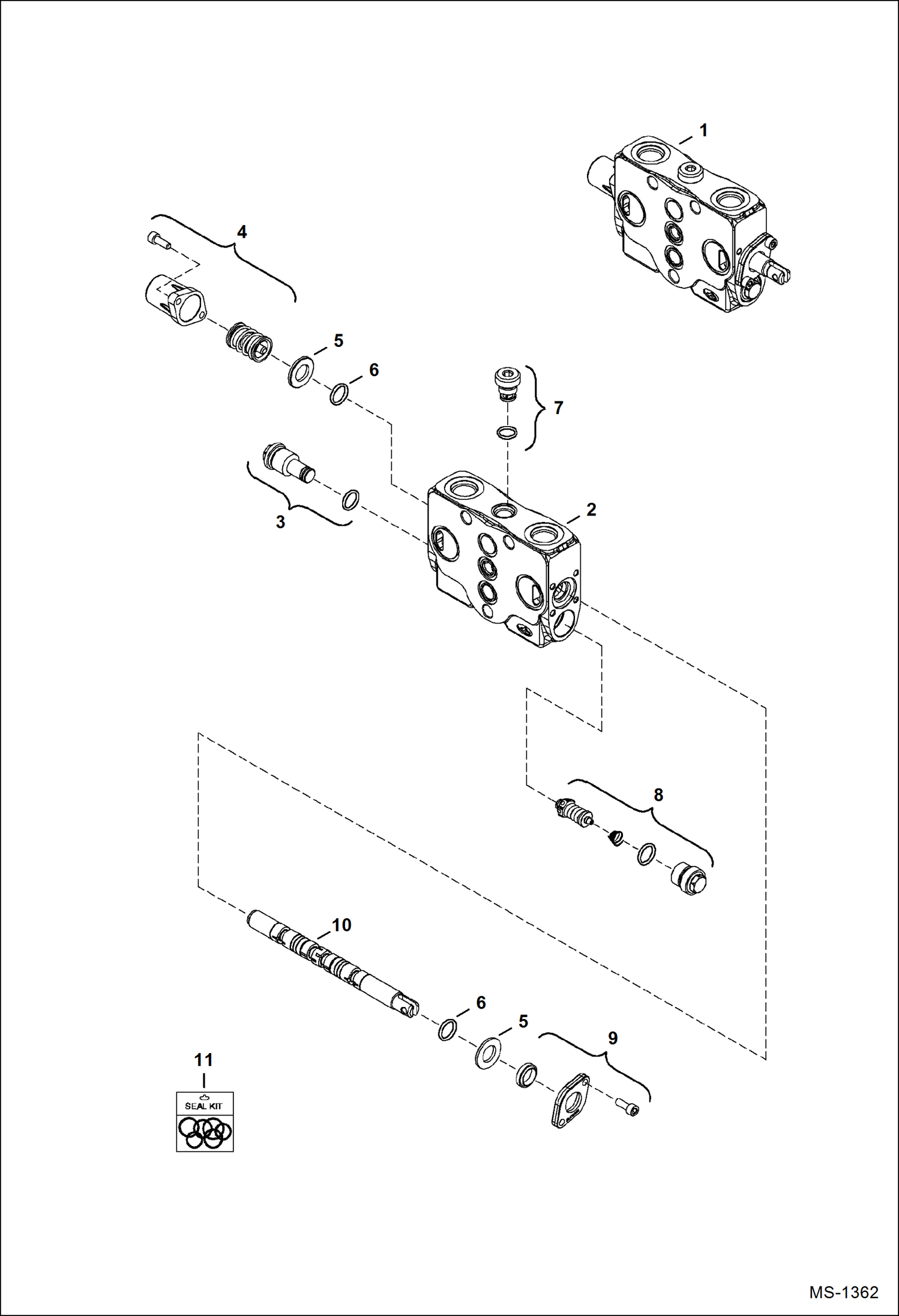

Схема запчастей Bobcat 325 - VALVE SECTION (Blade) (S/N 232312387, 2324 12118-12127 & 12130 & Above) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6680110

VALVE section - W/Ref. 2-10

2

BLOCK NSS - order Ref. 1

3

6686233

PLUG assy. - Was 6680060 - A

4

6693138

KIT control - Was 6680109 - A

5

6680095

WASHER

6

6680094

O-RING

7

6680092

VALVE, LOCK LOAD assy.

8

6685304

VALVE assy - 3400 PSI - port relief/anti cav - Was 6680061 - A

9

6680097

KIT

10

SPOOL NSS - order Ref. 1

11

6680044

SEAL KIT
