VALVE SECTION (Slew) (S/N 232312387, 232412118-12127 & 12130 & Above)

Запчасти Bobcat 325 VALVE SECTION (Slew) (S/N 232312387, 232412118-12127 & 12130 & Above) HYDRAULIC SYSTEM

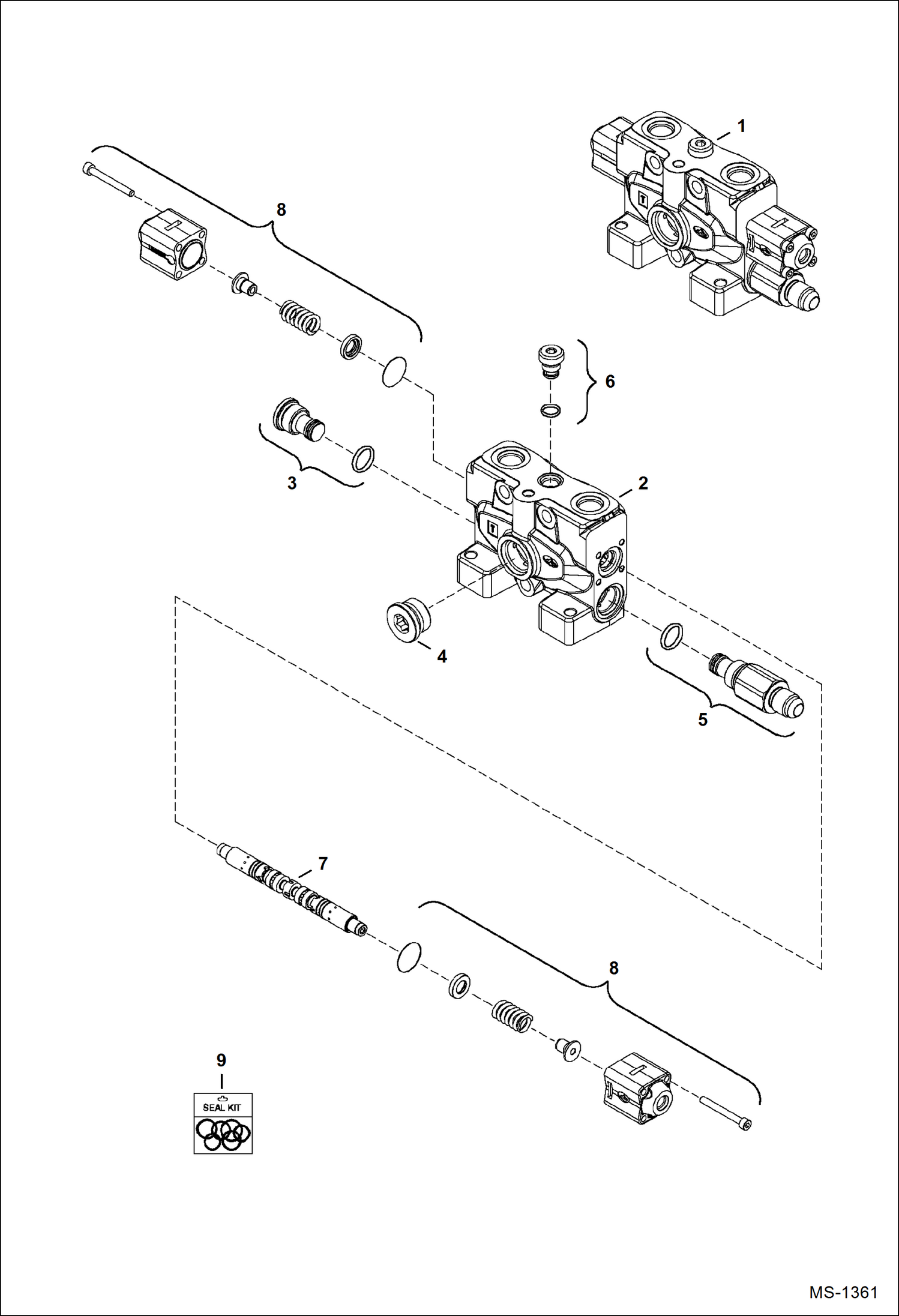

Схема запчастей Bobcat 325 - VALVE SECTION (Slew) (S/N 232312387, 232412118-12127 & 12130 & Above) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6684404

VALVE section - W/Ref. 2-8 - Was 6680033 - A

2

BLOCK NSS - order Ref. 1

3

6680057

PLUG assy.

4

6680058

PLUG assy.

5

6680059

VALVE

6

6680092

VALVE, LOCK LOAD assy.

7

SPOOL NSS - order Ref. 1

8

6680067

KIT control

9

6680043

SEAL KIT

Выбрано товаров: 0
