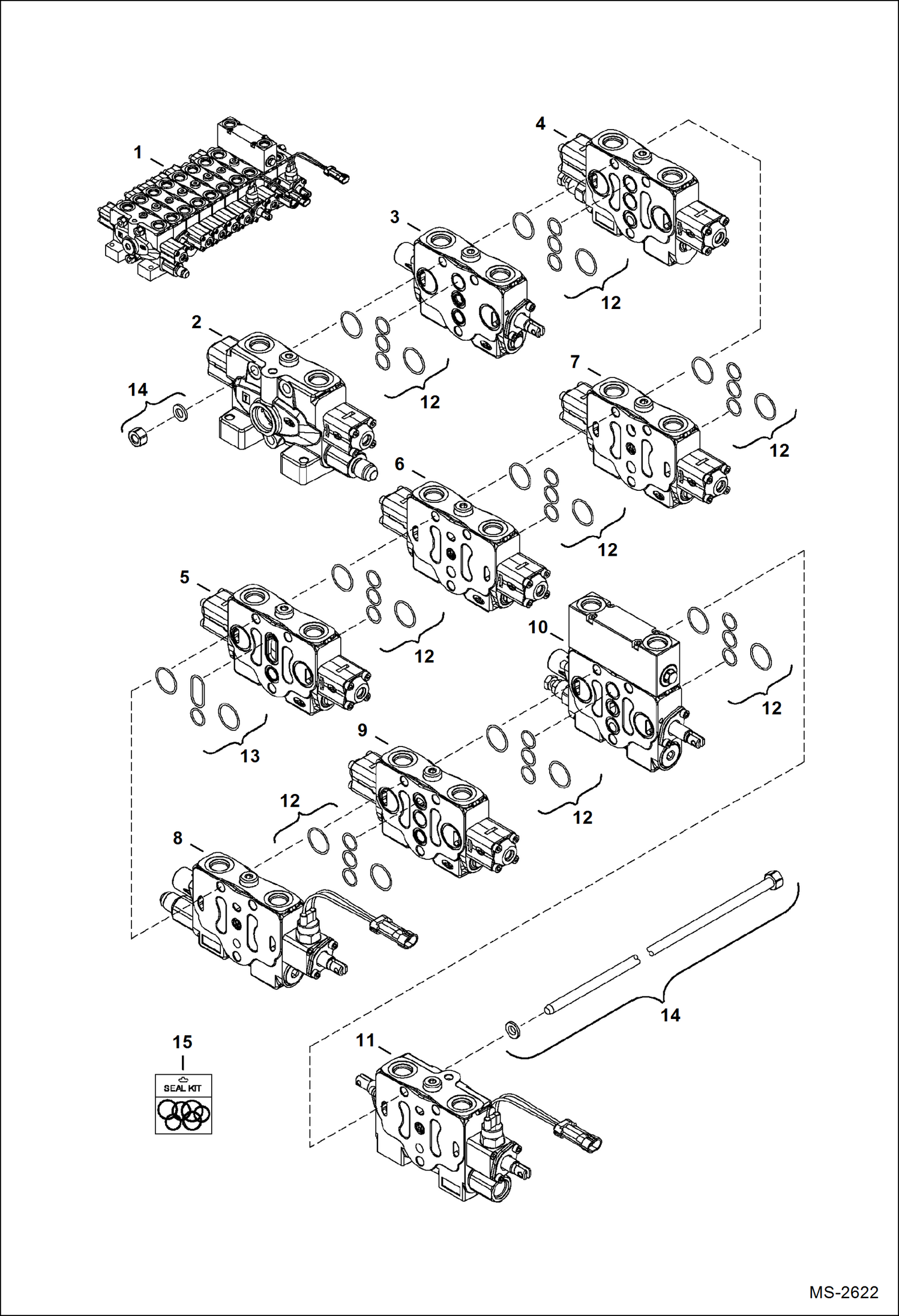

Запчасти Bobcat 325 CONTROL VALVE (S/N 232312387, 232412118-12127 & 12130 & Above) HYDRAULIC SYSTEM

1

6678062

VALVE Ref. 2-14

2

6684404

VALVE See Illustration VALVE SECTION/ MS1361 - slew

3

6680110

VALVE See Illustration VALVE SECTION/ MS1362 - blade

4

6680111

VALVE See Illustration VALVE SECTION/ MS1363 - boost

5

6680112

VALVE See Illustration VALVE SECTION/ MS1364 - aux

6

6680113

VALVE BUCKET See Illustration VALVE SECTION/ MS1365 - bucket

7

6680114

VALVE See Illustration VALVE SECTION/ MS1366 - arm

8

6680115

VALVE See Illustration VALVE SECTION/ MS1367 - LH travel

9

6680116

VALVE See Illustration VALVE SECTION/ MS1368 - boom

10

6680117

VALVE See Illustration VALVE SECTION/ MS2624 - boom swing

11

6680118

VALVE RT TRAVEL See Illustration VALVE SECTION/ MS1370 - RH travel

12

6680066

KIT

13

6680064

KIT

14

6680069

KIT

15

6681502

COMPLETE SEAL KIT
