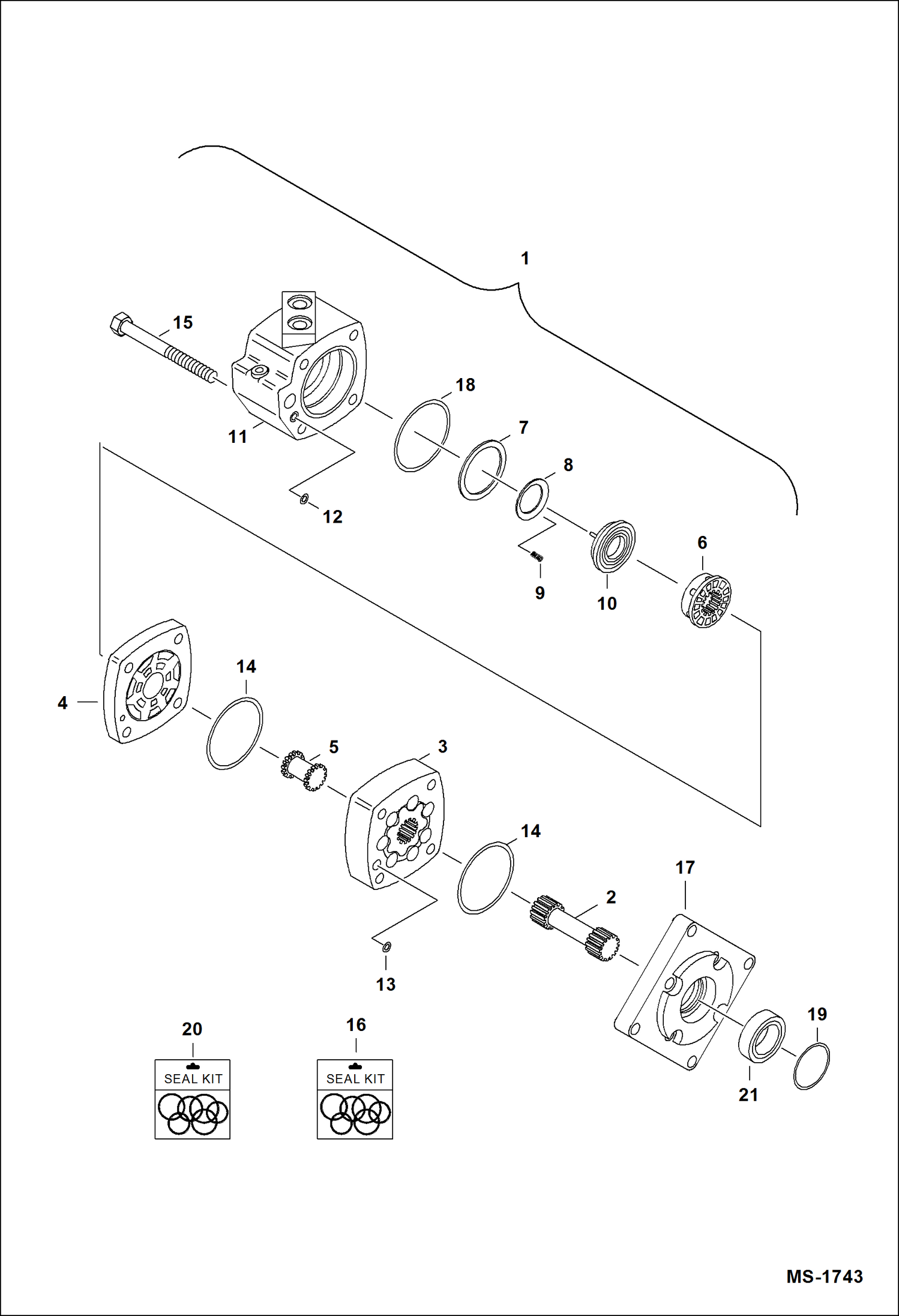

Запчасти Bobcat 325 SWING MOTOR HYDRAULIC SYSTEM

1

6676979

MOTOR swing

2

6659489

SHAFT

3

6667329

GEROLER assy.

4

6661809

PLATE Was 6658759 - A

5

6513518

DRIVE drive

6

6667330

VALVE Was 6678531 - A

7

6513520

SEAL

8

6513529

SEAL inner

9

6190121

SPRING

10

6658757

RING balancing

11

6669198

HOUSING valve

12

25K20010

O RING 10

13

6667332

SEAL

14

6513524

O'RING

15

6659488

BOLT Was 6659587 - A

16

SEAL KIT NLA - rear - Order Ref. 22 - Was 6664823

17

6513528

FLANGE mounting

18

58K44

O RING 10

19

6513799

SEAL

20

6685181

SEAL KIT Also Order Ref. 18 - Was 6658760 - A

21

6513681

BEARING
