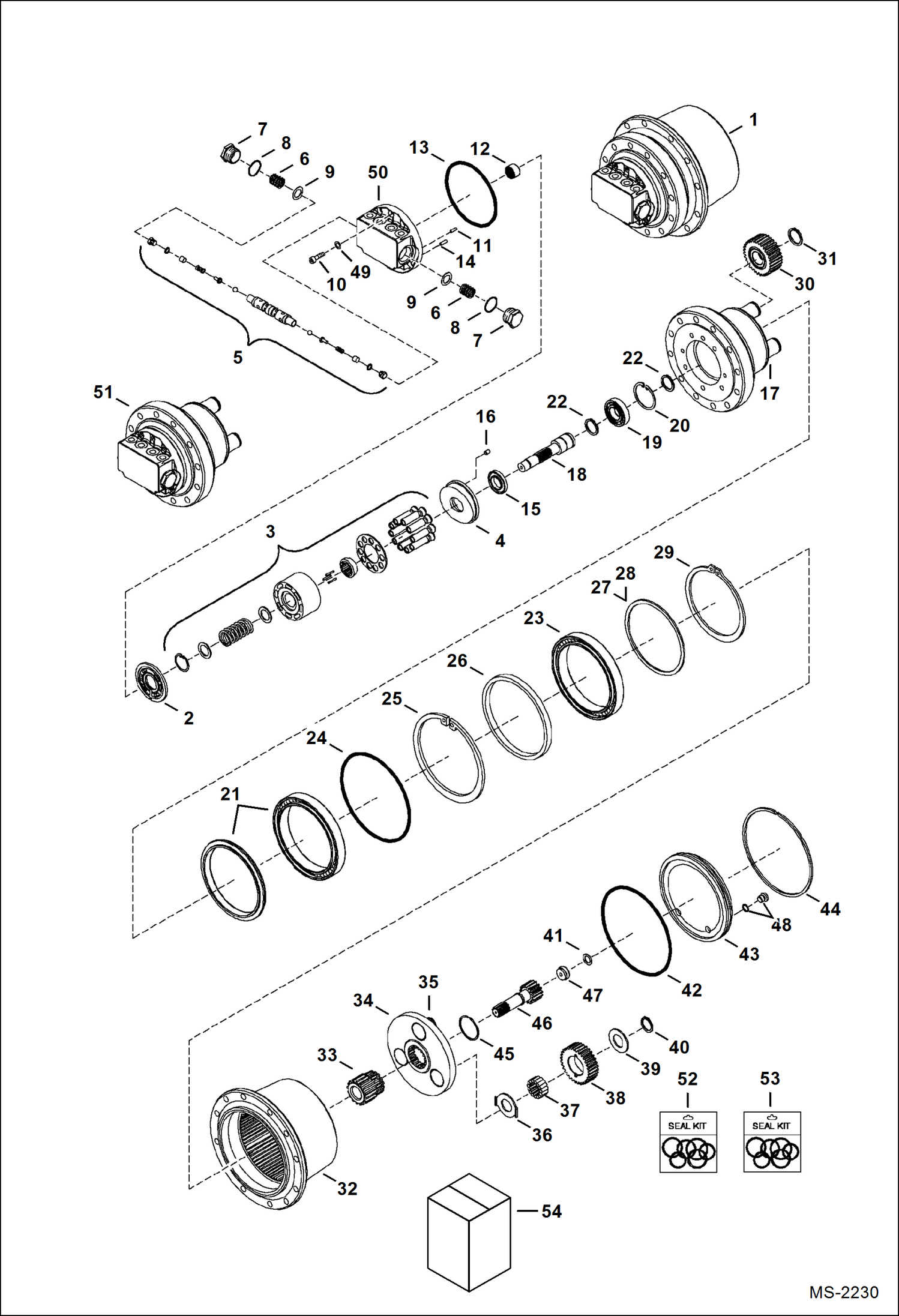

Запчасти Bobcat 325 TRAVEL MOTOR (12 Hole Mount) (S/N 232312280 & Above, 232412043 & Above HYDRAULIC SYSTEM

1

6692633

MOTOR, DRIVE HYD W/Ref. 2-51 - Was 6677665 - A

2

6671905

PLATE

3

6688112

KIT rotary

4

6669126

PLATE Was 6690373 - A

5

6698694

SPOOL, VALVE Was 6667786 - A

6

6667784

SPRING Was 6688105 - A

7

6667783

PLUG Was 6688104 - A

8

6667777

O-RING

9

6667785

WASHER Was 6688106 - A

10

6688108

BOLT

11

6688111

PIN

12

6667781

BEARING

13

6667779

O-RING

14

6667782

DOWEL PIN

15

6669125

SEAL

16

6667776

DOWEL PIN

17

6690374

HUB

18

6690375

SHAFT

19

6669124

BEARING

20

6669131

SNAP RING

21

6669101

BEARING

22

6669130

SNAP RING

23

6669110

BEARING, MOTOR DRIVE

24

6669108

O-RING

25

6669105

SNAP RING

26

6669100

SPACER

27

6669120

SHIM

28

6669123

SHIM

29

6669104

SNAP RING

30

6669097

GEAR, MOTOR SPRING

31

6669102

SNAP RING

32

6683223

HOUSING

33

6669098

GEAR

34

6669261

CARRIER

35

6690376

GEAR PIN

36

6669260

WASHER

37

6669118

BEARING

38

6669262

GEAR

39

6669112

WASHER

40

6669117

SNAP RING

41

6671929

SHIM

42

6669107

O-RING

43

6690377

FLANGE

44

6669106

SNAP RING

45

6669103

SNAP RING

46

6669259

SHAFT

47

6667747

SPACER

48

6676161

PLUG

49

6667788

WASHER

50

6690372

COVER

51

6698695

MOTOR, HUB ASSY W/Ref. 2-20, 22, 49, & 50

52

6669129

SEAL KIT W/Ref. 8, 13, 15, 24, & 42

53

6669128

SEAL KIT W/Ref. 52 & 21
