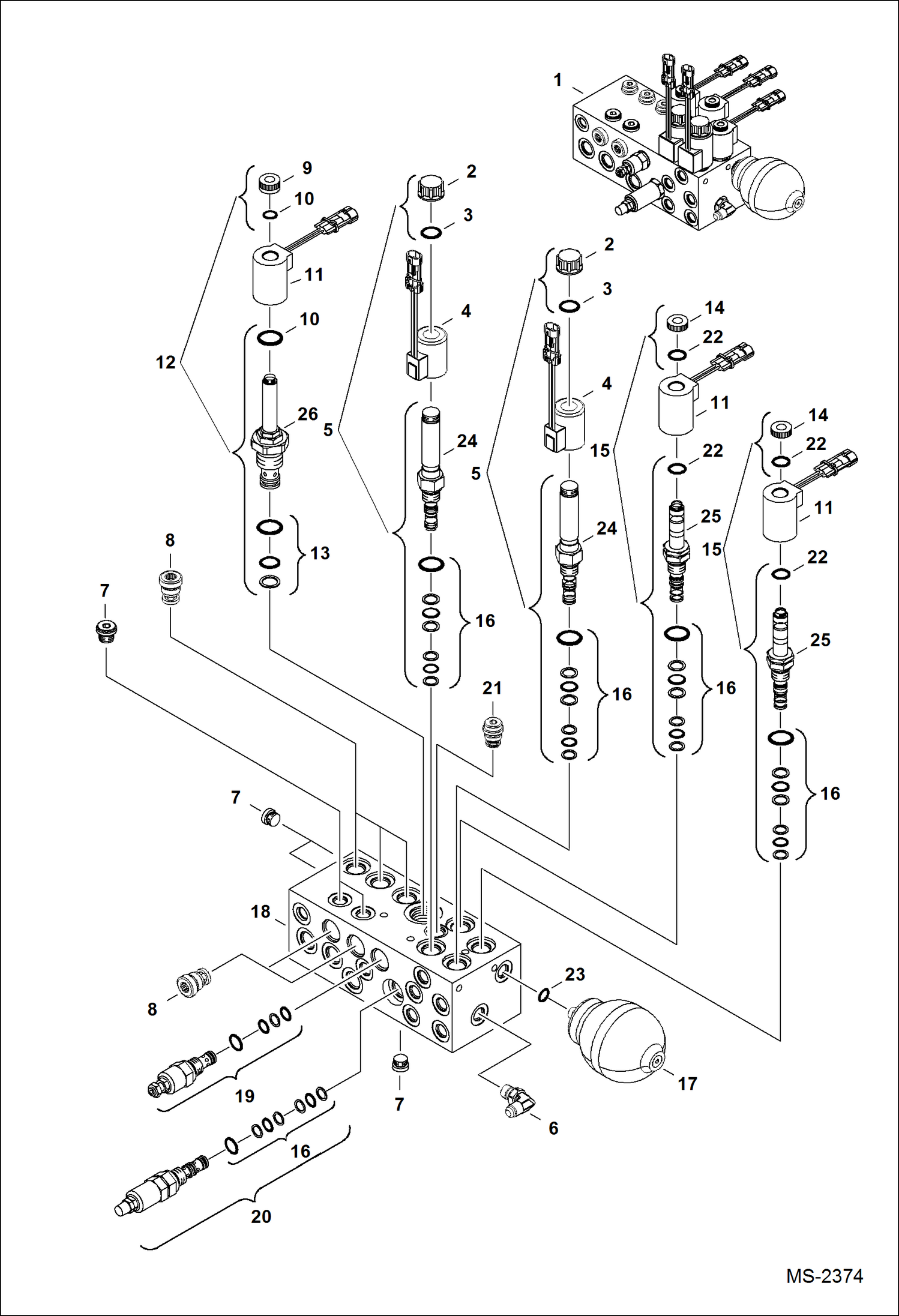

Запчасти Bobcat 325 MANIFOLD ASSY HYDRAULIC SYSTEM

1

6685164

MANIFOLD assy. - Ref. 2-23

2

6679075

NUT

3

6679684

O-RING

4

6679074

COIL

5

6679032

VALVE W/Ref. 2, 3, 16 & 24

6

6679065

ELBOW

7

6678992

PLUG

8

6679062

VALVE

9

6679077

NUT

10

6679685

O-RING

11

6678984

COIL

12

6679510

VALVE W/Ref. 9, 10, 13 & 26

13

6679512

SEAL KIT

14

6679076

NUT

15

6678988

VALVE W/Ref. 14, 16, 22 & 25

16

6679078

SEAL KIT

17

6685832

ACCUMULATOR Was 6679031 - A

18

BLOCK NSS - Order Ref. 1

19

6686169

ACCUMULATOR

20

6692333

VALVE preset to 32.5 bar

21

6678990

VALVE

22

6679509

O-RING

23

79K6

O RING 10

24

STEM NSS - Order Ref, 5

25

STEM NSS - Order Ref. 15

26

STEM NSS - Order Ref. 12
