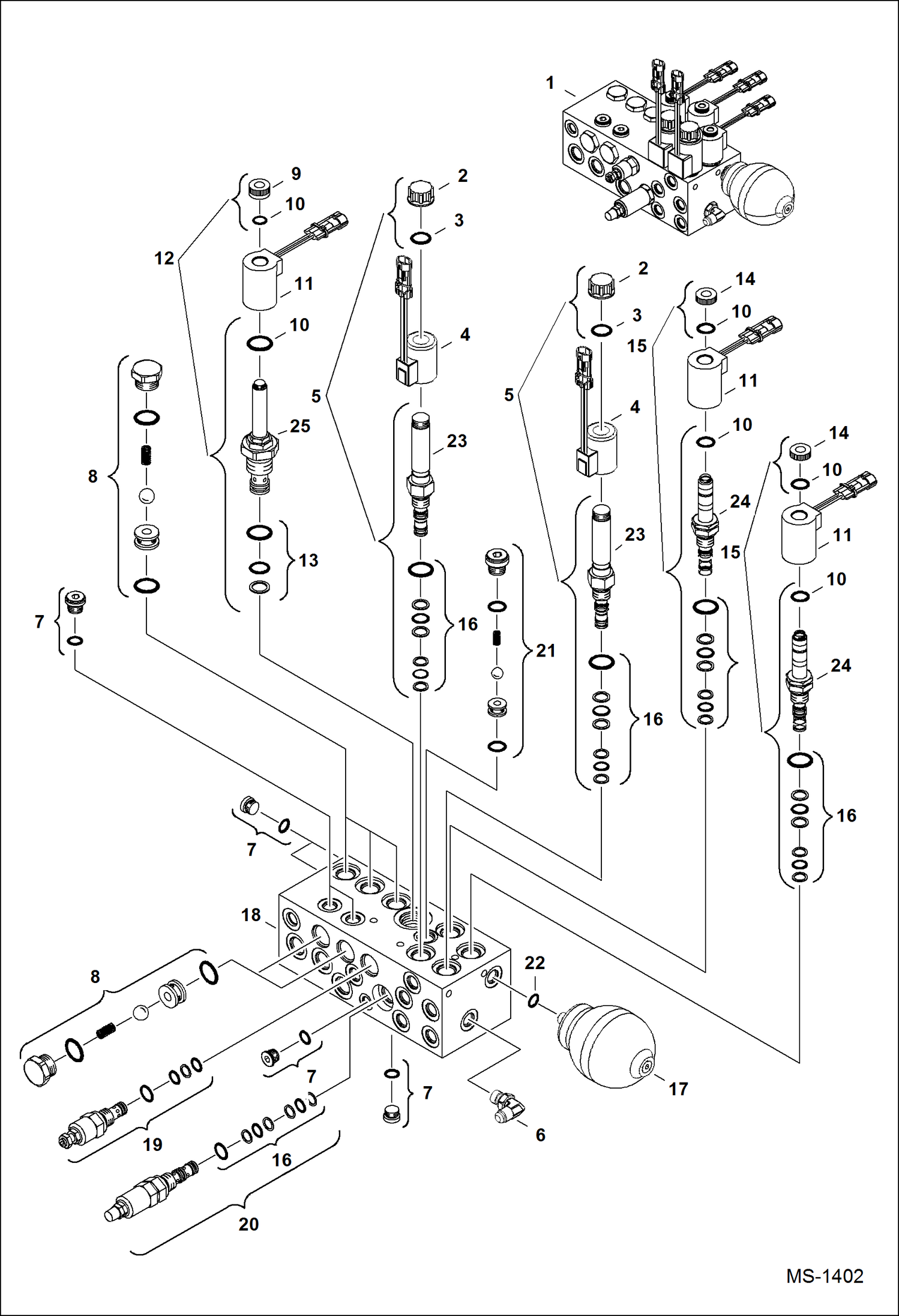

Запчасти Bobcat 325 MANIFOLD ASSY (S/N 232311951 & Above and 232411764 & Above) HYDRAULIC SYSTEM

1

MANIFOLD NLA - assy - Ref. 2-22 - Order 6685164 - Was 6678060 - A

1

MANIFOLD See Illustration MANIFOLD ASSY/ MS2374 NLA - assy - Ref. 2-22 - Order 6685164 Manifold - Was 6685164 - A

2

6679075

NUT

3

6679684

O-RING

4

6679074

COIL

5

6679032

VALVE W/Ref. 2, 3, 16 & 23

6

6679065

ELBOW

7

6678992

PLUG assy - w/o-ring

8

6679062

VALVE

9

6679077

NUT

10

6679685

O-RING

11

6678984

COIL

12

6679510

VALVE W/Ref. 9, 10, 13 & 25

13

6679512

SEAL KIT

14

6679076

NUT

15

6678988

VALVE W/Ref. 10, 14, 16 & 24

16

6679078

SEAL KIT

17

ACCUMULATOR NLA - Order 6686169 - Was 6679031 - A

17

6686169

ACCUMULATOR Use W/Manifold 6685164

18

BLOCK NSS - order Ref. 1

19

6675658

VALVE main relief - Was 6679063 - A

20

6679033

VALVE preset to 30 bar

20

6692333

VALVE preset to 32.5 bar

21

6678990

VALVE assy

22

79K6

O RING 10

23

STEM NSS - Order Ref. 5

24

STEM NSS - Order Ref. 15

25

STEM NSS - Order Ref. 12
