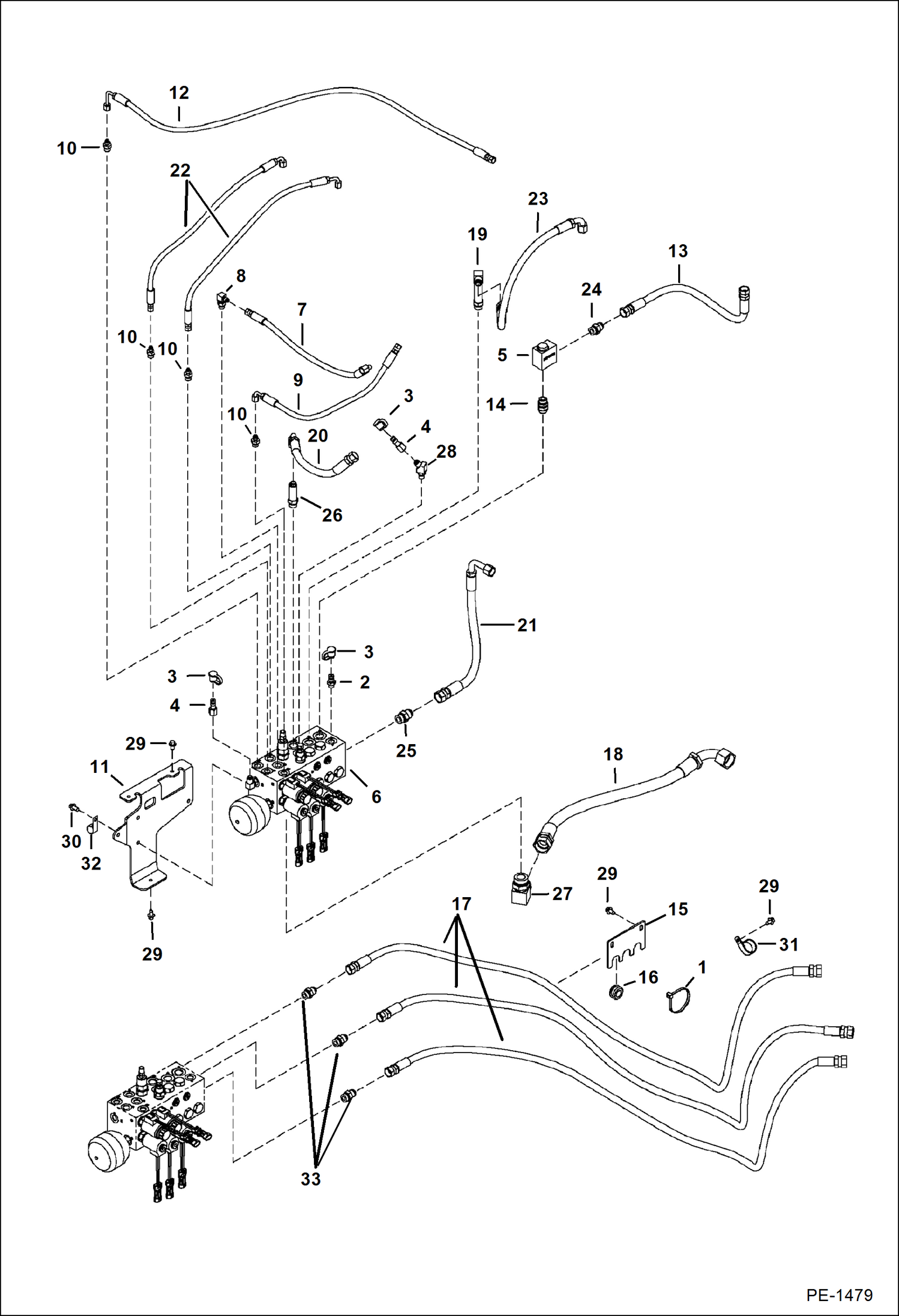

Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (S/N 232312387 & Above, 232412130 & Above) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6630168

COUPLER diagnostic

3

6630367

CAP dusts

4

6661753

PLUG diagnostic

5

6676658

VALVE assy - check

6

6685164

MANIFOLD See Illustration MANIFOLD ASSY/ MS1402 assy - Was 6678060 - A

7

6704212

HOSE

8

17KB0406

FITTING, HYD ELBOW

8

79K6

O RING 10

9

7125143

HOSE Was 6800677 - B

10

15KB0406

FTG HYD S CONNECTOR

10

79K6

O RING 10

11

6808593

MOUNT

12

6809332

HOSE

13

6809336

HOSE

14

6812822

CONNECTOR W/Ref. 34

15

6810142

PLATE

16

6810143

GROMMET

17

6810145

HOSE

18

6810219

HOSE

19

6812821

ELBOW

19

79K6

O RING 10

20

6810494

HOSE

21

6811152

HOSE

22

6809329

HOSE Was 6811153 - D

23

6811155

HOSE

24

15KB0808

FITTING, HYD CONNECTOR

24

79K8

O RING 10

25

15KB1010

FITTING, HYD CONNECTOR

25

79K10

O RING 10

26

16KB0808

FITTING, HYD CONNECTOR

26

79K8

O RING 10

27

17KB1616

FITTING, HYD ELBOW

27

79K16

O RING 10

28

18KB0606

FITTING, HYD ELBOW

28

79K6

O RING 10

29

26GM8016

SCREW

30

29CM816

SCREW

31

30H58

CLIP

32

30HJ512

CLAMP

33

15KB1008

FITTING, HYD CONNECTOR
