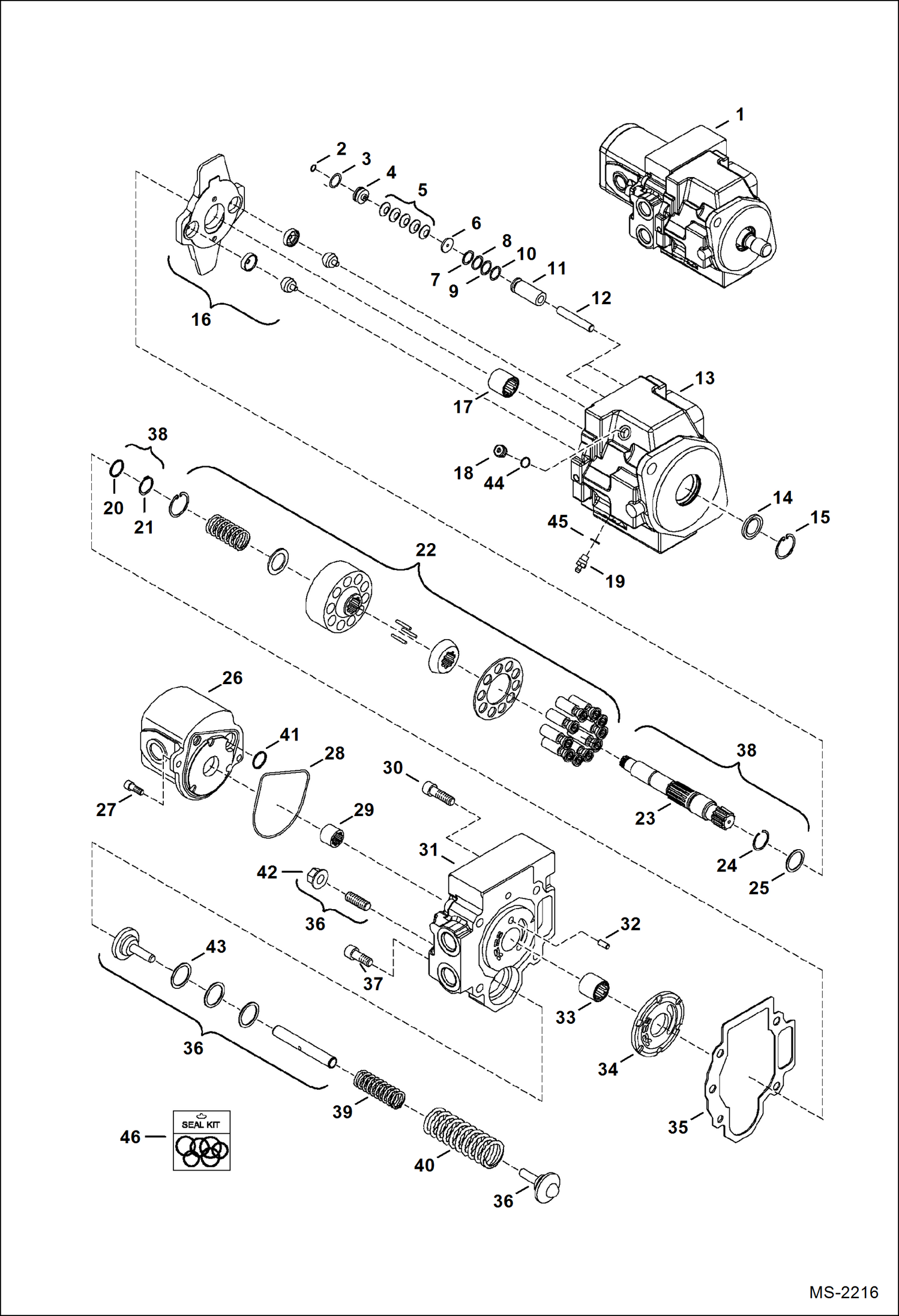

Запчасти Bobcat 325 PISTON PUMP ASSY (Modified Design) HYDRAULIC SYSTEM

1

6698074

PUMP, HYD PISTON See Illustration PISTON PUMP ASSY/ MS2213 when replacing original design for extra parts needed - R987123254 - Ref. 2-45 - Was 6687578 - A

2

6690132

ORING

3

6690131

ORING

4

6690127

PISTON

5

6690130

SPRING

6

6690129

SHIM

7

6690135

SHIM Was 6690440 - D

8

6690136

SHIM

9

6690137

SHIM

10

6690138

SHIM

11

6690133

SLEEVE

12

6690128

PIN

13

6690125

HOUSING

14

6687813

SEAL

15

6690134

RING

16

6690139

SWASH PLATE ASSY assy

17

6690126

BEARING

18

6687789

PLUG W/ O-ring

19

6687788

PLUG

20

6690118

SHIM

21

6690116

RING

22

6690140

ROTARY GRP

23

6690114

SHAFT

24

6690115

RING

25

6690117

SHIM

26

6687892

PUMP See Illustration GEAR PUMP/ MS2053

27

6678641

SCREW

28

6687898

O-RING

29

6687897

COUPLING

30

6690124

SCREW

31

6690119

PORT PLATE

32

6687795

PIN

33

6690123

BEARING

34

6690120

CONTROL PLATE

35

6690122

GASKET

36

6690141

CONTROL SPRING ASSY assy includes Ref. 39 & 40

37

6690121

SCREW

38

6690432

SHAFT ASSY Ref. 20, 21, 23-25

39

SPRING NSS - Order Ref. 36

40

SPRING NSS - Order Ref. 36

41

6687899

O-RING

42

6690440

NUT

43

6690444

SHIM 1 mm

43

6690445

SHIM .5 mm

43

6690446

SHIM .3 mm

44

O-RING NSS - W/Ref. 18

45

O-RING NSS - W/Ref. 19

46

6690701

SEAL KIT Ref. 2, 3, 14, 18, 19, 35, 41, 44, & 45
