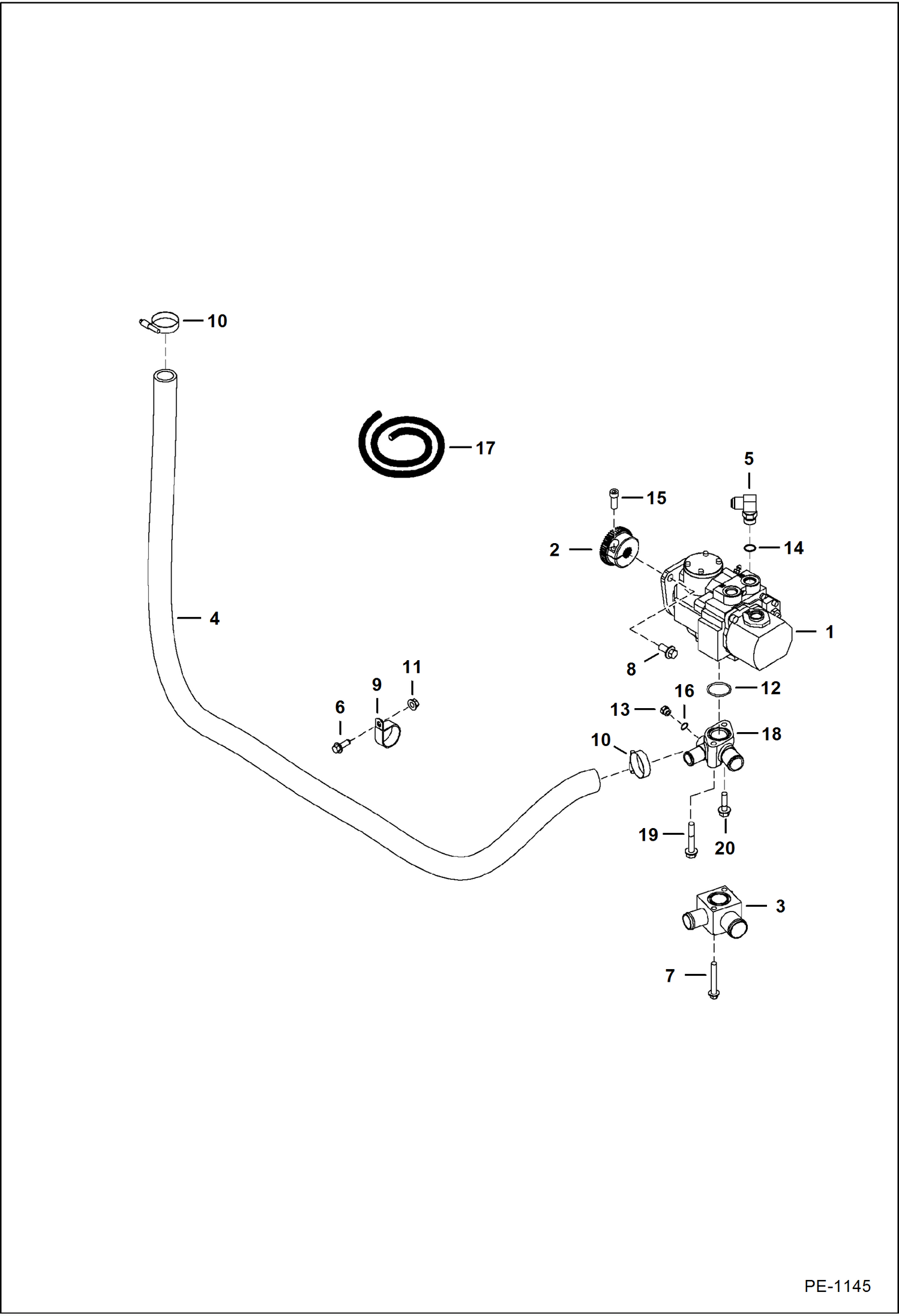

Запчасти Bobcat 325 HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

1

PUMP See Illustration PISTON PUMP ASSY/ MS2213 - A

2

6676535

COUPLER

3

6808222

MANIFOLD W/ .5625'' plug, .406'' mounting holes, & Use W/29CM1070 screws W/NLA pumps

3

MANIFOLD modified design - NLA - W/ .5625'' plug - Order 7125950 manifold, 24K6 plug, & 1CM1235 screw - Was 6816395 - A

3

MANIFOLD modified design - NLA - W/ .750'' plug - Order 7125950 manifold & 1CM1235 screw - Was 7127540 - A

4

HOSE NLA - 70'' (1778,0 mm) long - Order Ref. 17

5

ELBOW NLA - W/Ref. 14 - tapered boss - Was 17KV00007B - B

5

97K10

O-RING 10 flare end

5

17KB1010

FITTING, HYD ELBOW W/Ref. 14 - flat boss - Was 6812236 - A

6

26GM10030

BOLT

7

29CM1070

BOLT Use W/Ref.3 (NLA/ 6808222 manifold)

7

1CM1270

SCREW Use W/modified design manifolds

8

29CM1225

BOLT

9

30H85

CLAMP

10

42HC200

CLAMP

11

43DM10

NUT

12

58K222

O-RING Use W/6808222 manifold

12

58K225

O RING 10 Use W/modified design manifolds

13

90KV5

PLUG W/Ref. 16 - Use W/Ref. 3 (NLA/ 6676164 pump)

13

24K5

PLUG W/Ref. 16 (9/16'' O-ring) - Use W/Ref. 3 (6808222 manifold)

13

24K6

FITTING W/Ref. 16 (3/4'' O-ring) - Use W/ Ref. 3 (7127540 manifold) & Ref. 18 (7125950 manifold)

14

99K10

O'RING tapered boss

14

79K10

O RING 10 flat boss

15

3GM1030

SCREW

16

95K6

O'RING

16

79K6

O RING 10 9/16''

16

79K8

O RING 10 3/4''

17

6673825

HOSE bulk - sold per foot

18

1CM1270

SCREW Use W/modified design manifolds

19

1CM1235

BOLT Use W/Ref. 18 modified design

20

1CM1235

BOLT Use W/Ref. 18 modified design
