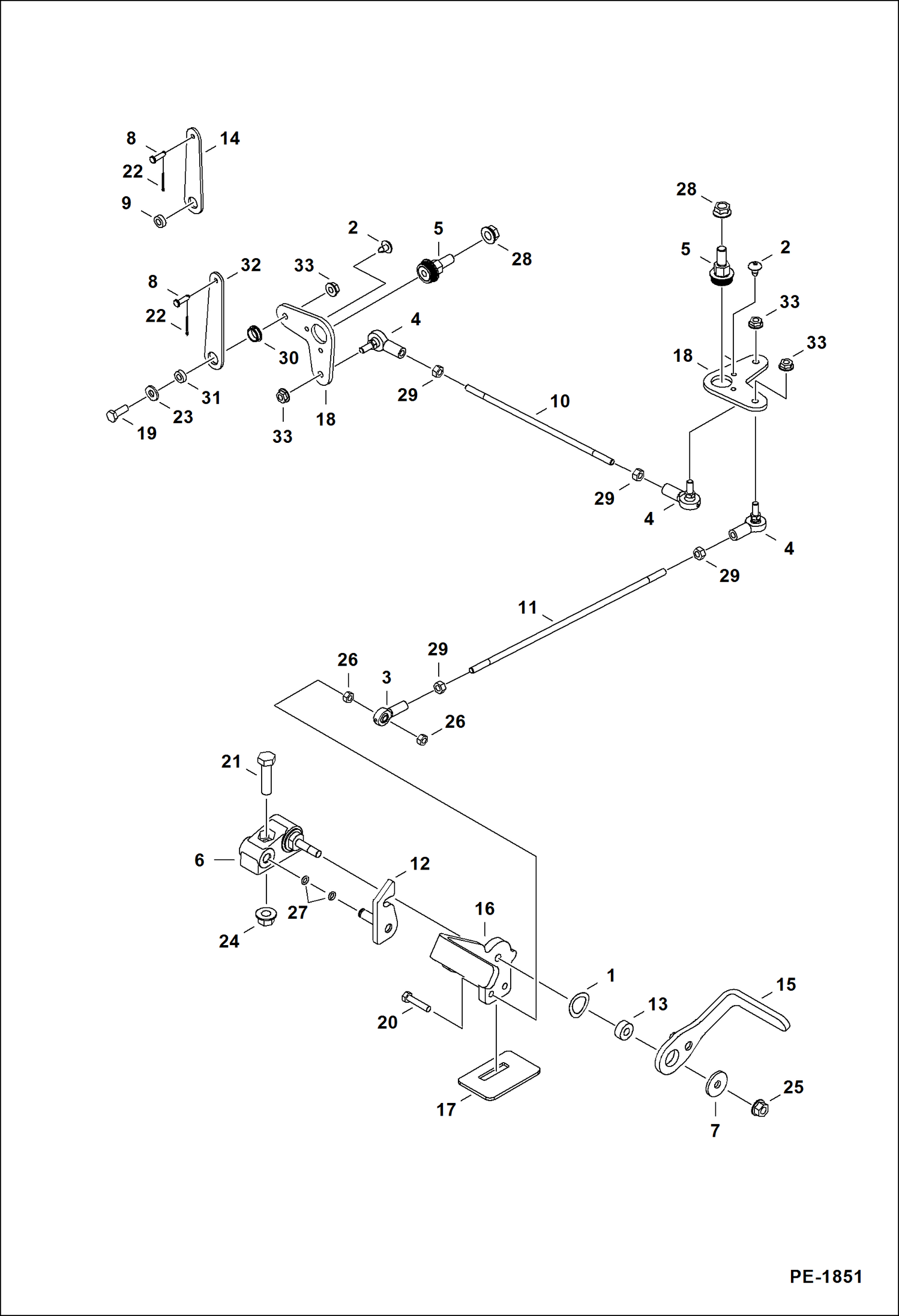

Запчасти Bobcat 325 CONTROLS (Offset) (S/N 232312834 & Above and 232412646 & Above) CONTROLS

1

6536803

WASHER wavy

2

6589675

SCREW

3

6593671

CONNECTOR

4

6631036

JOINT ball

5

6675992

BEARING

6

6677908

BEARING LH

7

6701174

WASHER flat

8

6801068

PIN

9

SPACER NLA - original design Use W/O Ref. 30 - Order Ref. 30-32 - Was 6808003 - A

10

6808004

ROD

11

6808571

ROD

12

6809194

LOCK

13

6810303

SPACER

14

LINK NLA - original design Use W/O Ref. 30 - Order Ref. 30-32 - Was 6810425 - A

15

6810508

PEDAL

16

6816109

PEDAL

17

6812070

SEAL

18

6812938

BELLCRANK

19

18C412

BOLT Was 17C412 - A

20

1CM630

BOLT

21

1CM1040

BOLT

22

1F212

PIN cotter

23

25E13

WASHER 5 flat

24

51DM10

NUT Was 43DM10 - A

25

47DM8

NUT

26

53DM6

NUT Was 1DM6 - A

27

54K20008

O-RING

28

83D6

NUT 5 Was 57D6 - A

29

62D4

NUT

30

6698186

BEARING, CLIP modified design - Use W/Ref. 31 & 32

31

7155449

SPACER modified design - Use W/Ref. 30 & 32

32

7157673

LINK, OFFSET modified design - Use W/Ref. 30 & 31

33

98D4

NUT Was 62D4
