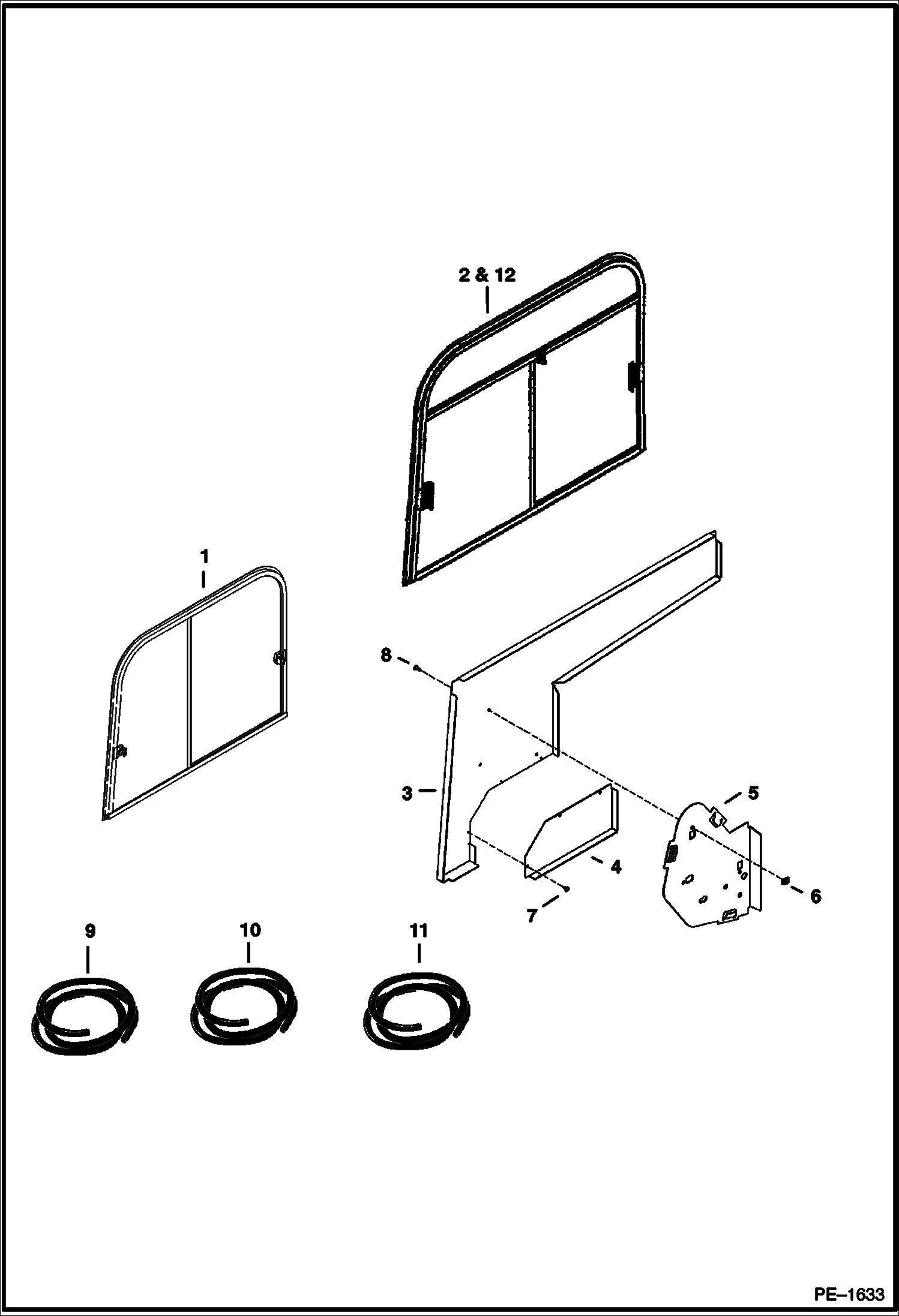

Запчасти Bobcat 325 OPERATOR CAB (RH Window) MAIN FRAME

1

WINDOW NLA - assy. - Order Ref. 2

1

6676981

WINDOW front

1

6676982

WINDOW rear

1

6677141

LATCH front

1

6677142

LATCH rear

1

SEAL NLA - bottom sliding - use 87'' (2185mm) of Ref. 9

1

SEAL NLA - sides & top use 110'' (2794mm) of Ref. 10

1

WIPER NLA - use 32'' (813mm) per window of Ref. 11

2

WINDOW NLA - assy -order 6680997 - Was 6810369 - A

2

WINDOW NLA - rear - order 683814 - Was 6678744 - A

2

WINDOW NLA - front - order 6683813 - Was 6678745 - A

2

LATCH KIT NLA - order 6683815 - Was 6679641 - A

2

SEAL NLA - bottom sliding - use 87'' (2185mm) of Ref. 9

2

SEAL NLA - sides & top use 178'' (4521mm) of Ref. 10

2

WIPER NLA - use 24'' (610mm) per window of Ref. 11

3

PANEL NLA - order 6813248 , 6813270 - Was 6808935 - A

3

PANEL NLA - Was 6813284 - A

4

6808936

PANEL

4

6813270

PANEL

5

6813271

PANEL Was 6810395 - A

6

6676026

NUT

7

6589675

SCREW

8

6803202

SCREW

9

6680147

SEAL bulk - sold per foot

10

6680146

SEAL bulk - sold per foot

11

6680148

WIPER bulk - sold per foot

12

6680997

WINDOW assy - tight sliding

12

6683813

WINDOW front

12

6683814

WINDOW rear

12

6683815

LATCH KIT Dealer must drill mounting holes
