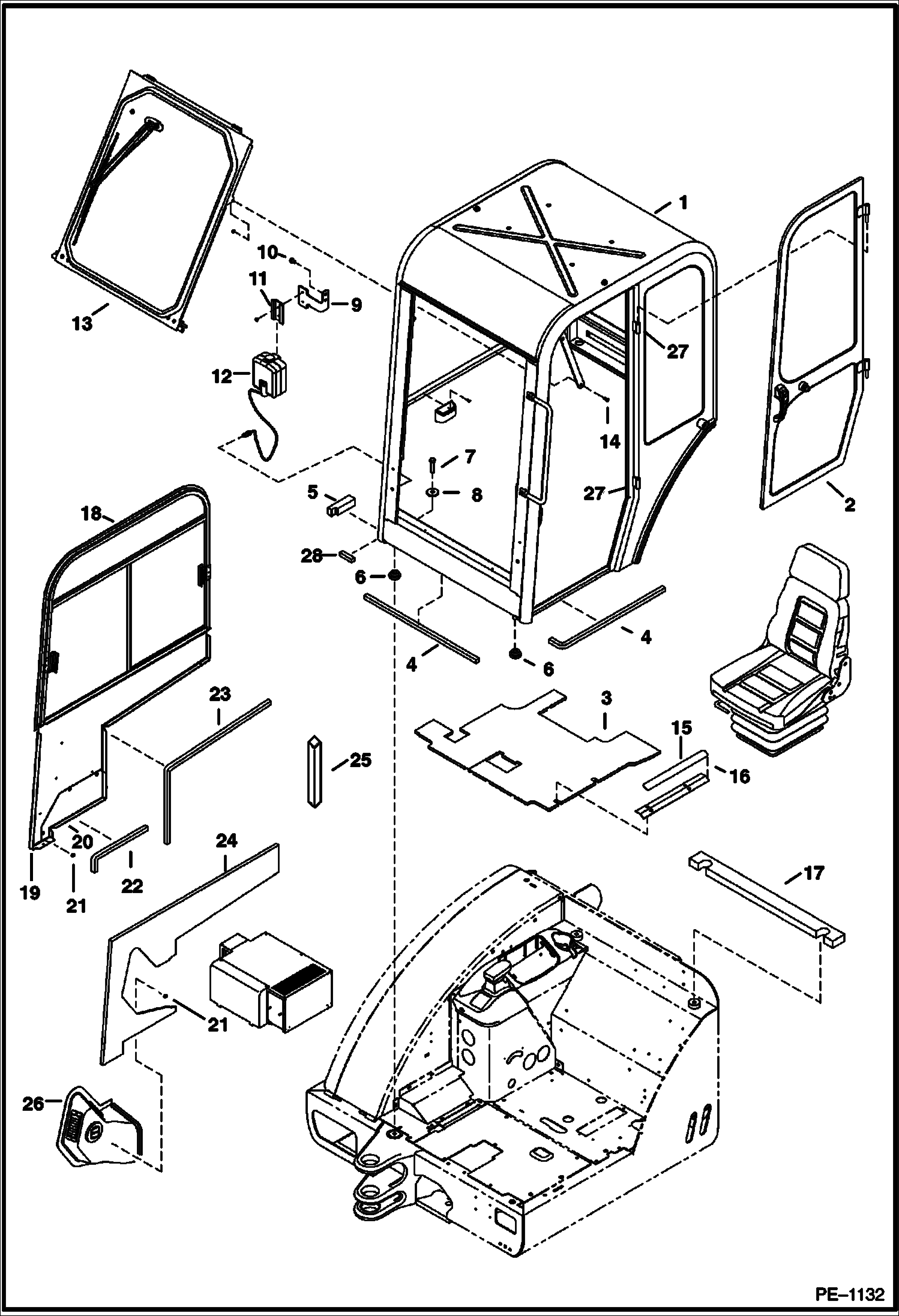

Запчасти Bobcat 325 OPERATOR CAB MAIN FRAME

1

6805882

CAB See Illustration OPERATOR CAB/ PE1084 W/A - Was 6809821 - A

2

DOOR See Illustration OPERATOR CAB/ PE1005 NLA - Order components - Was 6807782 - A

3

6809412

MAT floor

3

6809412

MAT

3

6809917

MAT floor

3

6809917

MAT

4

6808577

SEAL

5

6813361

SEAL Was 6809413 - A

6

7001052

MOUNT, ENG Was 6804026 - A

7

10CM1455

BOLT Was 10CM01460B - B

8

6805244

WASHER

9

6811947

BRACKET 2 holes W/ 2 adjustable slots - Was 6809173 - A

9

7108066

BRACKET 4 holes - Must order 7106787 Mount also - Was 6812124 - A

10

26GM10020

BOLT

11

6664557

BRACKET

12

WASHER NLA - kit - Order 6666767 nozzle, 6691499 tank assy, 6664557 bracket, & 5 feet of 6708310 bulk hose - Was 6664438 - A

12

6691499

TANK ASSY includes 6664554 pump

12

6664554

PUMP, WIPER WASHER

12

HOSE NLA - Order 5' of 6708310 bulk hose - Was 6664556 - A

12

6666767

NOZZLE Was 6664555 - A

13

WINDOW See Illustration OPERATOR CAB/ E2380 NLA - Front - Was 6807874 - A

14

6800857

BOLT shoulder

15

6807327

SAFETY TREAD

16

6807326

ANGLE

17

6809712

SEAL

18

WINDOW See Illustration OPERATOR CAB/ PE1633 R. H.

19

PANEL NLA - Was 6808935 - A

20

6808936

PANEL

21

6589675

SCREW

22

6809414

SEAL

23

6809415

SEAL

24

6809416

INSULATION

25

6809430

INSULATION Was 6809340 - D

26

DUCT NLA - Order components - Was 6810680 - A

26

6676713

LOUVER

26

6676471

LOUVER round

26

57G608

SCREW

26

DUCT NLA - order 6810680 - Was 6808516 - A

27

7149395

HINGE door - weld-on - Was 6807255 - A

28

6809491

SEAL
