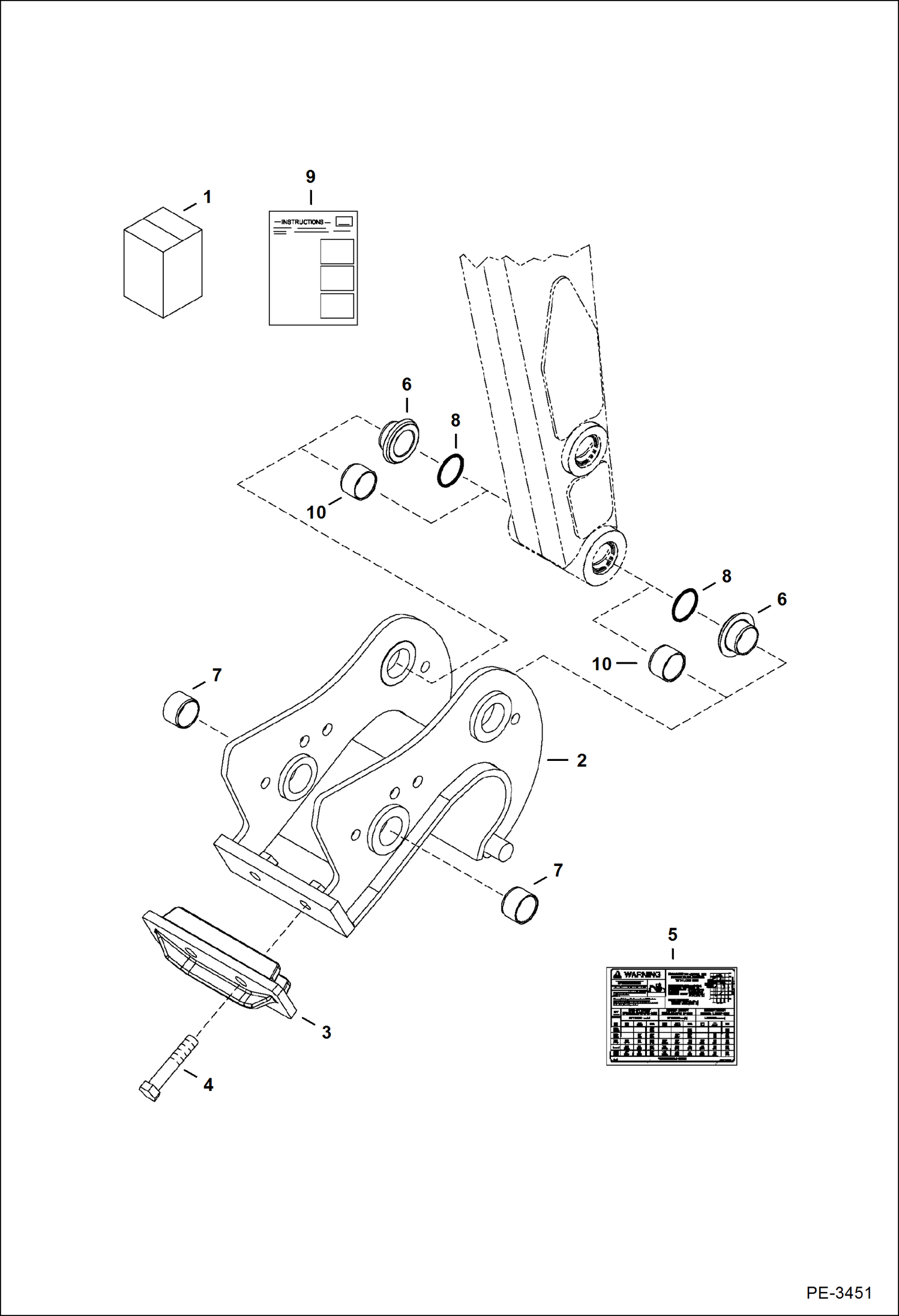

Запчасти Bobcat 325 X-CHANGE (Bolt-On) (S/N 514017052 & Above 516611767 & Above) ACCESSORIES & OPTIONS

1

KIT SALES - Bolt on X-Change - Ref. 2-9 - Sales #6813305

2

X-CHANGE See Illustration ARM/ TS1369 Ref. 19 - NLA - Order 6812423 X-Change & (2) 6813304 bushings if arm doesn't have Ref. 19 thrust washer or Order (2) 6810525 bushings & (2) 6811260 O-rings if

2

6812423

X-CHANGE Bolt on

3

6804485

PLATE

4

17C1052

BOLT

5

6806615

DECAL Lift capacity 331 W/X-Change

5

6806616

DECAL Lift capacity 331/334 of 331E W/Long arm counterweight & X-Change

5

6806896

DECAL Lift capacity 325 W/X-Change

5

6806897

DECAL Lift capacity 328 or 325 W/long arm W/X-Change

6

6813304

BUSHING See Illustration ARM/ TS1369 Ref. 19 - used on 6812423 X-Change W/arm that doesn't include Ref. 19 thrust washer

6

6810525

BUSHING, PRESS FIT See Illustration ARM/ TS1369 Ref. 19 - beveled flange - Use W/Ref. 8 on 6812423 X-Change W/arm that does include Ref. 19 thrust washer

7

6802889

BUSHING

8

6811260

O-RING See Illustration ARM/ TS1369 Ref. 19 - Use W/ 6810525 bushing on 6812423 X-Change W/arm that does include Ref. 19 thrust washer

9

6900409

INSTRUCTIONS

10

6802889

BUSHING Use W/NLA X-Change - not in kit
