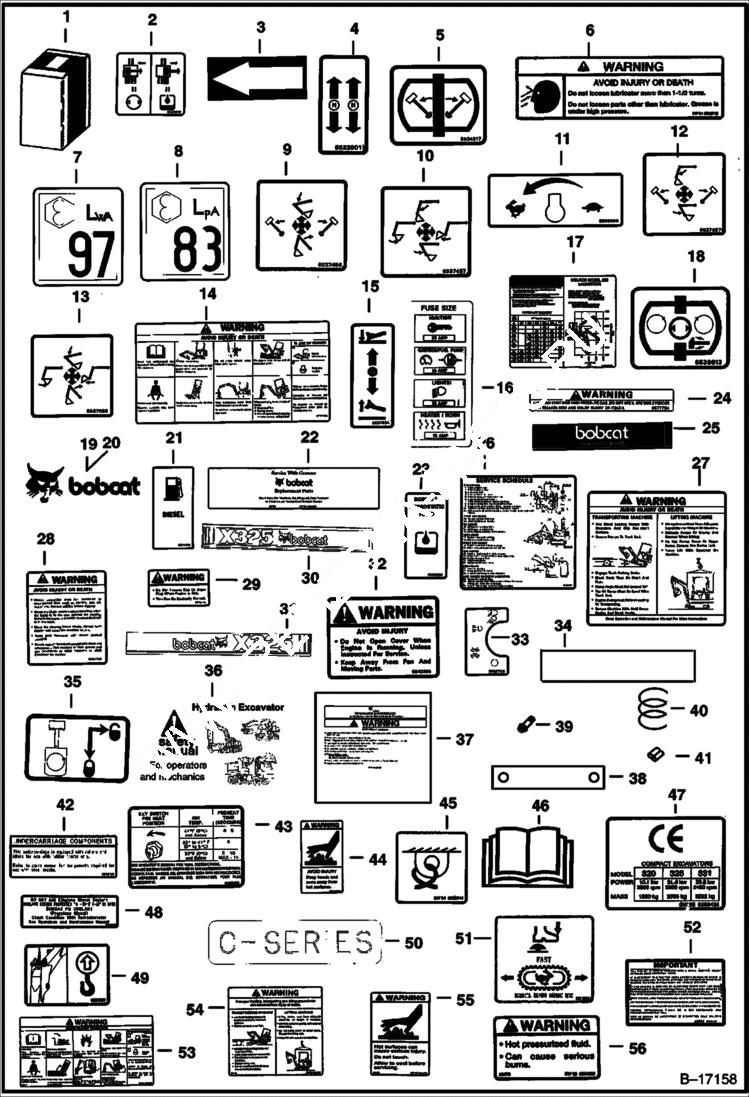

Запчасти Bobcat 325 DECALS (S/N 514013001-514014899) ACCESSORIES & OPTIONS

1

6596612

KIT, DECAL Incl. Refs. 2-6, 9-33, 35 & 42-52

1

6801248

DECAL KIT Spanish - W/Refs. 2, 6, 14, 16, 17, 21-28, 32, 42-44 & 48

2

6628802

DECAL Selector Valve

3

6533899

DECAL Arrow

4

6533901

DECAL Drive

5

6534217

DECAL Boom Swing

6

7168039

DECAL, WARNING See Illustration DECALS/ NA6216 - high pressure grease - Was 6804114 - A

6

DECAL NSS - Warning - Spanish - Order Kit 6801248

7

6535310

DECAL Noise Warning (97)

8

6579399

DECAL Noise Warning (83)

9

6589842

DECAL Control - L.H. Standard Control Pattern

10

6589843

DECAL Control - R.H. Standard Control Pattern

11

6539688

DECAL Engine Speed

12

6589741

DECAL Control - L.H. ISO Control Pattern

13

6589740

DECAL Control-R.H. ISO Control Pattern

14

DECAL NLA - Warning - Order Ref. 53 - Was 6588380 - A

14

DECAL NSS - Warning - Spanish - Order Kit 6801248

15

6537634

DECAL Blade

16

6588921

DECAL Fuse

16

DECAL NSS - Fuse - Spanish - Order Kit 6801248

17

6597227

DECAL Lift Capacity - 325

17

6805623

DECAL 325 W/Counterweight Kit

17

DECAL NSS - Lift Capacity-Spanish - Order Kit 6801248

17

6805371

DECAL Lift Capacity - 325 W/Long Arm & 328

17

6805624

DECAL lift Capacity - 325 W/Long Arm & Counterweight Kit & 328 W/ Counterweight Kit

18

6539813

DECAL Valve

19

6560986

DECAL, LOGO BOBCAT AND HEAD opposite of shown

20

6560987

DECAL Logo - Shown

21

6589739

DECAL Diesel

21

DECAL NSS - Diesel -Spanish-Order Kit 6801248

22

6565200

DECAL, FILTER

22

DECAL NSS - Filter-Spanish-Order Kit 6801248

23

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

23

DECAL NSS - Hydraulic Fluid - Spanish -Order Kit 6801248

24

6577754

DECAL, WARNING 5 gas spring

24

DECAL NSS - Warning - Spanish- Order Kit 6801248

25

DECAL NLA - Rear Logo - Was 6628509 - A

26

6628905

DECAL Service Schedule

26

DECAL NSS - Service Schedule-Spanish-Order Kit 6801248

27

DECAL NLA - Warning - Order Ref. 54 - Was 6588382 - A

27

DECAL NSS - Warning - Spanish- Order Kit 6801248

28

DECAL NLA - Warning - Order Ref. 53 & 54 - Also Order Ref. 14 & 27 - Was 6587139 - A

28

DECAL NSS - Warning - Spanish- Order Kit 6801248

29

DECAL NLA - Radiator Warning - Order Ref. 56 - Was 6643356 - A

29

DECAL NSS - Radiator Warning-Spanish-Order Kit 6801248

30

6588724

DECAL RH Model

31

6588725

DECAL LH Model

32

DECAL NSS - Warning - Order Kit 6801248

32

6720969

DECAL Warning - Spanish

33

6588730

DECAL Light

34

6593245

TREAD

35

6587247

DECAL

36

6570354

MANUAL Safety

37

6900465

HANDBOOK Operators - English

38

6589347

STRAP Elastic - For Holding the Operators Handbook

39

29CM812

BOLT

40

6558309

WIRE ROPE 46'' (1179mm) long - Bulk - Sold Per Foot - Also Order (2) of 6558310 Sleeve

41

6558310

SLEEVE

42

6589129

DECAL Track, Rubber

42

DECAL NSS - Track, Rubber - Spanish - Order Kit 6801248

43

6589059

DECAL Pre-Heat

43

DECAL NSS - Pre-Heat - Spanish- Order Kit 6801248

44

DECAL NLA - Warning - Order Ref. 55 - Was 6589697 - A

44

DECAL NSS - Warning - Spanish - Order Kit 6801248

45

6727595

DECAL Was 6595014 - B

46

6707971

DECAL Operators Manual

47

6596424

DECAL CE - Not Used on Models Sold in the U.S.

48

6708929

DECAL, COOLANT propylene glycol

48

DECAL NSS - PG coolant - Spanish - Order Kit 6801248

49

6594897

DECAL Boom Lift

50

6708207

DECAL C Series

51

6804116

DECAL Two Speed Travel - Was 6801914 - A

52

6560573

DECAL spark arrestor

53

6807776

DECAL warning - Was 6804230 - A

54

6804231

DECAL warning

55

6804232

DECAL warning

56

6804233

DECAL warning
