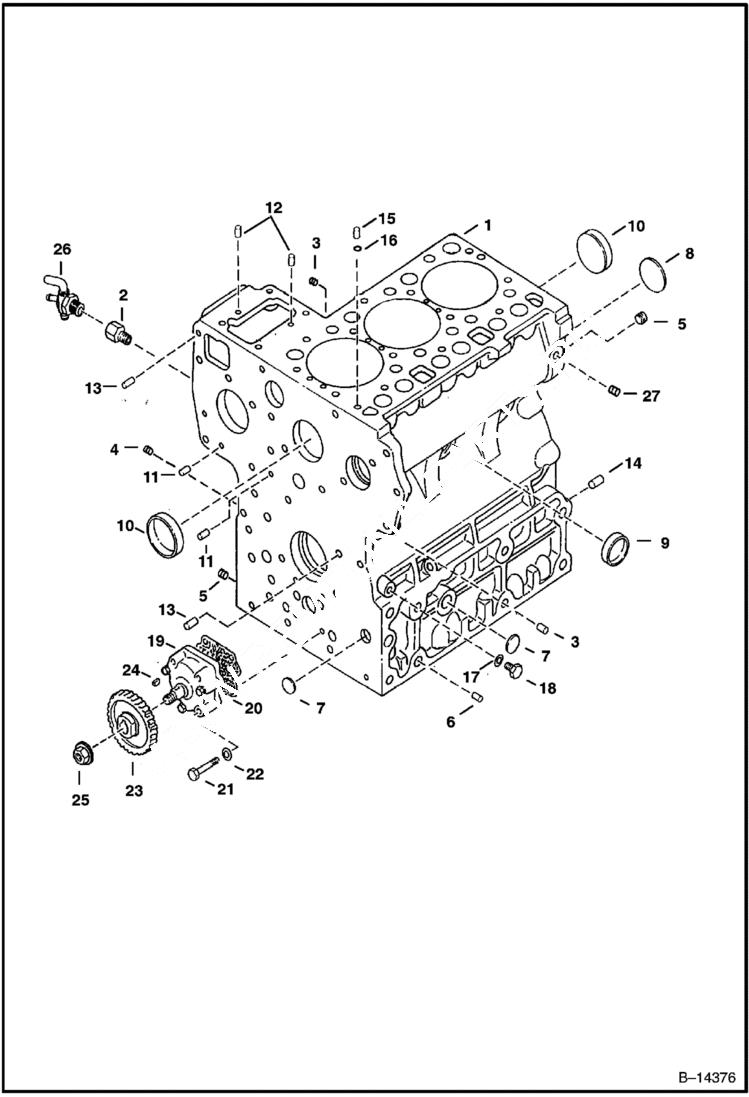

Запчасти Bobcat 325 CRANKCASE (Tier I engine) POWER UNIT

1

6667377

CRANKCASE Assy. - W/Ref. 2 - 15

1

7001489

BLOCK, ENG Assy. - W/Ref. 2 - 15

2

3974871

CONNECTOR

3

6652574

PLUG

4

6655869

PLUG

5

6652575

PLUG

6

6598187

PLUG

7

6667418

PLUG Expansion

8

4FM45

PLUG Expansion

9

3974389

CAP, SEALING Sealing

10

3974390

PLUG Sealing

11

3974393

PIN straight

12

3974394

PIN Straight

13

3974395

PIN Straight

14

3974868

PIN Straight

15

3974037

PIN Pipe

16

3974038

O RING

17

3974095

MET-GASK

18

6655884

PLUG

19

6689441

PUMP, OIL ENG Was 3975426 - A

20

6666782

GASKET

21

6655195

BOLT

22

6667419

WASHER

23

3975441

GEAR, CAMSHAFT

24

6969805

KEY,FEATHER Was 15JM00410B - A

25

6653888

NUT

26

6672190

DRAINCOCK Was 3975447B - A

27

3974399

PLUG Was 6672190 - D
