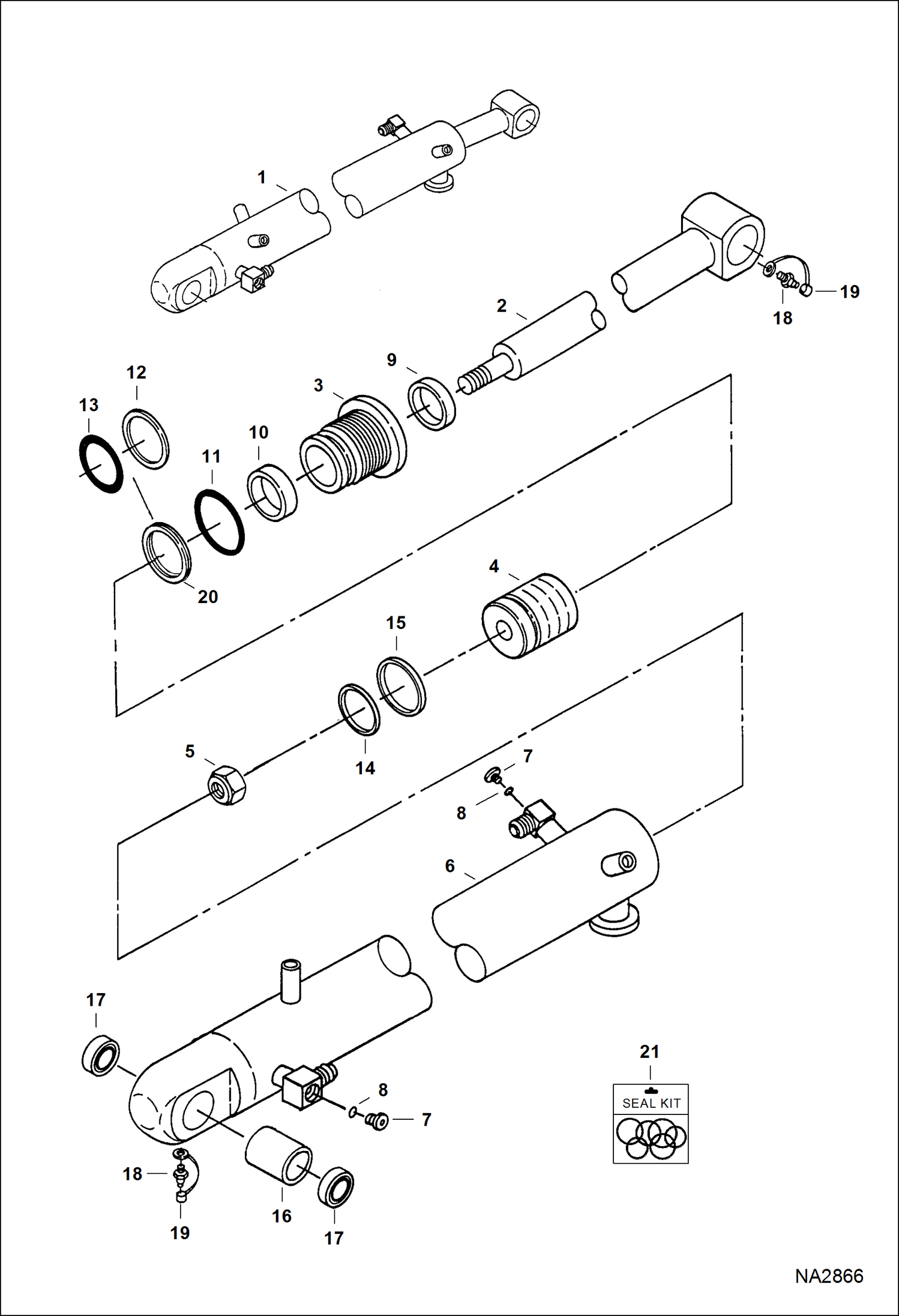

Запчасти Bobcat 325 BOOM CYLINDER (S/N 514016144 & Above and 516611218 & Above) HYDRAULIC SYSTEM

1

6810499

CYLINDER W/Refs. 2 - 15 - Also order Ref. 16 & (2) 17 - Was 6806741

2

6810500

ROD Was 6804429 - A

3

6804427

HEAD, CYL LIFT

4

6804426

PISTON

5

6810539

NUT Was 6804592 - A

6

6806212

HOUSING Also order Refs. 16 & (2) 17 - Was 6804430 - A

7

90KV5

PLUG W/Ref. 8

8

99K6

O RING

9

6687000

WIPER ROD wiper - Was 6669268 - A

10

6669267

SEAL

11

25K40224

O RING 10 Was 54K40224 - B

12

73K232

RING, BACK-UP back-up - Was 80K232 - A

13

58K234

O RING 10 Was 54K40300 - B

14

25K30218

O RING 10 Was 54K30218 - B

15

947088

RING, BACK-UP piston

16

6803678

BUSHING

17

6652915

SEAL, OIL dust

18

10H25

FITTING, GREASE 5

19

6652943

COVER grease fitting

20

7008355

SEAL, QUAD

21

7137939

KIT, SEAL Ref. 5 & 9-15 - Was 6816536 - A
