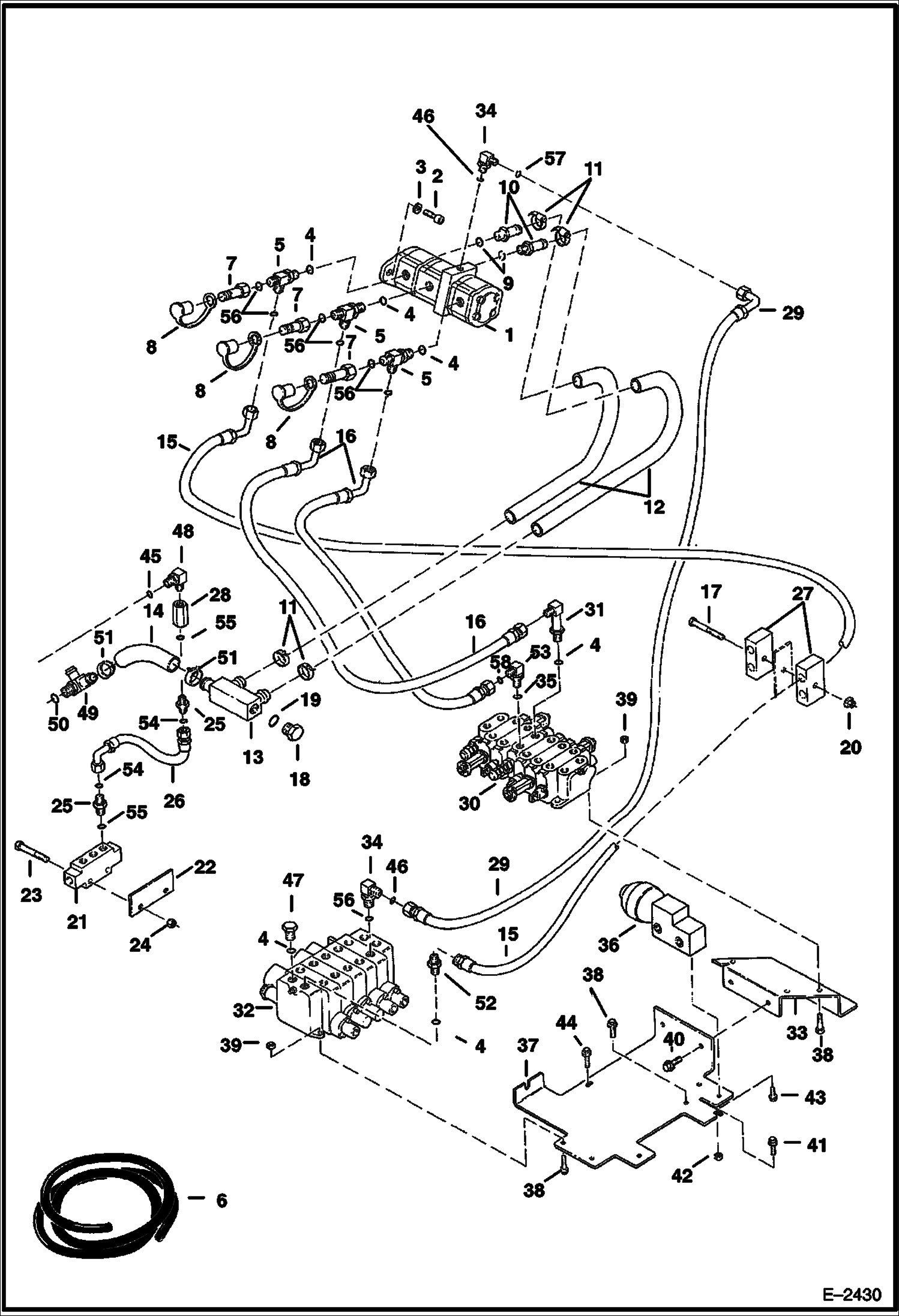

Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (Tank To Pump To Valves) (S/N 514014900 & Above and 516611001 & Above) HYDRAULIC SYSTEM

1

6676971

PUMP, GEAR TRIPLE See Illustration GEAR PUMP/ B18150 - (4 bolt flange) - Also order 6807346 tee (3), 58K000210B o-ring (3), 73G000520B bolt (12), 4E000005B Washer (12), 19J000008B clamp (6) - Was 6674

2

3GM1025

BOLT

3

15EM100

WASHER

4

79K10

O RING 10

5

TEE NLA - W/Ref. 56 & 58 - Was 6805165 - A

5

21KB0810

FITTING, HYD TEE W/Ref. 58

5

97K8

O-RING

6

6673825

HOSE bulk - sold per foot - Was 1310909B - A

7

6646635

COUPLER Diagnostic

8

6630367

CAP

9

79K16

O RING 10

10

6587972

FITTING W/Ref. 9

11

5HM40

HOSECLAMP

12

6803822

HOSE Formed

13

6537505

MANIFOLD Supply

14

HOSE NLA - 37 inch (940mm) long - Order Ref. 6

15

HOSE NLA - Order 6803853 hose & 6805208 elbow - Was 6803850 - A

15

6800960

HOSE Was 6805209 - A

16

6803853

HOSE

17

1CM8100

SCREW

18

24K8

PLUG W/Ref. 19

19

79K12

O RING 10

20

51DM8

NUT

21

6675142

BLOCK Was 6667830 - A

22

6628721

PLATE

23

1CM870

BOLT

24

4DM8

NUT

25

15K5

FITTING W/Ref. 45

25

15KB0606

FITTING, HYD CONNECTOR W/Ref. 54 & 55

26

6628780

HOSE

27

6715197

CLAMP

28

6667552

FILTER In-line

29

6803852

HOSE

30

6670322

VALVE See Illustration CONTROL VALVE/ D2338 - Control

31

6805208

ELBOW W/Ref. 4 - Was 6519195 - A

32

6670321

VALVE See Illustration CONTROL VALVE/ D2339 - Control

33

6628423

PLATE

34

17K6

ELBOW W/Ref. 46 - flat boss face

34

ELBOW NLA - W/Ref. 56 & 57 - tapered boss face - Was 17KN00006B - A

34

17KB0808

FITTING, HYD ELBOW W/Ref. 46 - flat boss face

35

99K10

O'RING

36

VALVE See Illustration ACCUMULATOR VALVE/ C3418 - NLA - accumulator - order 6675141 - Was 6667819 - A

36

6675141

VALVE See Illustration ACCUMULATOR VALVE/ B17155 - Accumulator

37

6628388

PLATE

38

1CM1030

BOLT

39

4DM10

NUT

40

26GM10020

BOLT

41

29CM1025

BOLT

42

51DM10

NUT

43

1CM816

BOLT

44

29CM1020

BOLT

45

79K6

O RING 10

46

79K8

O RING 10

47

24K7

PLUG W/Ref. 4

48

6558510

ELBOW W/Ref. 46

49

6596791

TEE W/Ref. 50

50

79K20

O RING 10

51

5HM44

CLAMP

52

6715184

ADAPTER W/Ref. 4 - Use W/NLA 6803850 Hose

52

6805208

ELBOW W/Ref. 4 - Use W/Hose 6805209

53

FITTING NLA - W/Ref. 35 & 58 - tapered boss face - Was 17KN7 - A

53

17KB1010

FITTING, HYD ELBOW W/Ref. 4 - flat boss face

54

97K6

O RING

55

99K6

O RING

56

99K8

O-RING

57

96K8

O-RING

58

96K10

O-RING
