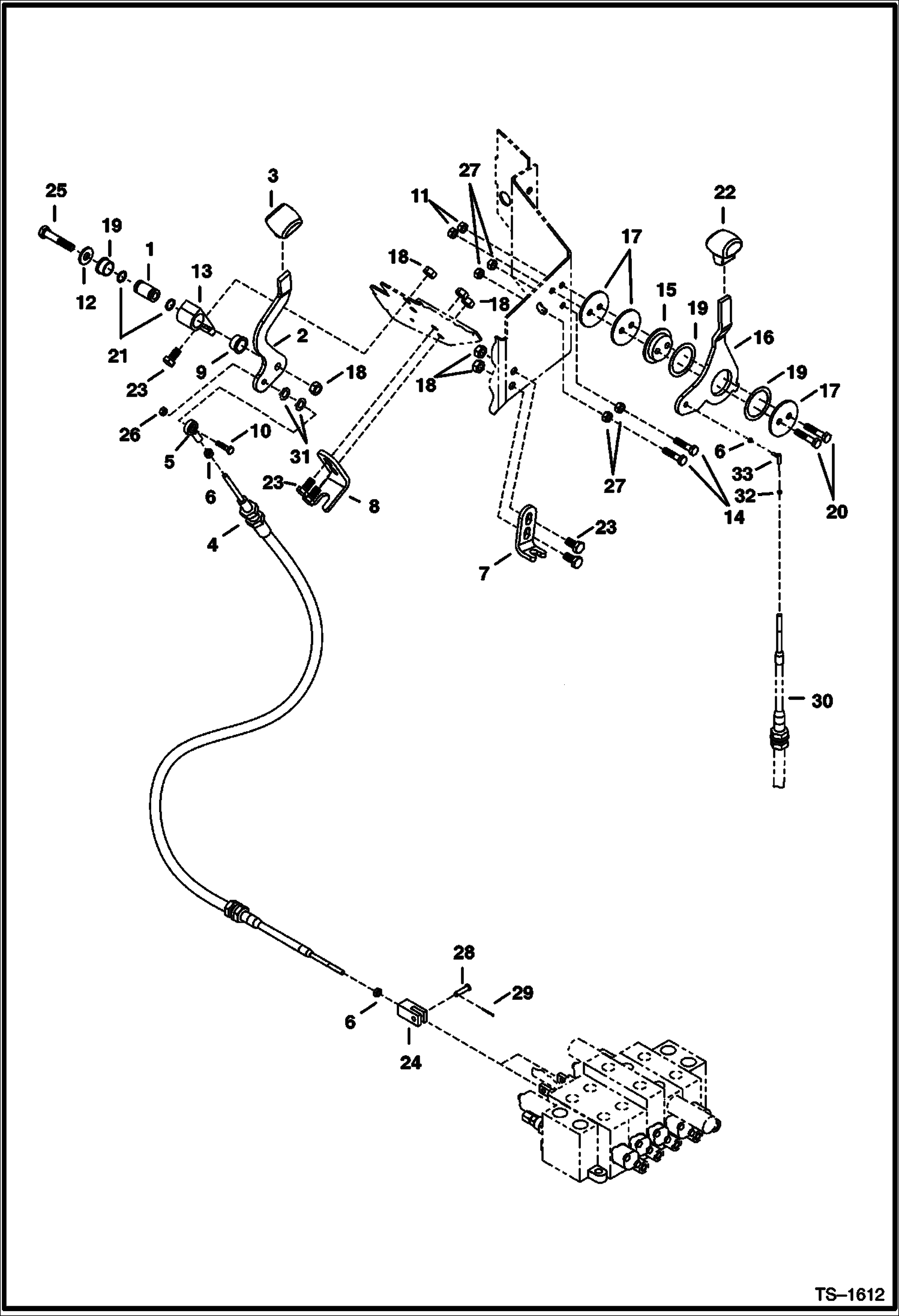

Запчасти Bobcat 325 BLADE & SPEED CONTROLS (S/N 514014900 & Above and 516611001 & Above) CONTROLS

1

6536545

SLEEVE

2

6802658

LEVER Blade

3

6802567

KNOB

4

6657715

CABLE Blade Control - Was 6669603 - D

5

6593671

CONNECTOR

6

62D4

NUT

7

6802654

MOUNT

8

6802659

MOUNT

9

6536801

BUSHING

10

1CM625

BOLT

11

53DM8

NUT

12

27E6

WASHER 5

13

6537481

MOUNT

14

1CM835

BOLT

15

6567963

SPACER

16

6802653

LEVER Speed Control

17

6534807

PLATE

18

53DM10

NUT

19

6630945

WASHER Wave

20

1CM840

BOLT

21

58K015

O-RING 10

22

6803200

KNOB

23

1CM1020

BOLT

24

6800264

YOKE

25

1CM1055

BOLT

26

1DM6

NUT Was 4DM6 - A

27

4DM8

NUT

28

6536543

PIN Dowel

29

1F212

PIN

30

See Illustration ENGINE MOUNTING, FLYWHEEL & STARTER/ TS1590 speed control

31

25E13

WASHER 5

32

14D10

NUT

33

6644965

BALL JOINT
